3.4.1.4 Strain Release

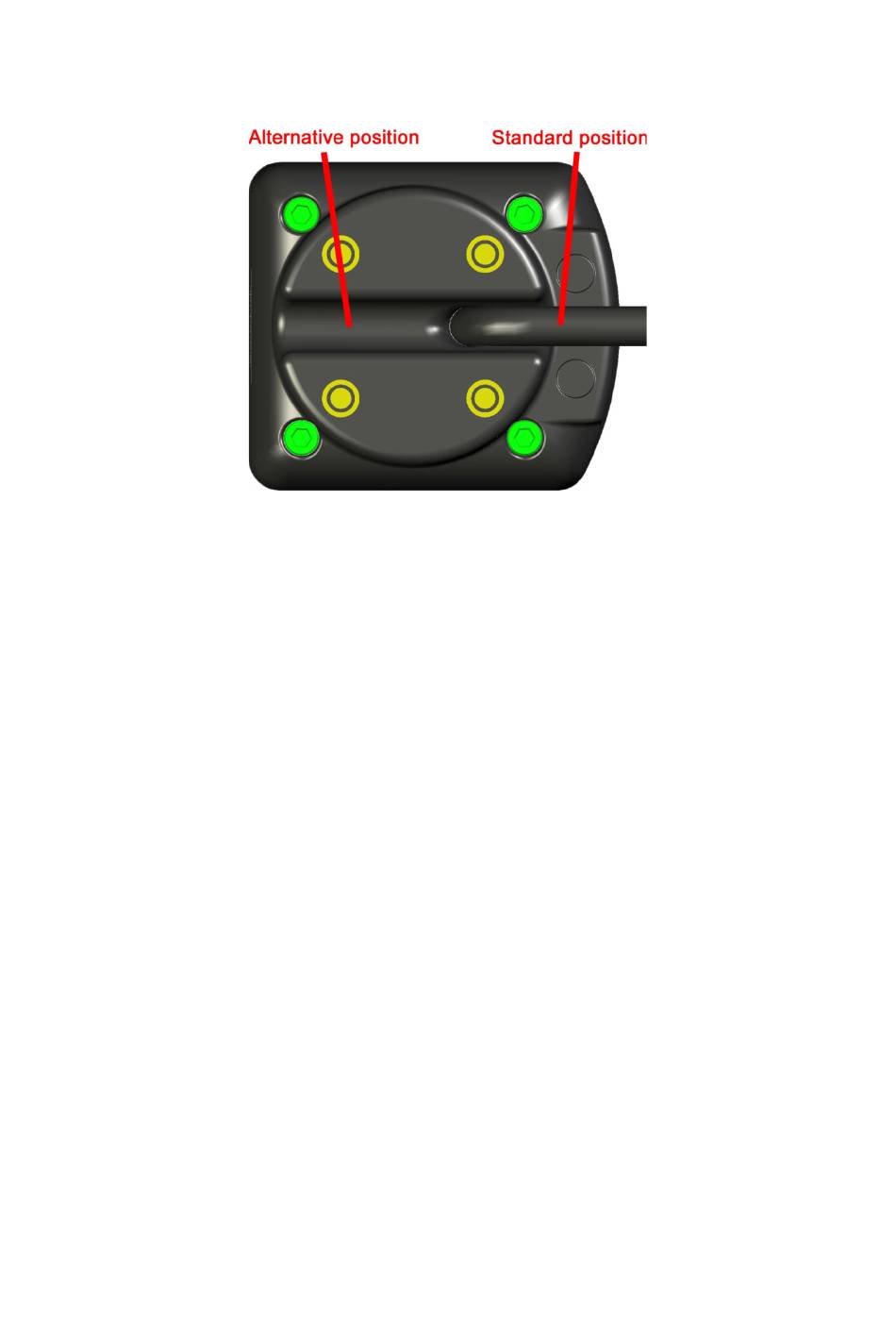

The strain release can be mounted in different way. The picture shows the standard
mounting position and the alternative positions.
3.4.2 Power Module and ICS Mounting
Contact Permobil Europe BV if you need further advice and information.
3.4.3 Cables
The cables to the different modules must be routed and secured in such a way as to
prevent damage to them, for example by cutting or crushing.
Contact Permobil Europe BV if you need further advice.
Page: 13/19
User manual Compact Joystick R-net
Document number: 205310-UK-0 Edition 2 2009-11
