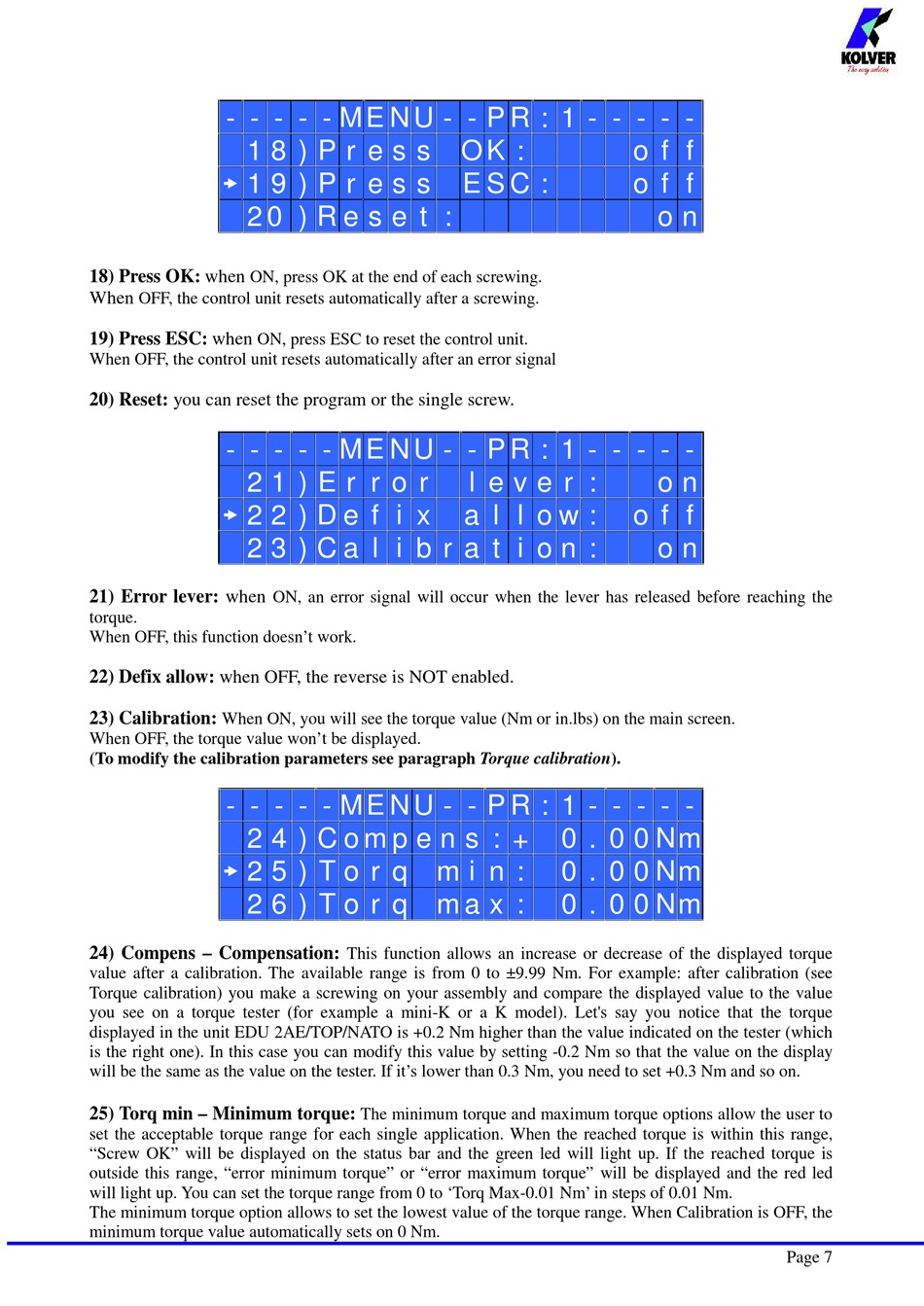

Kolver EDU 2AE/TOP/NT Manual page 7

- - - - - M E N U - - P R : 1 - - - - -
1 8 ) P r e s s
1 9 ) P r e s s

2 0 ) R e s e t :
18) Press OK: when
ON, press OK at the end of each screwing.
When
OFF, the control unit resets automatically after a screwing.
19) Press ESC: when
ON, press ESC to reset the control unit.
When OFF, the control unit resets automatically after an error signal
20) Reset: you can reset the program or the single screw.
- - - - - M E N U - - P R : 1 - - - - -
2 1 ) E r r o r
 2 2 ) D e f i x
2 3 ) C a l i b r a t i o n :
21) Error lever: when
torque.
When OFF, this function doesn't work.
22) Defix allow: when OFF, the reverse is NOT enabled.
23) Calibration:
When ON, you will see the torque value (Nm or in.lbs) on the main screen.
When OFF, the torque value won't be displayed.
(To modify the calibration parameters see paragraph Torque calibration).
- - - - - M E N U - - P R : 1 - - - - -
2 4 ) C o m p e n s : +
 2 5 ) T o r q m i n :
2 6 ) T o r q m a x :
24) Compens – Compensation:
value after a calibration. The available range is from 0 to ±9.99 Nm. For example: after calibration (see
Torque calibration) you make a screwing on your assembly and compare the displayed value to the value
you see on a torque tester (for example a mini-K or a K model). Let's say you notice that the torque
displayed in the unit EDU 2AE/TOP/NATO is +0.2 Nm higher than the value indicated on the tester (which
is the right one). In this case you can modify this value by setting -0.2 Nm so that the value on the display
will be the same as the value on the tester. If it's lower than 0.3 Nm, you need to set +0.3 Nm and so on.
25) Torq min – Minimum torque:
set the acceptable torque range for each single application. When the reached torque is within this range,
"Screw OK" will be displayed on the status bar and the green led will light up. If the reached torque is
outside this range, "error minimum torque" or "error maximum torque" will be displayed and the red led
will light up. You can set the torque range from 0 to 'Torq Max-0.01 Nm' in steps of 0.01 Nm.
The minimum torque option allows to set the lowest value of the torque range. When Calibration is OFF, the
minimum torque value automatically sets on 0 Nm.
ON, an error signal will occur when the lever has released before reaching the
This function allows an increase or decrease of the displayed torque
The minimum torque and maximum torque options allow the user to
O K : o f f
E S C : o f f
l e v e r :
a l l o w : o f f
0 . 0 0 Nm
0 . 0 0 Nm
0 . 0 0 Nm
o n
o n
o n
Page 7
