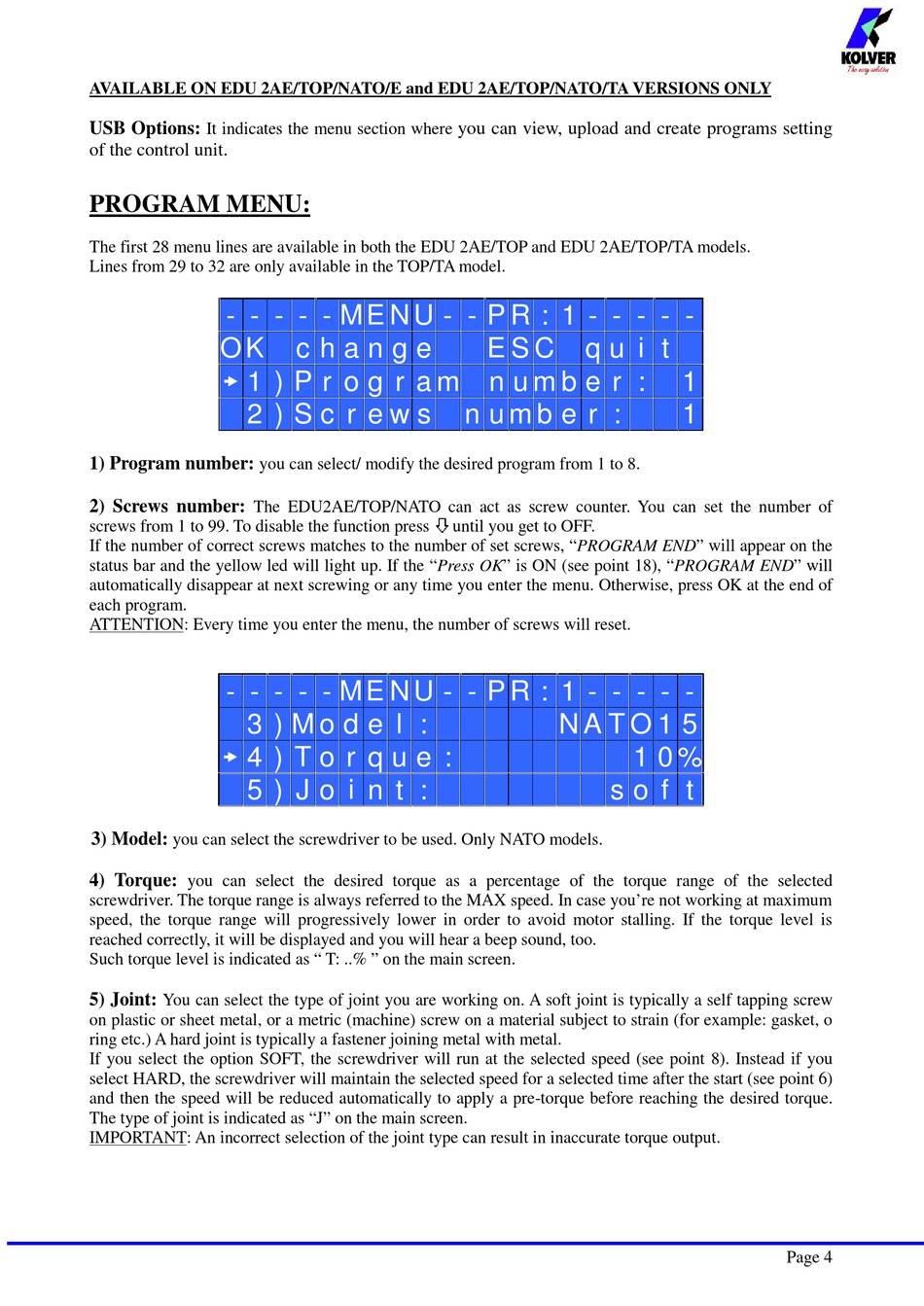

AVAILABLE ON EDU 2AE/TOP/NATO/E and EDU 2AE/TOP/NATO/TA VERSIONS ONLY
USB Options:
It indicates the menu section where
of the control unit.

PROGRAM MENU:

The first 28 menu lines are available in both the EDU 2AE/TOP and EDU 2AE/TOP/TA models.
Lines from 29 to 32 are only available in the TOP/TA model.
- - - - - M E N U - - P R : 1 - - - - -
O K
 1 ) P r o g r a m n u m b e r :
2 ) S c r e w s
1) Program number:
you can select/ modify the desired program from 1 to 8.
2) Screws number:
The EDU2AE/TOP/NATO can act as screw counter. You can set the number of
screws from 1 to 99. To disable the function press
If the number of correct screws matches to the number of set screws, "PROGRAM END" will appear on the
status bar and the yellow led will light up. If the "Press OK" is ON (see point 18), "PROGRAM END" will
automatically disappear at next screwing or any time you enter the menu. Otherwise, press OK at the end of
each program.
ATTENTION: Every time you enter the menu, the number of screws will reset.
- - - - - M E N U - - P R : 1 - - - - -
3 ) M o d e l :
4 ) T o r q u e :

5 ) J o i n t :
3) Model:
you can select the screwdriver to be used. Only NATO models.
4) Torque:
you can select the desired torque as a percentage of the torque range of the selected
screwdriver. The torque range is always referred to the MAX speed. In case you're not working at maximum
speed, the torque range will progressively lower in order to avoid motor stalling. If the torque level is
reached correctly, it will be displayed and you will hear a beep sound, too.
Such torque level is indicated as " T: ..% " on the main screen.
5) Joint:
You can select the type of joint you are working on. A soft joint is typically a self tapping screw
on plastic or sheet metal, or a metric (machine) screw on a material subject to strain (for example: gasket, o
ring etc.) A hard joint is typically a fastener joining metal with metal.
If you select the option SOFT, the screwdriver will run at the selected speed (see point 8). Instead if you
select HARD, the screwdriver will maintain the selected speed for a selected time after the start (see point 6)
and then the speed will be reduced automatically to apply a pre-torque before reaching the desired torque.
The type of joint is indicated as "J" on the main screen.
IMPORTANT: An incorrect selection of the joint type can result in inaccurate torque output.
you can view, upload and create programs setting
c h a n g e
n u m b e r :
until you get to OFF.
E S C q u i t
N A T O 1 5
1 0 %
s o f t
1
1
