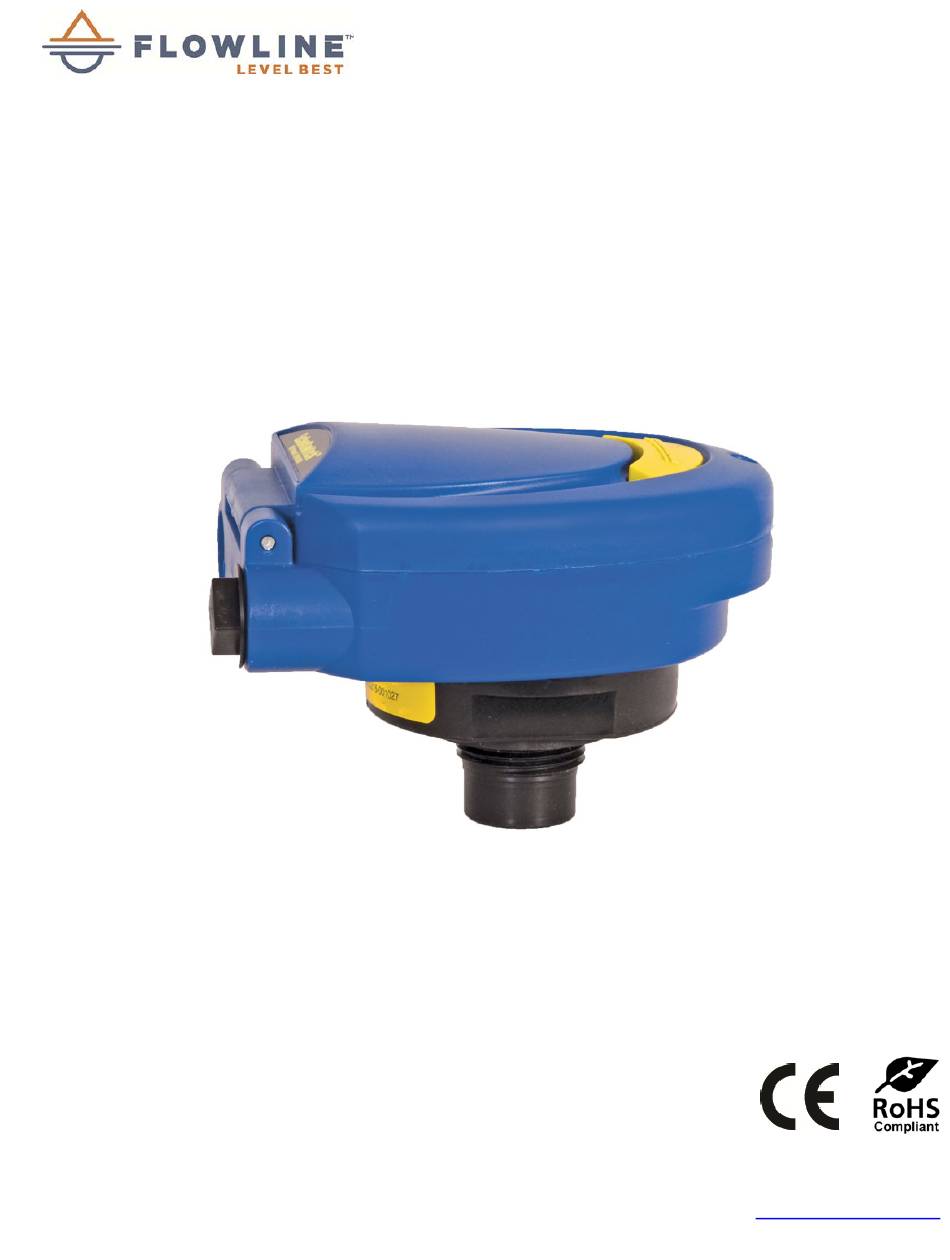

EchoSonic® II
Ultrasonic Level Transmitter
LU27 Series Quick Start
NEMA 4X Enclosure
Tel: 562.598.3015 • Fax: 562.431.8507 • www.flowline.com
10500 Humbolt Street, Los Alamitos, CA 90720 USA
1
Advertisement
Related Manuals for FlowLine EchoSonic II LU27 Series
Summary of Contents for FlowLine EchoSonic II LU27 Series
- Page 1 LU27 Series Quick Start NEMA 4X Enclosure QS300116 Rev C1 ©2019 Flowline, Inc. All Rights Reserved 10500 Humbolt Street, Los Alamitos, CA 90720 USA Made in USA Tel: 562.598.3015 • Fax: 562.431.8507 • www.flowline.com 1 ...
- Page 2 The EchoSonic® II quick start is meant to show some of the more common setup solutions to getting the EchoSonic® II up and running quickly. If you run into an issue that is not addressed here or wish to install or set up with a non‐standard configuration, please address the EchoSonic® II Manual or refer to the Flowline website at www.flowline.com. We Do Your Level Best ...
- Page 3 Configuring the EchoSonic® II Configuration of your sensor should be performed prior to mounting, since it requires connection to your PC. Step 1: Install the WebCal Software Download WebCal from www.flowline.com/webcal‐software onto a PC with the following minimum specifications: Windows® XP/Vista/7/8, 10 MB storage space, 256 MB RAM, 1 USB 2.0 port Double‐click the WebCal icon to install before proceeding to Step 2. You must have an active Internet connection to install WebCal, as it will automatically verify driver updates. Step 2: Connect the USB Fob NOTE: Do not connect the Fob until after you’ve installed WebCal. The sensor communicates to its configuration software through the USB Fob. Prior to ...
- Page 4 Step 3: Configure through WebCal These instructions will walk you through configuration of the sensor through WebCal. For more information, click the WebCal HELP button in the lower right corner or anywhere on the WebCal screen or refer to the EchoSonic® II manual found at www.flowline.com/webcal‐software. WebCal Configuration Screen 4 ...
- Page 5 Using the drop‐down menus on the left of the WebCal screen set the configuration for your application requirements. When a selection does not apply to your application, “Not Applicable” will appear in the drop‐down. Make sure all drop‐downs are set appropriately for your application before moving to the Tank Level section. Loop Fail Safe. Use this setting to choose the output level should the sensor not receive an echo. ...
- Page 6 Enter the appropriate tank level set points for your application. Units. Display measurements in inches or centimeters. Sensor Height. Distance measured from the bottom of the empty tank to the bottom of the transducer. Under factory configuration, this becomes the 4 mA set point. Fill Height. Distance measured from the bottom of the empty tank to the maximum fill height within the tank. Under ...
- Page 7 The Advanced button is used for options available when setting up the sensor with special, non‐standard features. Many of these features are available for specific applications that may change from time to time. Consult WebCal's HELP file for the latest information on the use of any of these features. The more commonly used Advanced features are the Invert Relay and Increase Output Filtering described below. Increase Output Filtering. Select this radio button to add additional filtering to the 4‐20 ...
- Page 8 Note: While installations directly into a 1”metal fitting are not recommended, acceptable results may be obtained if the 1” fitting is a half coupling in form and the outer diameter of the coupler is tightly wrapped in vinyl tape to dampen vibrations. For installations in open tanks and sumps: LM52‐1850 1) Use Flowline's LM50‐1001‐1 side mount bracket. Note: The Side Mount Bracket (LM50 series) is not designed for use with stand pipes or as a method to secure stand pipes. There are too few threads to properly hold the sensor and the stand pipe. LM50‐1001 ...
- Page 9 Mounting with a Stand‐Pipe: A stand‐pipe may be used to dampen turbulence, separate surface foam from the point of measurement or increase performance in heavy vapor. When mounting the sensor in a stand‐pipe, the minimum diameter of the pipe is 2”. Larger diameter pipes can be used. The pipe should be attached with a coupling and reducer bushing. The pipe length should run the measurement span and the bottom of the pipe should remain submerged at all times to prevent foam from entering the pipe. Cut the bottom end of the pipe at 45° and drill a 1/4”pressure ...
- Page 10 Wiring the EchoSonic® II After mounting the sensor, make the necessary electrical connections. A wiring diagram with specific recommendations for the sensor’s configuration can be printed from the WebCal program. A typical wiring diagram is shown on the next page. Red (Power) and Black (Return) leads are for connection to a 24 VDC power supply or to a 4‐20 mA loop power source. The red and black wires can be extended more than 1000 feet using 22‐gauge or larger wire, however do not extend the green and white wires. White (Tx) and Green (Rx) leads are reserved for use with WebCal and should not be connected during usage in the application. These wires should not be connected to WebCal while power is supplied from any source other than the LI99‐2001 Fob. ...
- Page 11 Wiring the EchoSonic® II The following wiring diagram can be used when wiring to the EchoSonic® II relays. Typical Wiring Diagram Your WebCal Wiring Diagram may vary. General notes for electrical connections, usage and safety: Where personal safety or significant property damage can occur due to a spill, the installation must have a redundant backup safety system installed. Wiring should always be completed by a licensed electrician. Supply voltage should never exceed 28 VDC. Protect the sensor from excessive electrical spikes by isolating the power, whenever possible. The sensor materials must be chemically compatible with the liquids to be measured. Design a fail‐safe system for possible sensor and/or power failure. Never use the sensor in environments classified as Hazardous. ...
- Page 12 2) the product has remained unclaimed at Flowline for more than 30 days after Flowline has dutifully requested disposition. This warranty contains the sole express warranty made by Flowline in connection with its products. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, ...
