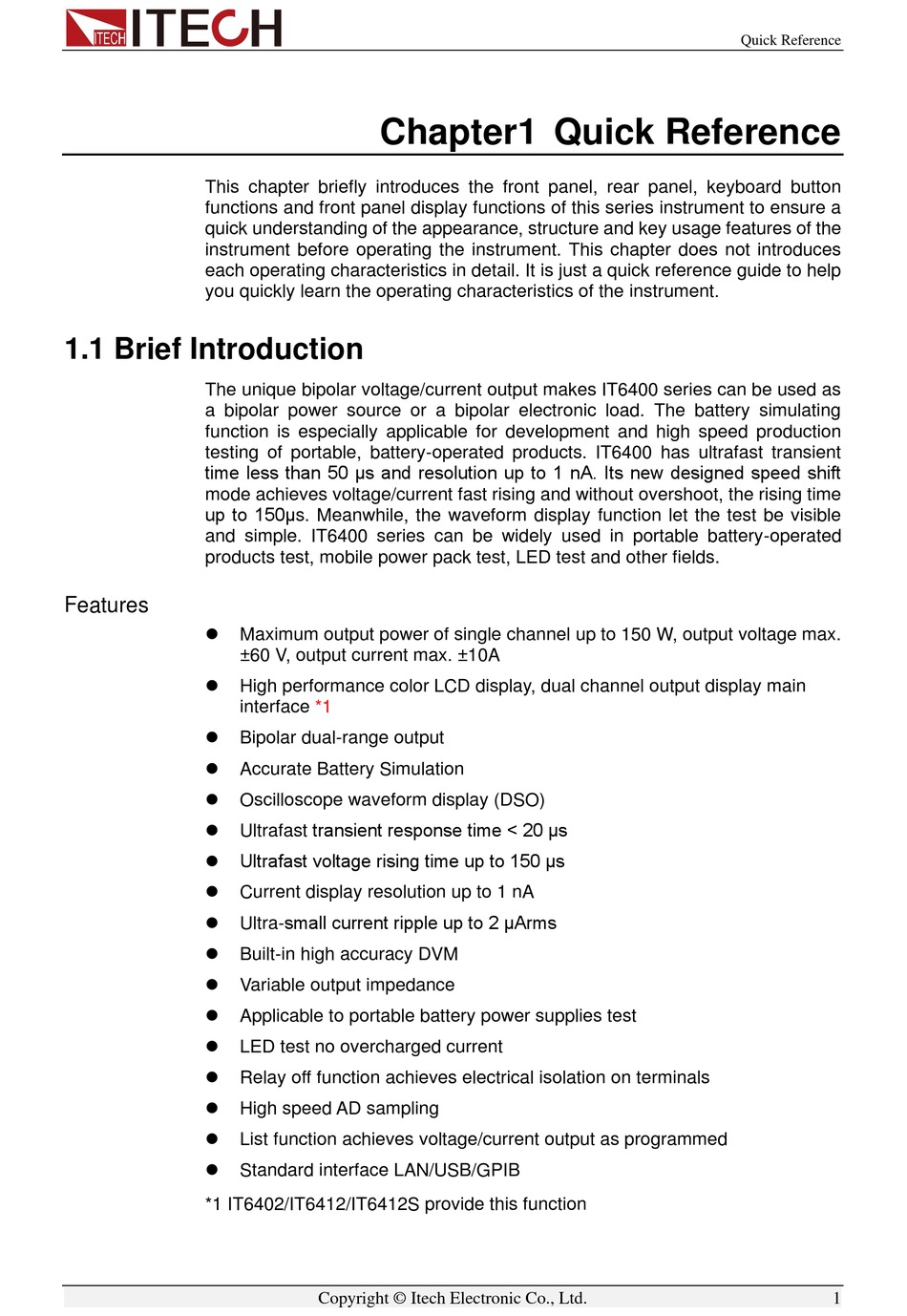

Chapter1 Quick Reference; Brief Introduction - ITech IT6400 Series User Manual

This chapter briefly introduces the front panel, rear panel, keyboard button
functions and front panel display functions of this series instrument to ensure a
quick understanding of the appearance, structure and key usage features of the
instrument before operating the instrument. This chapter does not introduces
each operating characteristics in detail. It is just a quick reference guide to help
you quickly learn the operating characteristics of the instrument.

1.1 Brief Introduction

The unique bipolar voltage/current output makes IT6400 series can be used as
a bipolar power source or a bipolar electronic load. The battery simulating
function is especially applicable for development and high speed production
testing of portable, battery-operated products. IT6400 has ultrafast transient
time less than 50 μs and resolution up to 1 nA. Its new designed speed shift
mode achieves voltage/current fast rising and without overshoot, the rising time
up to 150μs. Meanwhile, the waveform display function let the test be visible
and simple. IT6400 series can be widely used in portable battery-operated
products test, mobile power pack test, LED test and other fields.
Features
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
*1 IT6402/IT6412/IT6412S provide this function

Chapter1 Quick Reference

Maximum output power of single channel up to 150 W, output voltage max.
±60 V, output current max. ±10A
High performance color LCD display, dual channel output display main
interface *1
Bipolar dual-range output
Accurate Battery Simulation
Oscilloscope waveform display (DSO)
Ultrafast transient response time < 20 μs
Ultrafast voltage rising time up to 150 μs
Current display resolution up to 1 nA
Ultra-small current ripple up to 2 μArms
Built-in high accuracy DVM
Variable output impedance
Applicable to portable battery power supplies test
LED test no overcharged current
Relay off function achieves electrical isolation on terminals
High speed AD sampling
List function achieves voltage/current output as programmed
Standard interface LAN/USB/GPIB
