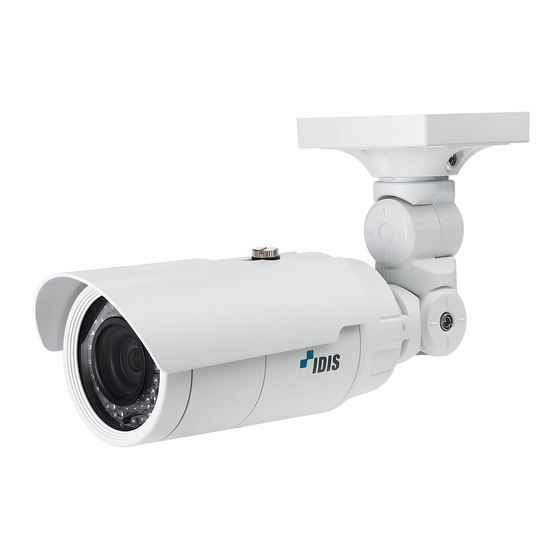

  • Page 1 Network Camera Operation Manual DC-T1833WHR Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Camera Protocol.
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    - The DirectIP™ NVR also allows you to control all camera settings directly from the NVR, without the Launch the IDIS Discovery program and from the list, need for a computer. select a camera whose protocol you wish to change.

  • Page 8: Remote Setup

    Part 1 - Remote Setup Remote Setup Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon. Select Remote Setup from the Setup menu to load the Remote Setup screen.

  • Page 9: Quick Setup

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. Change the camera’s system information, add users/...

  • Page 10: Date/Time

    Part 1 - Remote Setup • Setup Date/Time - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 11: User/Group

    Part 1 - Remote Setup User/Group • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Network

    Part 1 - Remote Setup Network • Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

  • Page 13: Fen

    IDIS Web program. The FEN Server operated by IDIS is a service to its clients and may go offline without notice for server update purposes or due to an unexpected failure.

  • Page 14: Port/Qos

    Web / HTTP ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Click Apply to use the recommended port numbers.

  • Page 15: Bandwidth Control

    – Via Mobile Device: Launch the web browser and then enter http://IP Address:IDIS Web Port Number/ (If Use HTTPS has been enabled, enter https instead of http). Camera's IDIS Web port number and RTSP port number must be configured correctly in order to establish a connection this way.

  • Page 16: Security

    Part 1 - Remote Setup Security • SSL: Select this option to enable SSL (Secure Sockets Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, programs and systems that do not support SSL will not be able to connect to the camera. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup Video IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.

  • Page 18: Camera

    Part 1 - Remote Setup Camera • Backlight Compensation: Enable/disable the Backlight Compensation feature. - OFF: Disables the BLC function. - ON: When images are too bright overall due to Image Sensor backlight, objects are exposed brighter under backlight circumstances. Configure Image Sensor settings.
  • Page 19 Part 1 - Remote Setup White Balance Exposure Configure White Balance settings. Configure Exposure settings. • Preset: Use preconfigured white balance settings. • IRIS: Adjust the openness of lens IRIS. - Auto: Allow the system to adjust the white - P-IRIS (Auto): The system will assess the lighting balance automatically.
  • Page 20 Part 1 - Remote Setup • Local Exposure: Activate Local Exposure. Use Local • Slow Shutter: Activate Slow Shutter. The electronic Exposure on images that appear too dark due to shutter’s speed will decrease to the specified level backlighting conditions and on images containing under low-lighting conditions to allow more light in over-exposed sections.
  • Page 21 Part 1 - Remote Setup • Shutter Speed Control: Adjust Shutter Speed. This Day & Night option is available only when Anti-Flicker and Slow Configure Day & Night settings. Shutter are both set to Off. - Auto: The system will assess the lighting conditions and adjust the shutter speed automatically.
  • Page 22 Part 1 - Remote Setup • IR Cut Filter: IR Cut Filter blocks out the infrared Miscellaneous spectrum. You can ensure clear images at all times by Configure Miscellaneous settings. blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

  • Page 23: Streaming

    Part 1 - Remote Setup Streaming • Compression: Choose the streaming compression method. • Resolution: Choose a resolution setting for video streaming. The resolution varies depending on the camera model. The current stream resolution cannot be higher than the higher stream resolution. •...
  • Page 24 Part 1 - Remote Setup • Multi-View Streaming: Designate a specific area of - Resolution Limit: Indicates the maximum the screen and stream images from that area only. resolution that can be set for the streaming area. (not supported for the primary stream) Click Setup to - Resolution: Designate a streaming area.

  • Page 25: Webcasting

    Part 1 - Remote Setup Webcasting Select the MAT option to use the MAT (Motion Adaptive Use the webcasting service to view live images from the camera on a web site. Transmission) feature during video transmission and recording. • HTML Code: Copy and paste the html code shown on •...

  • Page 26: Privacy Masking

    Part 1 - Remote Setup • Frame Rate: Designate the frame rate to be used Privacy Masking between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is Select Privacy Masking to set up a privacy mask over enabled under Video >...

  • Page 27: Audio

    Part 1 - Remote Setup Audio In/Out Configure audio in/out settings. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume. • Output: Select an option and then adjust the volume. Cameras do not feature built-in audio amplifier units and therefore require the user to purchase a speaker system with a built-in amplifier separately.

  • Page 28: Event Action

    Part 1 - Remote Setup Event Action Alarm out Designate event detection alert actions. Select Alarm Out to enable alarm out. • Dwell Time: Designate the alarm out duration. When an event occurs, alarm out will be generated for the specified duration.

  • Page 29: Email

    Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 30: Audio Alarm

    Part 1 - Remote Setup Audio Alarm FTP Upload Select Audio Alarm to generate audio. Select FTP Upload to upload .jpg image of the event detected to an FTP server. • List: Displays a list of audio files to playback. Click Add or Remove to add/remove audio (.wav) files.
  • Page 31 Part 1 - Remote Setup - Resolution/Quality: Choose the resolution and quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depe nding on the resolution setting applied under Video > Streaming. - Base File Name: Enter a name for the files to be uploaded to the FTP server and then choose file identification options.

  • Page 32: Event

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Motion Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback •...

  • Page 34: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback •...

  • Page 35: Audio Detection

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 36: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 37: System Event

    Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 38: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 39 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 40: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 41 Part 2 - IDIS Web Shows login information. Indicates the camera's number. Used to control zoom and focus at a remote location. • One push button - Press this button to find the optimum focus automatically. - It is recommended to get an approximate focus using the manual focusing button before pressing the one push button for fast and efficient focusing.
  • Page 42 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Live mode does not affect the camera's name on the remote system.

  • Page 43: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Alarm Out Email Remote Callback...

  • Page 44: Index

    Part 3 - Appendix Index ONVIF Protocol Bitrate Control Quality Camera Name Remote Port Compression Resolution RTSP Port Date/Time DSCP FEN Name Time Sync FEN Server Frame Rate Use FEN Use HTTPS IDIS Web port User/Group IPFiltering Use UPnP Network Bandwidth Limit V1.2...
  • Page 46 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
