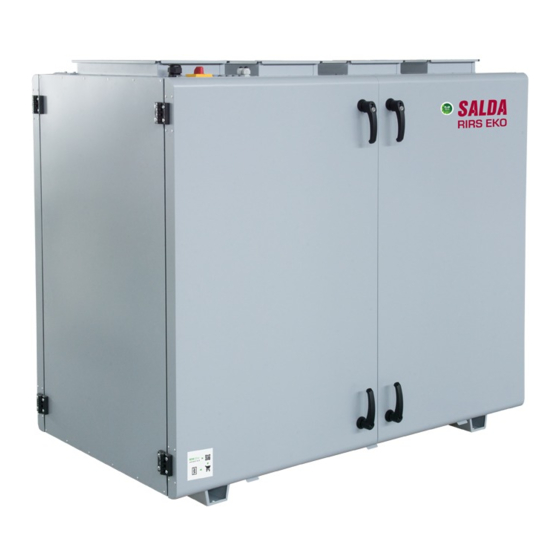

RIRS 1200-5500 V EKO 3.0
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIRS ECO 3.0 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Salda RIRS ECO 3.0 Series

Summary of Contents for Salda RIRS ECO 3.0 Series

  • Page 1 RIRS 1200-5500 V EKO 3.0 MOUNTING AND INSTALLATION INSTRUCTION...

  • Page 2: Table Of Contents

    CONTENT 2. SYMBOLS AND MARKING 3. SAFETY INSTRUCTIONS AND PRECAUTIONS 4. DIMENSIONS AND WEIGHT 5. ELECTRICAL DATA 6. CONSTRUCTION 7. OPERATING CONDITIONS PACKAGE 9. TRANSPORTATION 10. UNPACKING 11. STANDART PACKAGE OF COMPONENTS 12. PLACE REQUIREMENTS 13. MOUNTING 14. CONNECTION OF THE AIR DUCT 15.

  • Page 3: Symbols And Marking

    2. SYMBOLS AND MARKING LN: XX000000 2019.01.01 Figure. 2.1. Technical label 1 - Logo; 2 - Product code (SKU); 3 - Product name; 4 - Technical data; 5 - Production place; 6 - Lot number and production date; 7 - Serial number.

  • Page 4: Dimensions And Weight

    In exceptional cases harmful gases could be drawn out of the chimney or extraction ducting back into the room. In this case we strictly recommend to turn off Salda Antifrost and use an external preheater for heat exchanger anti-frost protection (see Salda Antifrost function on the Remote controller manual).

  • Page 5: Electrical Data

    øD* ød* * - depend on the unit. RIRS EKO 3.0 1200 1200 1200 1200 1900 1900 1900 1900 2500 2500 3500 3500 5500 5500 [kg] * - depend on the unit. 5. ELECTRICAL DATA RIRS EKO 3.0 1200 VEL 1200 VER 1200 VWL 1200 VWR...

  • Page 6: Construction

    RIS EKO 3.0 2500 VE 2500 VW 3500 VE 3500 VW phase/voltage [50 Hz/VAC] Heater power consumption [kW] phase/voltage [50 Hz/VAC] ~1,230 ~1,230 ~1, 230 ~1, 230 power/current [kW/A] 0,715 / 3,1 0,715 / 3,1 1,3 / 6,4 1,3 / 6,4 exhaust speed [min...

  • Page 7: Operating Conditions

    Figure. 6.3. RIRS 2500 V EKO 3.0 1 - Plate/rotor heat exchanger; 2 - Supply fan; 3 - Exhaust fan; 5 - Electrical/water heater/pre-heater; 6 - Control board; 7 - Extract air filters (panel/pocket); 8 - Supply air filter (panel/pocket); 9 - Rotor engine.

  • Page 8: Transportation

    QUANTITY ON THE PALLET RIRS V EKO 3.0 [mm] [mm] [mm] [units] 1200 1405 1620 1900 1405 1620 2200 1705 1020 1770 3500 1820 1130 2090 5500 1900 1440 2230 9. TRANSPORTATION Figure. 9.1. Lifting with forklift. Only a product placed on a pallet may be lifted in order to prevent damage to the casing. 10.

  • Page 9: Place Requirements

    1900 VEL 1900 VWR 1900 VWL 2200 VE 2200 VW 3500 VE 3500 VW 5500 VE 5500 VW 12. PLACE REQUIREMENTS 1,5xL 1,5xL Min. distance to open the door - 1,5xL; Min. distance to open control box door - H > 400 mm. 13.

  • Page 10: Connection Of The Air Duct

    14. CONNECTION OF THE AIR DUCT Figure. 14.1. Circular air duct conection Figure. 14.2. Rectangular air duct conection D2 dimensions depend on unit. 15. CONNECTION DIAGRAM Figure. 15.1. RIRS 1200-1900 VE EKO 3.0 (* Placement of the component depends on model) Figure.

  • Page 11: Connection Of The Unit To Electric Network

    Figure. 15.4. RIRS 2500-5500 VW EKO 3.0 Figure. 15.5. Indication for duct connection. Figure. 15.6. Ventilated premises ODA - outdoor air; SUP - supply air; ETA - extract air; EHA - exhaust air. LIST OF COMPONENTS Plate heat exchanger Fire alarm damper actuator I Supply air fan Fire alarm damper actuator II Extract air filter...

  • Page 12: Start-Up Recommendations

    The manufacturer does not assume any liability for personal injuries and property damage due to nonconformance with the provided instructions. 17. START-UP RECOMMENDATIONS 17.1. RECOMMENDATIONS BEFORE THE START OF THE UNIT (BEFORE THE FINAL USER) Prior to start-up the system must be thoroughly cleaned. Check whether: •...

  • Page 13: Heat Exchanger

    Figure 18.2.1. RIRS 1200-1900 V EKO 3.0 Figure 18.2.2. RIRS 2500-5500 V EKO 3.0 18.3. HEAT EXCHANGER Be sure the unit is disconnected from power source before performing any maintenance or repair. Proceed to maintenance and repair after any rotation in the fan stopped. Clean it once a year.

  • Page 14: Automatic Control

    Figure 18.4.1. RIRS 1200-1900 V EKO 3.0 Figure 18.4.2. RIRS 2500-5500 V EKO 3.0 19. AUTOMATIC CONTROL Supply air temperature can be adjusted according to the temperature measured by the supply or extracted air temperature sensor and the tem- perature which is set by the user on the remote control panel. User selected supply air temperature is maintained by the plate (or rotor) heat exchanger and additional electric and/or water heater (optional).

  • Page 15: System Protection

    19.1. SYSTEM PROTECTION a) Several steps of protection are provided for protection of the water heater. First: if during cold periods the temperature of the outward water flow drops below +10 °C (as measured by the TV sensor), then the water heater valve actuator M6 is forced to open regardless the need for heat.

  • Page 16: Modbus Adresses

    Figure 19.2.2. Microswitches 1 and 2 19.3. MODBUS ADRESSES Data Quan- Name ModBus func. tity of Description Values dress data 1 - a c t i v e , Antifrost 01h_Read_Coils Plate heat exchanger frost protection function o-passive 1 - a c t i v e , Fire 01h_Read_Coils Fire alarm...

  • Page 17: Electrical Connection Of The Hvac Unit

    ToutDoor 04h_Read_Input Ouside air temperature sensor value Hex: FFEC Twater 04h_Read_Input Return water temperature sensor value Hex: FFEC 19.4. ELECTRICAL CONNECTION OF THE HVAC UNIT Electrical connection can only be implemented by the qualified electrician in accordance with the applicable international and national electrical safety requirements and requirements for installation of electrical devices.
  • Page 18 1_719.0017B.0.2.0-L-1k 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 27 28 X16.5 X16.10 X16.1 X16.2 X16.4 9 10 X16.4 24 25 X16.3 X16.6 X16.4 24VAC, 3-position Transmitter 1 Jumper Transmitter 2 26 - 24V DC,...

  • Page 19: Control Board Rg1

    20. CONTROL BOARD RG1 LED indications of the controller Pic. 3a LED2 Air damper close LED9 Medium fans speed LED2 + LED3 Air damper open LED10 Minimal fans speed LED4 Water valve open LED11 Supply air fan speed reducing LED5 Water valve close LED12 Preheater...

  • Page 20: Labeling, Characteristics Of The Controller And The System Components

    20.1. LABELING, CHARACTERISTICS OF THE CONTROLLER AND THE SYSTEM COMPONENTS Contact Labeling Description Max. load Min. load type [ A ] [ mA ] L(230V/50Hz power supply) N(230V/50Hz power supply) Electric heater Electric preheater/rotor ON/OFF 230V/50Hz Voltage of Normal speed for air fans Voltage of Min speed for air fans Extract room(s) air fan.

  • Page 21: Regular System Check-Up

    Supply air fan 0-10V pressure transmitter Fire guard Additional heate exchanger guard DI Filter guard Fans guard Extract air temperature sensor Temp. and humidity sensor for extract air. Extract air humidyti sensor Supply air temperature sensor Supply air temperature sen- sor.

  • Page 22: Electrical Connection Diagram

    21. ELECTRICAL CONNECTION DIAGRAM 21.1. RIRS 1200 VE EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 23: Rirs 1200 Vw Eko

    21.2. RIRS 1200 VW EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...

  • Page 24: Rirs 1900 Ve Eko

    21.3. RIRS 1900 VE EKO 3.0 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 25: Rirs 1900 Vw Eko

    21.4. RIRS 1900 VW EKO 3.0 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...

  • Page 26: Rirs 2500-3500 Ve-V2.4-Rhx-0K

    21.5. RIRS 2500-3500 VE-V2.4-RHX-0K | EN RIRS 1200-5500 V EKO 3.0 v2019.06...
  • Page 27 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 28 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 29: Rirs 5500 Ve V2.4-Rhx-0K

    21.6. RIRS 5500 VE V2.4-RHX-0K RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 30 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...
  • Page 31 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...

  • Page 32: Svr 2500Ve-9-3F-V2,4-2K

    21.7. SVR 2500VE-9-3F-V2,4-2K | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 33: Svr 3500Ve-9-Eskm-0K-3X230

    21.8. SVR 3500VE-9-ESKM-0K-3X230 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...

  • Page 34: Svr 5500Ve-18-3F-Eskm-0K

    21.9. SVR 5500VE-18-3F-ESKM-0K | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 35: Rirs 2500Ve-V2,4-Rhx-0K

    21.10. RIRS 2500VE-V2,4-RHX-0K RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 36 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 37: Rirs 3500Ve-V2,4-0K-Rhx-3X230

    21.11. RIRS 3500VE-V2,4-0K-RHX-3X230 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 38 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 39: Rirs 5500Ve-V2,4-Rhx-0K

    21.12. RIRS 5500VE-V2,4-RHX-0K RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 40 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 41: Rirs 2500-3500 Vw-V2,4-Rhx-0K

    21.13. RIRS 2500-3500 VW-V2,4-RHX-0K RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 42 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...
  • Page 43 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 44                                         ...

  • Page 45: Rirs 5500 Vw-V2,4-Rhx-0K

    21.14. RIRS 5500 VW-V2,4-RHX-0K RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...
  • Page 46 | EN RIRS 1200-5500 V EKO 3.0 v2019.06...
  • Page 47 RIRS 1200-5500 V EKO 3.0 v2019.06 EN |...

  • Page 48: Rirs 2500 Vw-V2,4-Rhx-0K

                                            ...
  • Page 49                                         ...

  • Page 50: Rirs 3500 Vw- V2,4-Rhx-0K

    21.16. RIRS 3500 VW- V2,4-RHX-0K | EN RIRS 1200-5500 V EKO 3.0 v2019.06...
  • Page 51                                         ...

  • Page 52: Rirs 5500 Vw-V2,4-Rhx-0K

    21.17. RIRS 5500 VW-V2,4-RHX-0K | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 53: Rirs 2500 Vw (R3G280-Au06-B1)

                                            ...

  • Page 54: Rirs 3500 Vw (Rh35C-Zid.dc 1R)

    21.19. RIRS 3500 VW (RH35C-ZID.DC 1R)          21.20. RIRS 5500 VW (R3G 400-AY87-01)                    ...

  • Page 55: Ecodesign Data Table

    Description of visual filter warning Casing sound power level (Lwa) [ dB(A) ] ErP Compliance 2018 2018 2018 2018 Internet address for disassembly instructions www.salda.lt 1900 VER 1900 VER 1900 VWR 1900 VWL RIRS EKO 3.0 Declared typology bidirectional bidirectional...
  • Page 56 Pressure Pressure Pressure Pressure control control control control control control Casing sound power level (Lwa) [ dB(A) ] ErP Compliance 2018 2018 2018 2018 2018 2018 Internet address for disassembly instructions www.salda.lt | EN RIRS 1200-5500 V EKO 3.0 v2019.06...

  • Page 57: Declaration Of Confimity

    Should any alterations be made in the products, this declaration will no longer apply. Notified body: VšĮ Technikos priežiūros tarnyba, Naugarduko g. 41, LT – 03227 Vilnius, Lithuania, identification number 1399. Quality: Salda UAB activities are in line with the international quality management system standard ISO 9001:2015. Date...

  • Page 58: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a control system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be damaged by installing the control system.
  • Page 59 RIRS 1200-5500 V EKO 3.0 v2019.06...
  • Page 60 Heat exchanger cleaning Every 3-4 Filter replacement months** Look at the product label. ** - At least. NOTE. The purchaser is required to fill in the “Product maintenance table”. MAN000126 MAN000126 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...
