Installation Instructions
ArmorBlock MaXum 8 Input / 8 Output Module
With Ground Lug
Cat. No. 1792D-8BT8PE

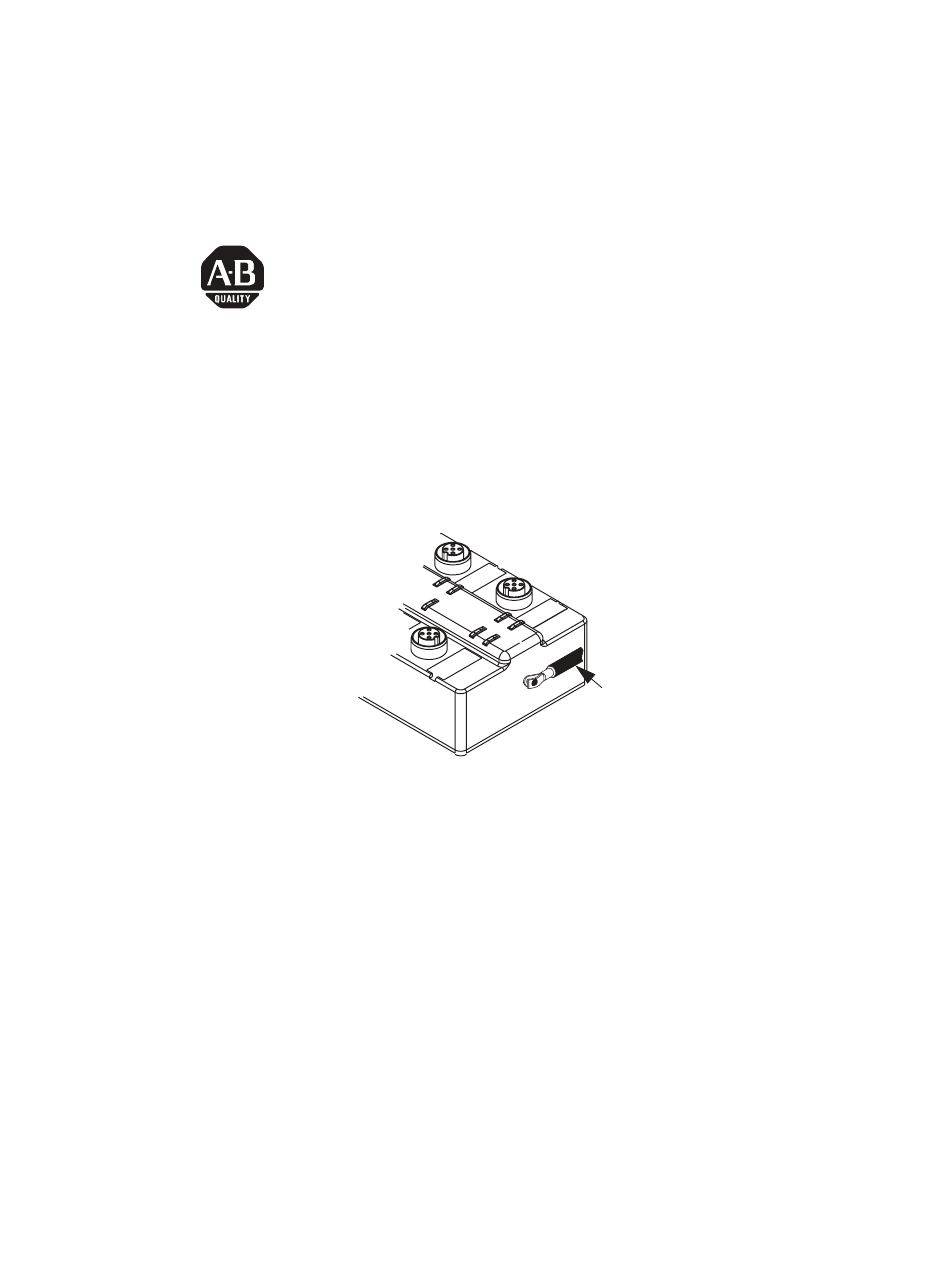

Ground lug
43881
This ArmorBlock MaXum
I/O module (Cat. No. 1792D-8BT8PE) is a
¥
stand-alone 24V dc I/O product, which communicates via a
DeviceNet
network. The sealed housing of this module requires no
¥
enclosure.
This module has 8 inputs and 8 outputs accessed through Y splitter
cables. Inputs are 24V dc devices. Eight self-protected 24V dc outputs
can provide up to 0.5 amp each. Diagnostic features are short circuit,
open wire, and no load detection reported to the connector level on
inputs and point level on outputs. Local logic control has been
included. An external lug exists to ground the block.
Publication
1792D-IN055A-EN-P - October 2004
Advertisement
Related Manuals for Rockwell Automation ArmorBlock MaXum 1792D-8BT8PE
Summary of Contents for Rockwell Automation ArmorBlock MaXum 1792D-8BT8PE
- Page 1 Installation Instructions ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug Cat. No. 1792D-8BT8PE Ground lug 43881 This ArmorBlock MaXum I/O module (Cat. No. 1792D-8BT8PE) is a ¥ stand-alone 24V dc I/O product, which communicates via a DeviceNet network.
- Page 2 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug Environment and Enclosure ATTENTION This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC publication 60664-1), at altitudes up to 2000 meters without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR Publication 11.
-
Page 3: Install The Module
ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug To reset the node address, use a small blade screwdriver to rotate the switches. Line up the small black dot on the switch with the number setting you wish to use. The rotary switches are read at module power up only. - Page 4 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug To install the module: Proper alignment of the screws is necessary to IMPORTANT complete the connections between the module contacts and the cable contacts. Position the module over the mounted cable base. Align the three captive screws in the module with the accepting receptacles in the base.
- Page 5 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug Connect the Input / Output Cord Sets to the MaXum Module This module uses 5 pin micro (12mm) style PCB mounted connectors. Eight micro caps cover the connectors on your module. Remove the caps and connect your cord sets to the appropriate ports.
- Page 6 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug Refer to publication 889-5.0 for Rockwell Automation cables and cord sets offerings. Use supply wires suitable for 30°C above WARNING surrounding ambient. If the devices (sensors) connected to the input...
- Page 7 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug I/O connectors for this module are shown below. Input 0 Output 0 Connector A Connector E Input 1 Output 1 Input 2 Output 2 Connector B Connector F Input 3 Output 3 Output 4 Input 4...
-
Page 8: Specifications
ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug The following table describes individual I/O status indicators. I/O Status Indicators Function Module Status Indicator Point Status Indicator Outputs Green None Output not energized Green Yellow Output energized Module Status blink red Orange Output shorted - auto restart Module Status blink red... - Page 9 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug 8 Input / 8 Output Module - Cat. No. 1792D-8BVT8PE General Specifications Maximum Minimum DeviceNet Power Voltage 25V dc max 11V dc min Current 150mA max (no sensors) up to 1.4A (8 sensors @ 50mA per sensor) Auxiliary Power Voltage...
- Page 10 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug 8 Input / 8 Output Module - Cat. No. 1792D-8BVT8PE General Specifications (continued) Operating Shock IEC 60068-2-27 (Test Ea, Unpackaged Shock): Non-Operating Shock IEC 60068-2-27 (Test Ea, Unpackaged Shock): Emissions CISPR 11: Group 1, Class A...
- Page 11 ArmorBlock MaXum 8 Input / 8 Output Module With Ground Lug 8 Input / 8 Output Module - Cat. No. 1792D-8BVT8PE General Specifications (continued) CSA Certified Process Control Equipment Certifications: CSA Certified Process Control Equipment for (when product is marked) Class I, Division 2 Group A,B,C,D Hazardous Locations European Union 89/336/EEC EMC Directive,...
