Quick Start
FactoryTalk Analytics LogixAI
FactoryTalk® Analytics™ LogixAI® (catalog number 1756-CMS1B4) uses predictive analytics to turn raw data about how a system operates into
actual decisions about the operation and maintenance of that system.
Summary of Changes
This publication has been revised for the following:
•
Updated the images for changes to the front of the appliance on
•
Updated web browser information on
•
Updated screen captures, and associated tasks where appropriate, beginning on
•
Changes to the table on

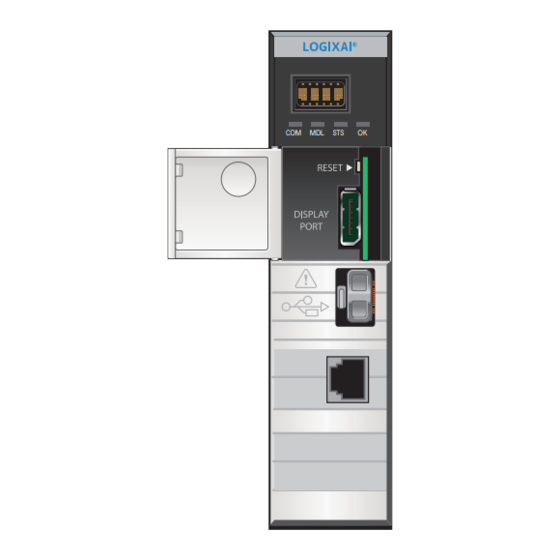

What's in the Box
COM
MDL
STS
OK
To install the appliance, you need:
•
1756 ControlLogix® controller installed in a chassis
•
RJ45 Ethernet cable
page
3.
page
4.
1
2
3
4
page 1
and
page
2.
page
Item
Description
1
Reset Button
2
Display Port
3
USB 3.0 Port
4
ETH1 Ethernet port
4.
Advertisement
Table of Contents
Related Manuals for Rockwell Automation Allen-Bradley FactoryTalk Analytics LogixAI
Summary of Contents for Rockwell Automation Allen-Bradley FactoryTalk Analytics LogixAI
- Page 1 Quick Start FactoryTalk Analytics LogixAI FactoryTalk® Analytics™ LogixAI® (catalog number 1756-CMS1B4) uses predictive analytics to turn raw data about how a system operates into actual decisions about the operation and maintenance of that system. Summary of Changes This publication has been revised for the following: •...
- Page 2 The dongle provides licensing and is required for the appliance to operate. Connect the ETH1 port of the appliance directly to an Ethernet port on a computer. You use the computer to configure the appliance. 33801-M Rockwell Automation Publication 1756-QS002B-EN-P - April 2020...
- Page 3 Right-click the Local Area Connection that is connected to the appliance and select Properties. c. Double-click the Internet Protocol Version 4 (TCP/IPv4) connection. d. Choose Use the following address and enter the IP address and subnet mask. e. Click OK to save the changes. Rockwell Automation Publication 1756-QS002B-EN-P - April 2020...
- Page 4 6. Return the IP address of your computer back to the original IP address. Connect the ETH1 port of the appliance to the same network as the computer. 8. To create a prediction, follow the steps in the next section. Rockwell Automation Publication 1756-QS002B-EN-P - April 2020...
- Page 5 Drag and drop tags from the left pane into the appropriate variable sections. b. Enter the upper and lower bounds for each variable. 4. To review the tag assignments, choose CONTINUE TO REVIEW. 5. Choose Finish. Rockwell Automation Publication 1756-QS002B-EN-P - April 2020...
- Page 6 Rockwell Automation maintains current product environmental information on its website at environmental-compliance.page. Allen-Bradley, ControlLogix, FactoryTalk, FactoryTalk Analytics, LISTEN. THINK. SOLVE, LogixAI, Rockwell Automation, and Rockwell Software are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies.
