Description

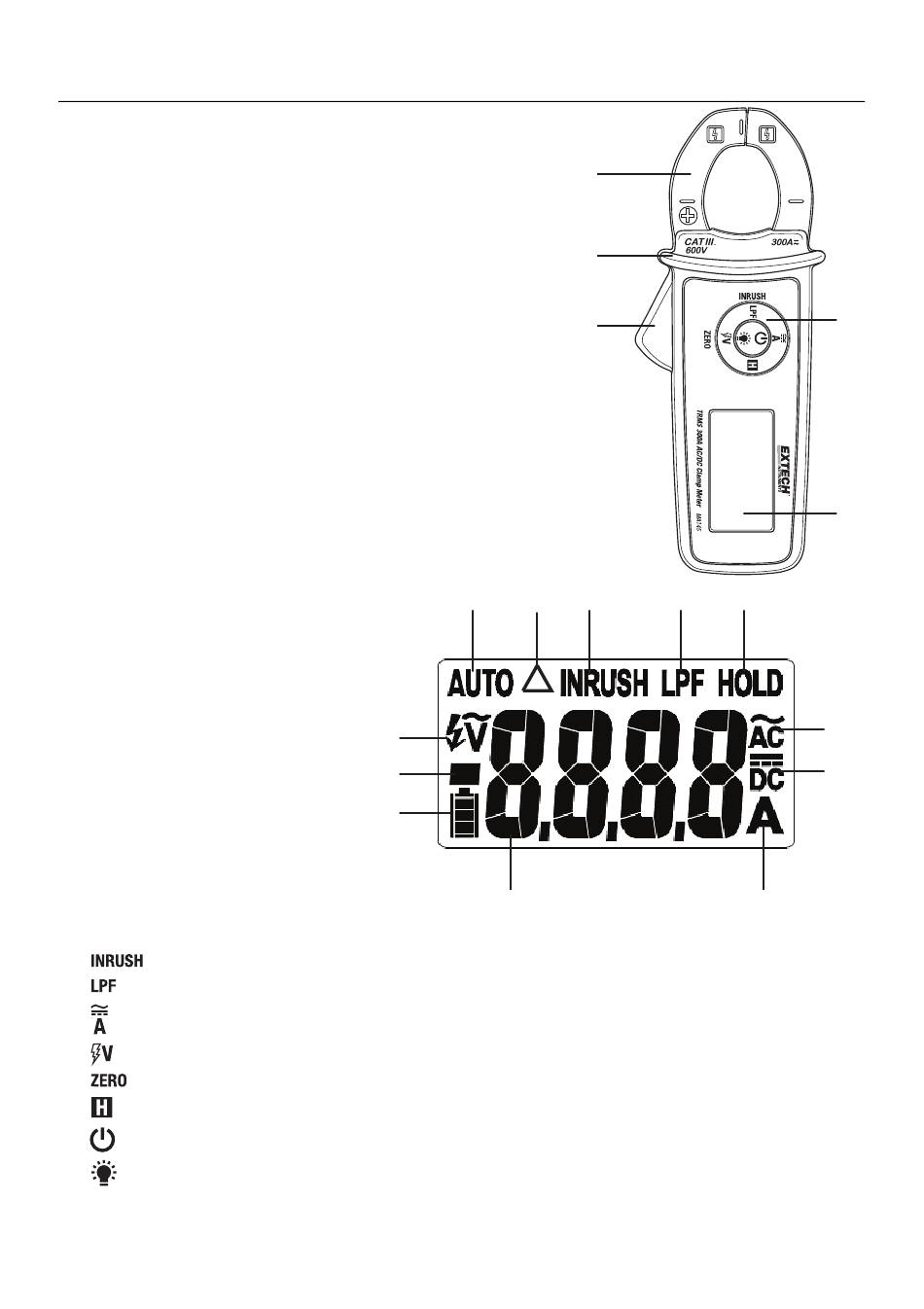

Meter Description
1.
Transformer current jaw
2.
Finger‐Hand Guard
3.
Jaw opening trigger
4.
LCD Multi‐function display
5.
Push‐button controls
Note that the battery compartment is located on back of meter
Display Description
1.
Automatic ACA/DCA detect
2.
Zero icon
3.
In‐Rush Current mode
4.
Low Pass Filter
5.
Data Hold
6.
AC Measurement
7.
DC Measurement
8.
Amperes (current)
9.
Main Display area
10.
Battery status icon
11.
Minus (negative) sign
12.
Non‐Contact Volt Detect icons
Control Button Description
nd Quality Products Online at:
Press for > 2 seconds to access In‐rush Current mode
Press to access Low Pass Filter mode
Press to access current measurement mode. Press again to toggle AC/DC
Press to access Voltage detect mode
Press for > 2 seconds to zero DCA display
Press to switch Data Hold on or off
Press to power ON the meter. Press and hold > 2 seconds to switch OFF
Press to toggle display backlight on and off
GlobalTestSupply
www.
1
2
12
11
10
9
4
1
2
3
3
4
5
