FRE-102AG
INSTRUCTIONS
from LASER LEVELS ONLINE
www.laser-level.co.uk
Tel: 01246 269777

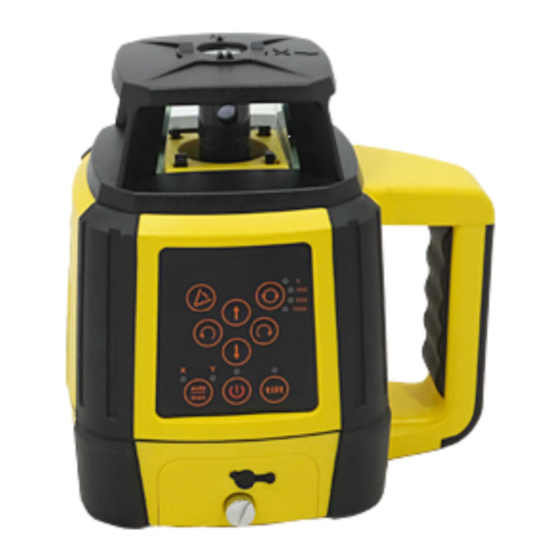

Thank you for purchasing the Fukuda FRE-102AG
GREEN
beam, rotary laser
kit. These instructions are intended to explain the quick basics to operating
this equipment. Please read them carefully.
If you need any more help/advice or the instrument requires calibration or
repair, then please contact our Service Dept on
tel. 01246 269 777 or fax 01246 260 007. We would be pleased to help.
Power source:
The FRE-102AG has a special rechargeable battery pack located in the front
base of the laser. To change: unscrew the silver lock, slide out to remove &
carefully refit. It contains 4pc x "sealed for life" Ni-MH type C, 4000mAh, 1.2V
cells. Please note that this battery pack can be charged either in or outside of
the laser. The Mains Charger (supplied) will charge these batteries in around
7 - 8 hours to give up to 30 hrs of continuous use. It takes 4 to 5
charge/discharge cycles for this battery pack to reach its maximum capacity.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fukuda FRE-102AG
Summary of Contents for Fukuda FRE-102AG

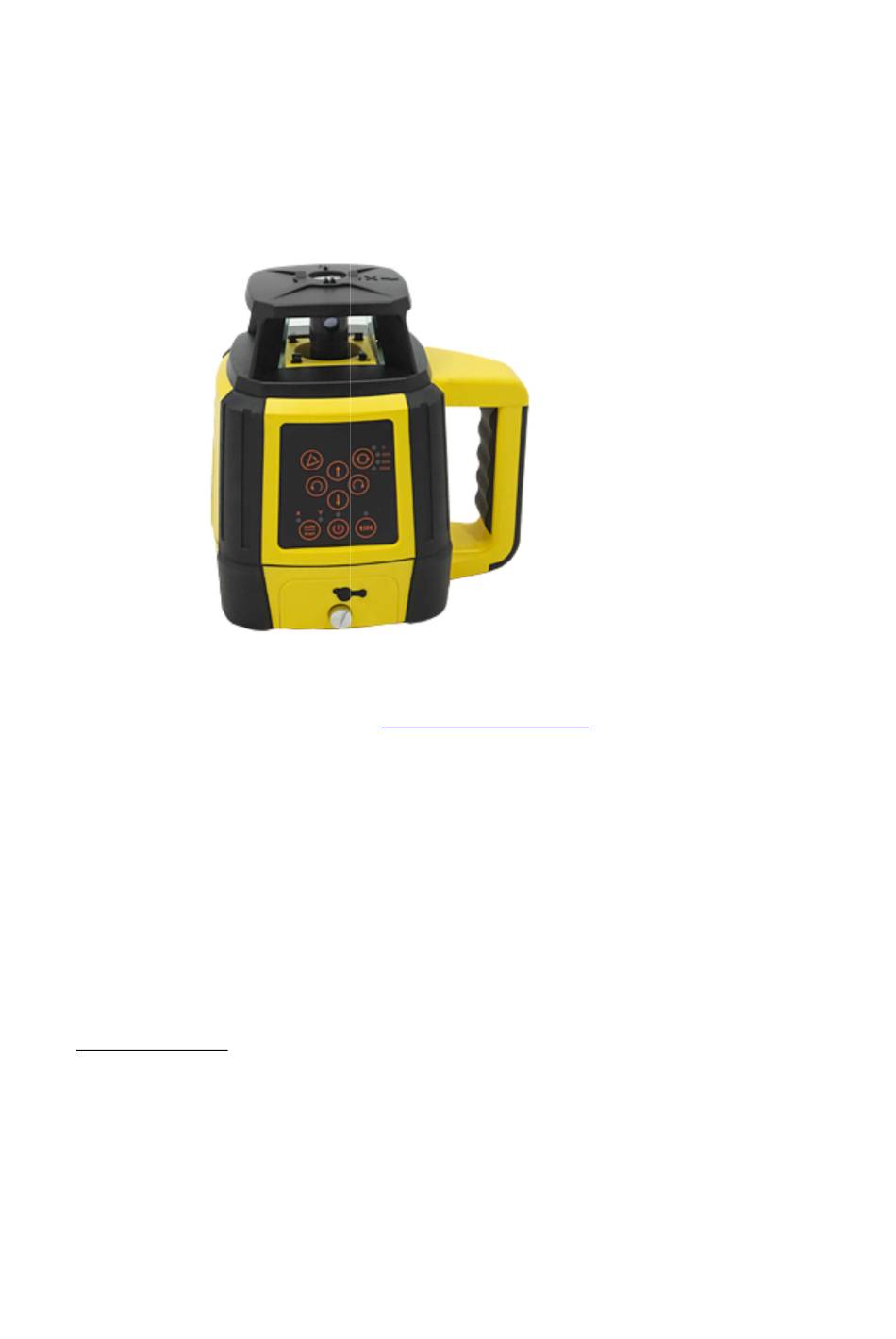

- Page 1 01246 269 777 or fax 01246 260 007. We would be pleased to help. Power source: The FRE-102AG has a special rechargeable battery pack located in the front base of the laser. To change: unscrew the silver lock, slide out to remove &...
- Page 2 6-8 hrs. Positioning the Laser: Mount the FRE-102AG on a generally level, firm surface or 5/8” Tripod. To operate correctly this surface must be within +/-5 deg of true horizontal. (WARNING: green "X" & "Y" LED's flash on/off, if laser is outside 5 deg range.)
- Page 3 1,000rpm. For Interior work, we suggest using slower speeds, where the laser beam is easier to see by eye; but for Exterior Groundworks – run the FRE-102AG at its maximum speed of 1,000rpm, which gives the best working range when used with the supplied Laser Detector.
- Page 4 Automatic Drift System (ADS): Operated via bottom, right-hand button, marked "tilt". Once the FRE-102AG is ON and rotating in the auto (self) levelled mode, the automatic drift system can be activated. Press the button & the green LED will illuminate. ADS is now ON.
- Page 5 If the sun is low in the sky & shining into the green window, shield it with a cupped hand to prevent false readings. Positioning the FRE-102AG itself in full sun is no problem but the detector window can, in some instances, be affected by direct bright sunlight or reflections.
- Page 6 Laser accuracy +/-1.5mm @ 30m. Operating range 25m (visible) or 600m diameter with the supplied detector. IR Remote control range: 20m ...for full details, see website data for FRE-102AG at www.laser-level.co.uk There are NO User Serviceable Parts. (This would void the warranty) We offer a full Back-up service including repairs, calibration &...
