FLE-444R
INSTRUCTIONS
from Laser Levels Online
www.laser-level.co.uk
Tel: 01246 269 777

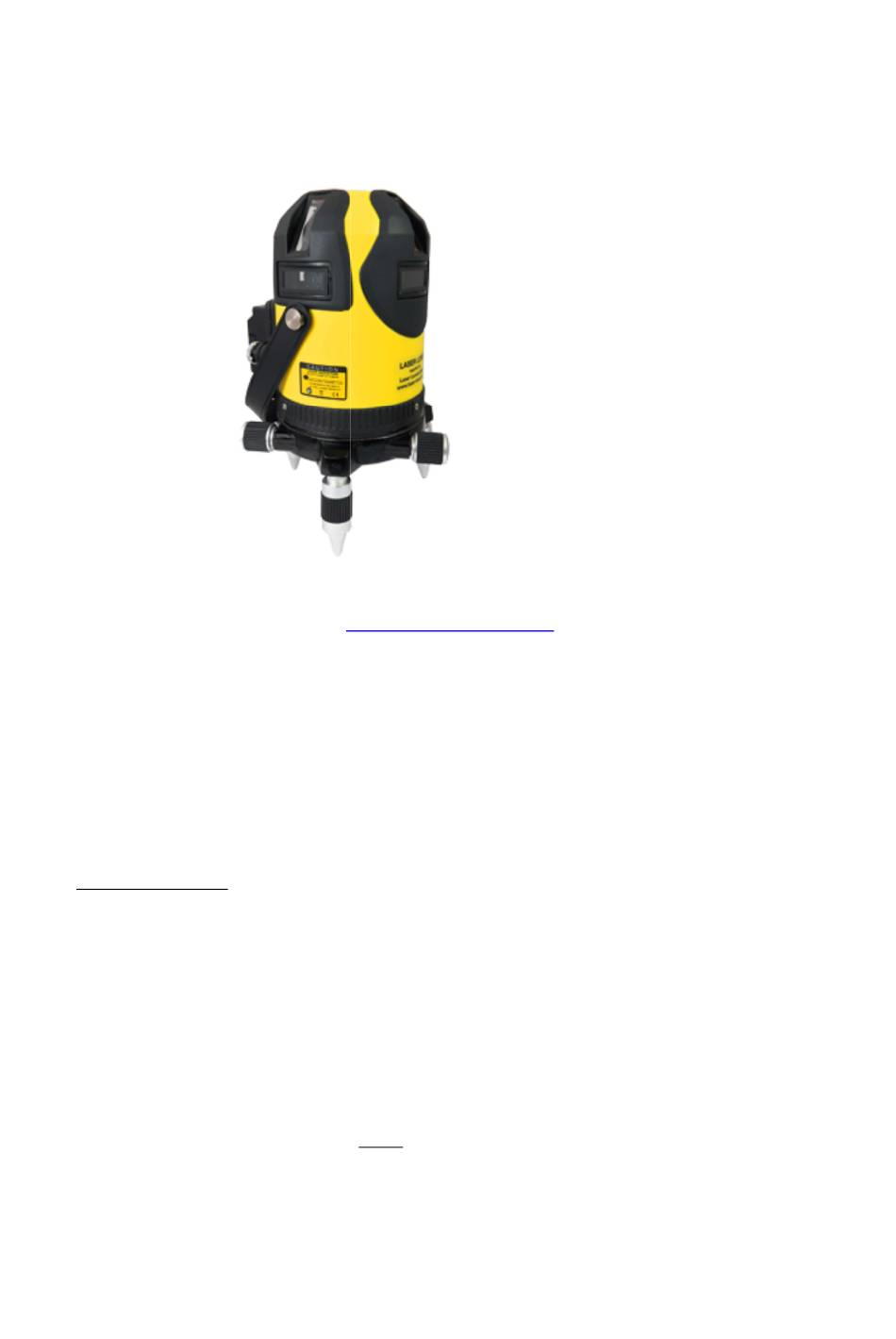

Thank you for purchasing the FLE-444R automatic Multi-line Laser Level kit.
These instructions are intended to explain the quick basics to operating this
equipment. If you need any more information, or the unit requires calibration
or repair, then please contact our Service Dept on tel. 01246 269 777 or
fax 01246 260 007. Email: sales@laser-level.co.uk We are here to help.
Power source:
The FLE-444R is fitted with a high capacity 5,400mAh Lithium-ion (Li-ion)
battery. Ensure it is located securely and NEVER substitute it for a differently
rated Li-ion battery.
Use the supplied Mains Charger to charge the battery in ambient
temperatures above 5 deg C. The charger itself has no LED indicator.
Plug the charger into a 230V socket and connect DC plug into the side
mounted Li-ion battery pack. Note the charging LED:
RED indicator denotes the battery is CHARGING.
GREEN indicator denotes battery is partially CHARGED. Further charging to
reach full capacity is recommended, taking approx 2-4 hrs. Usually 80%
charge capacity in reached in 2hrs. (nb. You cannot "overcharge" the battery.)
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fukuda FLE-444R
Summary of Contents for Fukuda FLE-444R
- Page 1 Tel: 01246 269 777 Thank you for purchasing the FLE-444R automatic Multi-line Laser Level kit. These instructions are intended to explain the quick basics to operating this equipment. If you need any more information, or the unit requires calibration or repair, then please contact our Service Dept on tel.
- Page 2 230V mains operated equipment is prohibited on-site. Positioning the Laser: Mount the FLE-444R on a generally level, firm surface or a 5/8” threaded laser accessory eg. a Tripod or a Floor to Ceiling Pillar. You may need to use the supplied post adapter.
- Page 3 80m with the FD-9R line detector. To set Squaring: The FLE-444R does have a good squaring facility to set-out true 90 degrees. Place the instrument on the floor & operate all the vertical lines. These will project along the floor (to set floor squaring), up the walls opposite & square on the ceiling above too.
- Page 4 Use the detector with or without its staff mounting bracket. Model FLE-444RD with Detector: Switch on both the FLE-444R & FD-9R detector. The laser has built-in "pulsed output circuitry". Press the OUTDOOR button and note the green LED. At a distance of 3m+ away, face the detector towards the laser & locate the centreline of the laser beams via the red pick-up window.
- Page 5 We offer a full back-up Service including calibration & usage advice. Accessories for the various Trades are also available - on request. eg. Floor-to-ceiling Pillar kits, tripods, staffs, wall brackets & adapters etc. To contact us: Laser Levels Online, Unit 35 Bridge Business Centre, Beresford Way, CHESTERFIELD, S41 9FG.
