FRE-203XR
INSTRUCTIONS
Supplied by Laser Levels Online – The Laser Level Specialists
www.laser-level.co.uk
Tel: 08000 869 769

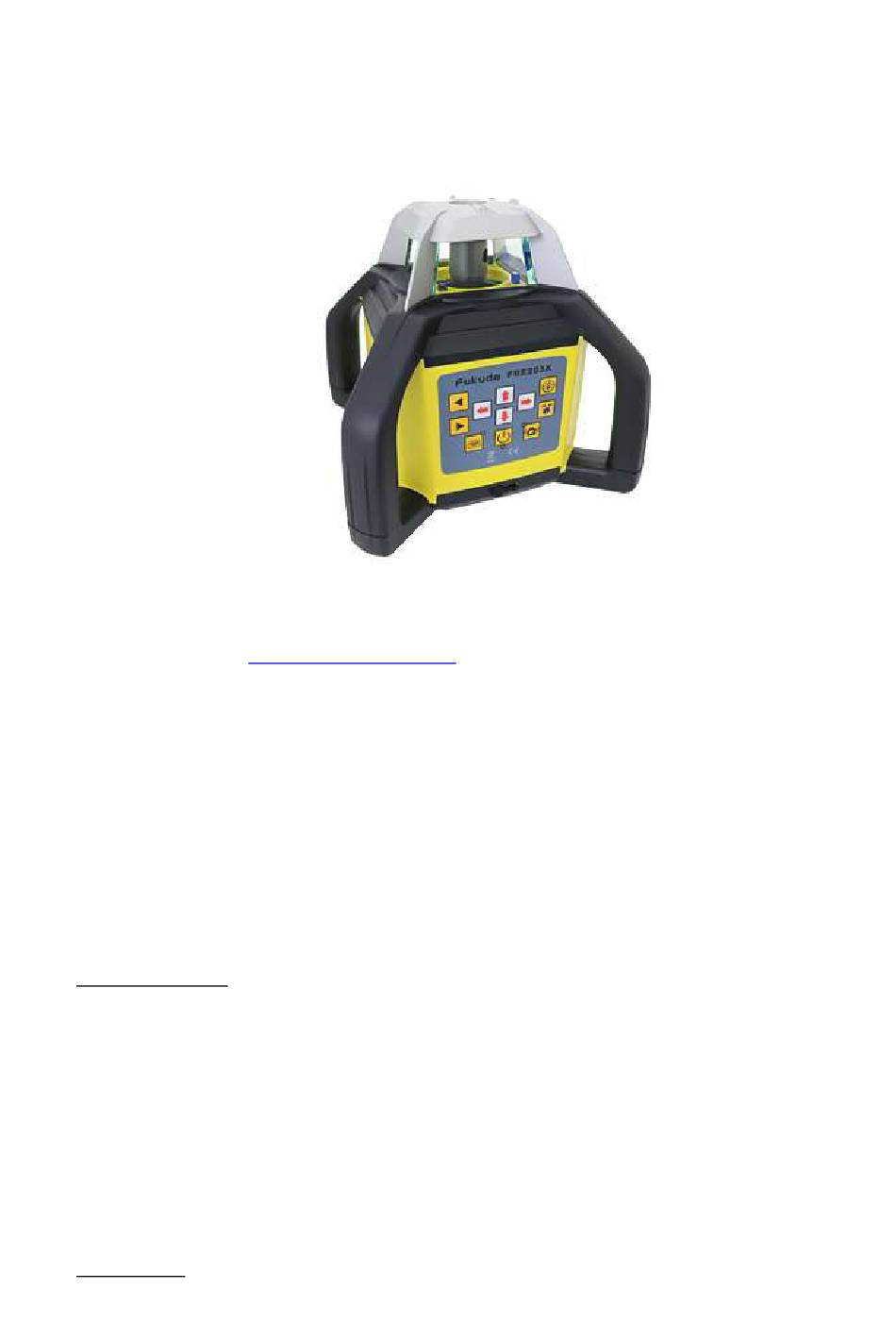

Thank you for purchasing the Fukuda FRE-203XR
RED
beam rotary laser kit.
These instructions are intended to explain the general basics to operating
this equipment. Please read them carefully.
For any more information, or if the laser requires calibration or repair; then
please contact our Service Department on Tel. 01246 260 007.
Email: sales@laser-level.co.uk We are here to help.
Power source:
This is a special battery pack located in the base of the laser. Remove & refit
via a central screw - finger tight (no tools are required).
It contains 4pc x "sealed for life" Ni-MH type C, 4000mAh, 1.2V cells. Please
note that this battery pack can be charged either in or outside of the laser.
The Mains Charger (supplied) will charge most batteries in around 7 hours to
give around 50 hrs of continuous use. It takes 4 to 5 charge/discharge cycles
for these battery packs to reach their maximum capacity.
Important: Do NOT allow battery to go completely dead before recharging.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fukuda FRE-203XR
Summary of Contents for Fukuda FRE-203XR
- Page 1 Supplied by Laser Levels Online – The Laser Level Specialists www.laser-level.co.uk Tel: 08000 869 769 Thank you for purchasing the Fukuda FRE-203XR beam rotary laser kit. These instructions are intended to explain the general basics to operating this equipment. Please read them carefully.
- Page 2 Even though the Green light is ON, we still recommend a full charge. The FRE-203XR can be operated with the charger connected to the mains supply, if required and is approved on site. On receipt of your new laser, we suggest charging the batteries fully for 5 - 6 hours.
- Page 3 For Interior work, we suggest using slower speeds, where the laser beam is easier to see by eye; but for Exterior Groundworks – run the FRE-203XR at its maximum speed of 600rpm; which gives the best working range when used with the supplied Laser Detector.
- Page 4 Operated via bottom, right-hand yellow button, showing a "picture of a tilted instrument". Once the FRE-203XR is ON and rotating in the auto (self) levelled mode, the automatic drift system can be activated. Press the button & the green LED will flash slowly.
- Page 5 If the sun is low in the sky & shining into the red window, shield it with a cupped hand to prevent false readings. Positioning the FRE-203XR itself in full sun is no problem, but the detector window can, in some instances, be...
- Page 6 General Advice: This is an accurate measuring device - so to give good service, look after it! Prevent the FRE-203XR from receiving severe knocks, bangs or vibration. Store the laser & its accessories in the supplied carry case. If wet, DRY well before storing & keep in storage temps between 5-30 deg C.
- Page 7 Please contact us: Laser Levels Online, Unit 35, Bridge Business Centre, Beresford Way, CHESTERFIELD, S41 9FG. England. Tel: 01246 269777 / Fax: 01246 260007 sales@laser-level.co.uk www.laser-level.co.uk Laser Levels Online is an online trading division of P. R Engineering Ltd Attached User Data sheets………...
- Page 8 How to set Slopes (Falls/Grades) with a Rotary Laser Level The following description in this guide, explains the general principles of setting a Slope (Fall/Grade) when using a rotary laser level. The rotary level must be either a “grade facility” laser with a Manual over-ride button or a true grade laser with a LCD enabling the User to input slopes into the X-axis, Y-axis or both together ie.
- Page 9 level position, usually by giving a continuous audible tone. By proportion 1m fall over 40m is 250mm over 10m, so noting the set level dimension on the rear of the staff, move the detector down by 250mm. Using the remote control yourself (from the staff location) or a colleague at the laser, switch the rotary laser to its MANUAL setting in the axis facing the measuring staff.
- Page 10 Dual Grading: A rotary laser level with dual grading facility can be used for setting out driveways, carparks or areas with slopes (falls) in BOTH the X & Y axis. The same procedure is adopted as above for drainage runs except a second step in the process is undertaken to set the laser to a fall in the other axis to complete the dual grade setting-out.
- Page 11 How to set 90 degree SQUARING with a Rotary Laser Level The following description in this guide, explains the general principles of setting-out 90 degree squaring when using a rotary laser level. It speeds up the classic 3x4x5 triangle method, giving better accuracy and alignment over much longer distances. This information is intended to be read in conjunction with your laser level’s Instruction Manual.
- Page 12 *mark*. So simply mark two positions say 100mm & 1m away from the laser level & strike a line back under the laser’s cover to the datum *mark* to give the intersection of both axis. Fukuda FRE-203X laser level models with Squaring facility: Applicable models are: FRE-203XR...
