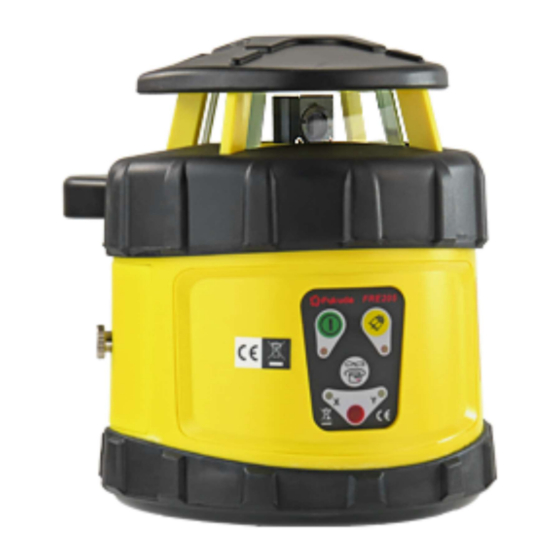

Fukuda FRE-205
INSTRUCTIONS
Supplied by Laser Levels Online – The Laser Level Specialists
www.laser-level.co.uk
Tel: 08000 869 769
Thank you for purchasing the Fukuda FRE-205 Auto Rotary laser level kit.
These instructions are intended to explain the quick basics to operating this
equipment. If you purchased a New "DUO" kit, then an EK-112R cross-line
laser level is also included.
For any more information, or if the laser requires calibration or repair; then
please contact our Service Department on Tel. 01246 260 007.
Email: sales@laser-level.co.uk We are here to help.
Power source:
Unscrew the battery cover screw & remove panel.
Fit 4 x type AA high capacity Ni-MH rechargeable batteries. The mains
charger (supplied) will charge these batteries in around 6-8 hours. It takes 4
to 5 charge/discharge cycles for the batteries to reach their maximum
capacity.
1
Advertisement
Table of Contents
Related Manuals for Fukuda FRE-205
Summary of Contents for Fukuda FRE-205
- Page 1 Tel: 08000 869 769 Thank you for purchasing the Fukuda FRE-205 Auto Rotary laser level kit. These instructions are intended to explain the quick basics to operating this equipment. If you purchased a New “DUO” kit, then an EK-112R cross-line laser level is also included.
- Page 2 Positioning the Laser: Mount the FRE-205 on a generally level, firm surface or 5/8” threaded tripod. To operate correctly, this surface must be within +/-5 deg of true horizontal. The laser can be used indoors or outdoors, where it is waterproof to IP54.
- Page 3 Setting a single axis slope. This sets the slope/grade in the X axis. Procedure – switch ON, FRE-205 then auto levels. Press central top button (bubble level symbol) on the Remote Control & the green LED X illuminates on the Laser. The FRE-205 is now set to MANUAL.
-
Page 4: Remote Control
Automatic Drift System (ADS) - ie. "bump sensor": Operated via yellow button, showing a "picture of a tilted instrument" Once the FRE-205 is ON and rotating in the auto (self) levelled mode, the automatic drift system can be activated. Press the button, the red LED will flash on/off for 20 secs after which the LED will be red continuously. - Page 5 If the sun is low in the sky & into the red window, shield it with a cupped hand to prevent false readings. Positioning the FRE-205 itself in full sun is not a problem, but the detector window can in some instances be affected by direct bright sunlight or reflections.
- Page 6 There are NO User serviceable parts. (This would void the warranty). (DUO kit pictured) We offer a full back-up service including repairs, calibration & usage advice. Accessories for the various Trades are also available, on request. eg. Tripods, staffs, pole kits & wall brackets etc. To contact us: Laser Levels Online, Unit 35, Bridge Business Centre, Beresford Way, CHESTERFIELD, S41 9FG.
