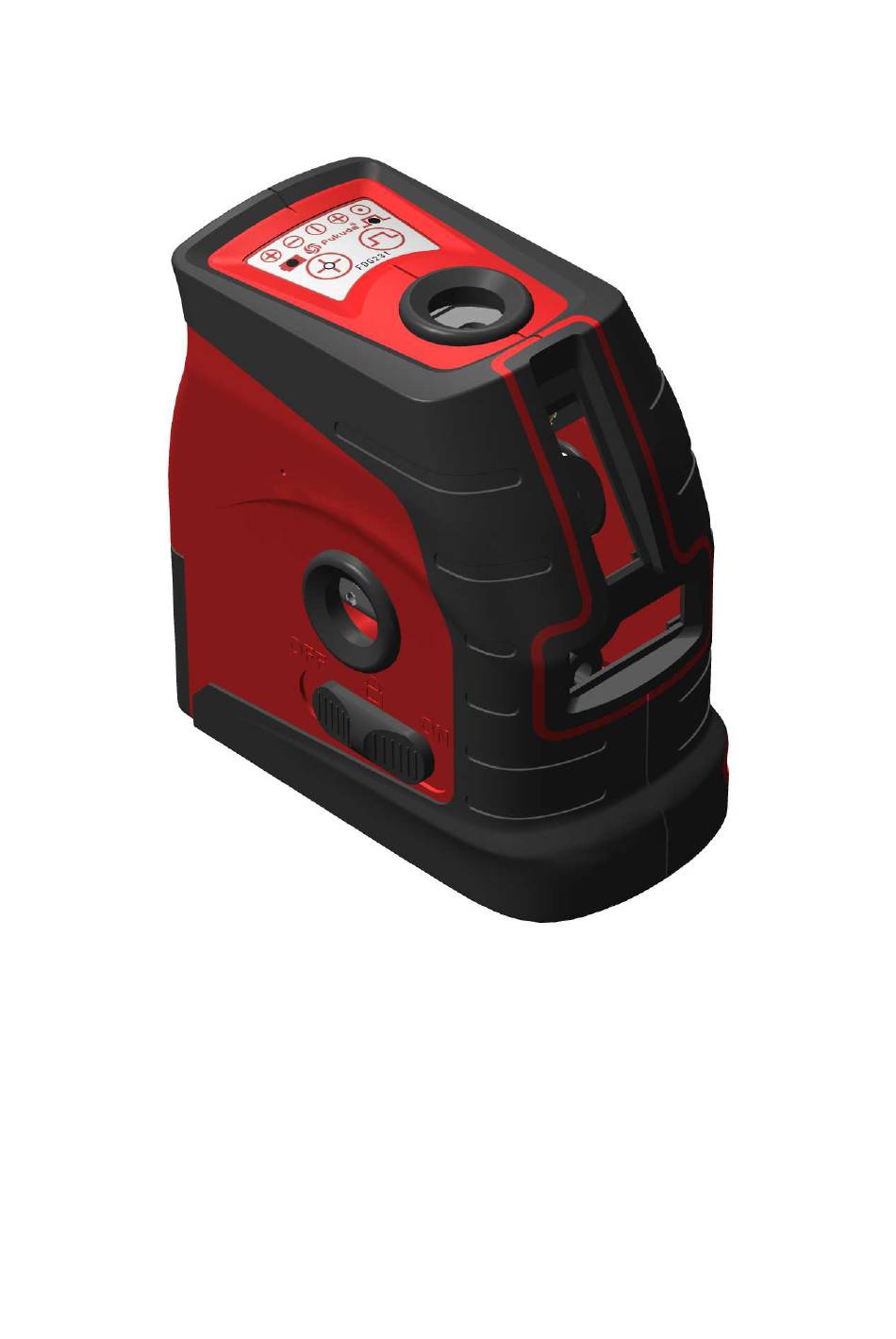

- Page 1 FDG231 User Manual...
- Page 2 Functions 1 Emitting 5 laser points and one laser cross 2 Quick self-leveling and sound alarming when out of self-leveling range 3 Laser blinking at low battery 4 Freely marking of point or line at pendulum-locked position...
- Page 3 Features 1 On/off of laser 2 Battery cap 3 Buzzer 4 Laser emitting status controlling button 5 Working indicator 6 Pulse indicator 7 Pulse switch...
-
Page 4: How To Use
Operation instruction 1 Open battery cap and put in 3pcs AA batteries. 2 Switching the laser between lock or level mode according to requirement of applications. Sequence of "Laser" button: All lines&dots on-Only Horizontal line lights-Only Vertical line lights-Both H and V lines on-All 5 dots on, and so on... -
Page 5: Specifications
1 The unit is usually in locked position when it is not in use. Please slide the on/off button to level position or pendulum-locked position when you start to work. 2 Put the laser on leveling surface during the work. 3 If the surface exceeds self-leveling range of ±4°, the self-leveling function can not work well. - Page 6 1 Laser source: semiconductor laser diode 2 Wavelength: 635nm。 3 Output power: ≥1mw。 4 Self-leveling range : 4° ± 0.5° 5 Accuracy of plumb up point: 3mm/10m 6 Accuracy of plumb down point: 6mm/10m 7 Accuracy of left,right&forward points: 4mm/10m 8 Accuracy of cross line: 3mm/10m 9 Power: 3pcs AA batteries 10 Continuous working time: about 8 hours.
