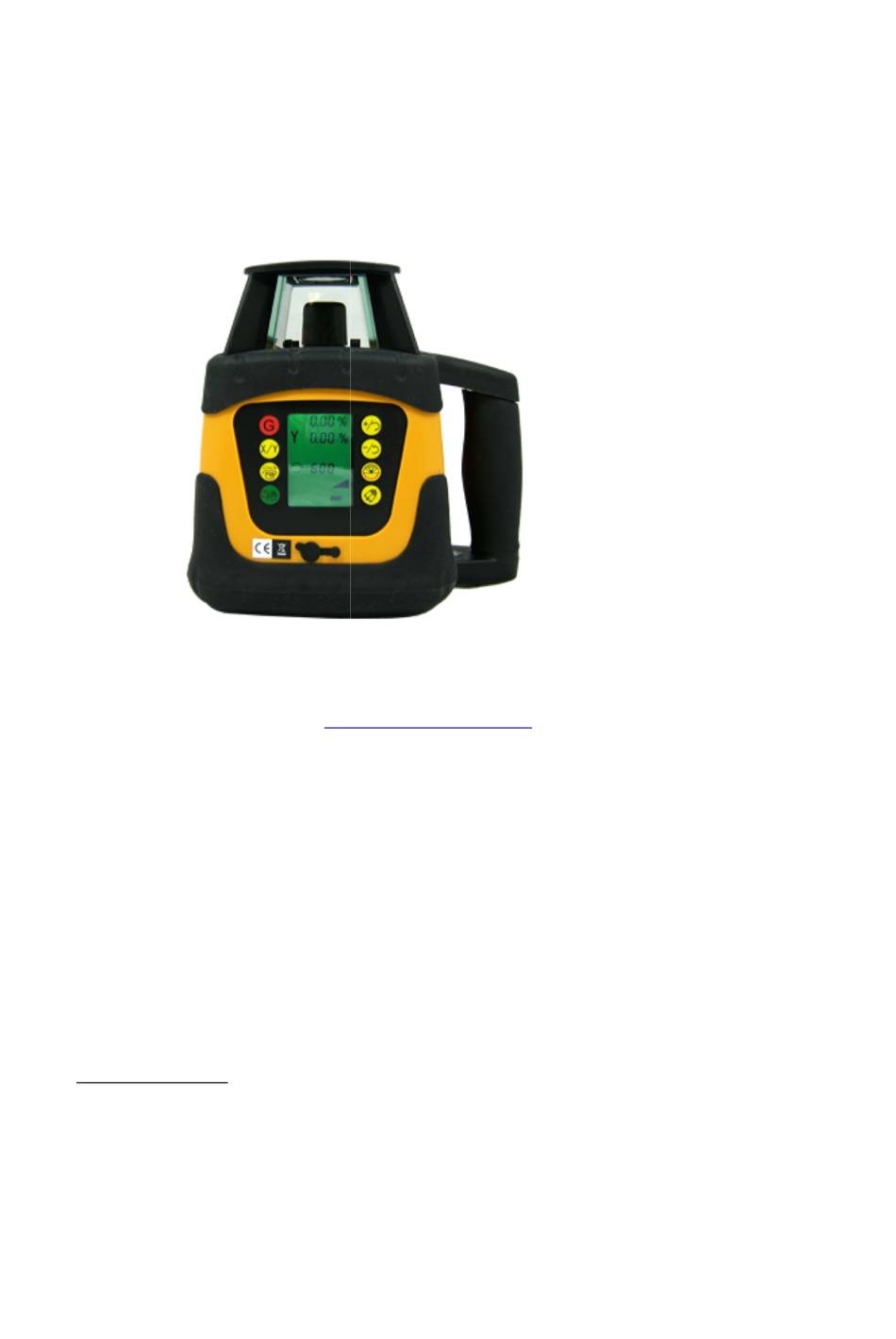

FRE-207
INSTRUCTIONS
from P.R.Engineering Ltd
www.laser-level.co.uk
Tel: 01246 269777

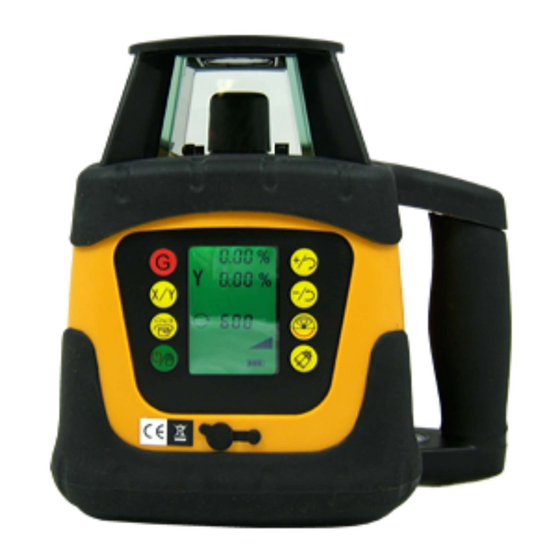

Thank you for purchasing the FRE-207 TRUE GRADE, Rotary laser level kit.
These Instructions are intended to explain the quick basics to operating this
equipment. Please read them in conjunction with the Manufacturer's User
Manual included in the kit. If you need any more help/advice or the
instrument requires calibration or repair, then please contact our Service Dept
on
tel 01246 269 777 or fax 01246 260 007. We would be pleased to help.
Power source:
This is a special battery pack located in the base of the laser. Remove & refit
via a central screw - finger tight (no tools required).
It contains 4pc x "sealed for life" Ni-MH type C, 4000mAh, 1.2V cells. Please
note that this battery pack can be charged either in or outside of the laser.
The Mains Charger (supplied) will charge most batteries in around 7 hours to
give around 20hrs of continuous use. It takes 4 to 5 charge/discharge cycles
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fukuda FRE-207
Summary of Contents for Fukuda FRE-207
- Page 1 P.R.Engineering Ltd www.laser-level.co.uk Tel: 01246 269777 Thank you for purchasing the FRE-207 TRUE GRADE, Rotary laser level kit. These Instructions are intended to explain the quick basics to operating this equipment. Please read them in conjunction with the Manufacturer's User Manual included in the kit.
- Page 2 NOT attempt to recharge them, otherwise serious damage will occur. Positioning the Laser: Mount the FRE-207 on a generally level, firm surface or 5/8” threaded Tripod. To operate correctly this surface must be within +/-5 deg of true horizontal.
- Page 3 For Interior work we suggest using slower speeds, where the laser beam is easier to see by eye; but for Exterior Groundworks – run the FRE-207 @ its max. speed of 600rpm, which gives the best working range when used with the supplied Laser Detector.
- Page 4 Operated via bottom, right-hand yellow button, showing a "picture of a tilted instrument" and repeated on the Remote Control. Once the FRE-207 is ON and rotating in the auto (self) levelled mode, the automatic drift system can be activated. Press the button & TILT wil be displayed on the screen.
- Page 5 Remote Control... Fit the supplied 2pc x AA alkaline batteries, taking care with correct polarity. The Remote’s keypad can set the following functions: 1. Rotating speed in increments; slow for Indoors, fast (max) for Outdoors 2. Scan angles & position around the room. 3.
- Page 6 Positioning the FRE-207 itself in full sun is no problem, but the detector window can in some instances be affected by direct bright sunlight or reflections. So please take extra care! SAFETY PRECAUTIONS: Comply with class 2M/2R laser operating safety procedures. See main Manual.
- Page 7 We offer a full Back-up service including repairs, calibration & usage advice. Accessories for the various Trades are also available - on request. Eg. Tripods, staffs, wall brackets & screeding poles etc. Please contact us: P.R.Engineering Ltd, Unit 35 Bridge Business Centre, Beresford Way, CHESTERFIELD, S41 9FG.
