FRE-102AR
INSTRUCTIONS
from LASER LEVELS ONLINE
www.laser-level.co.uk
Tel: 01246 269777

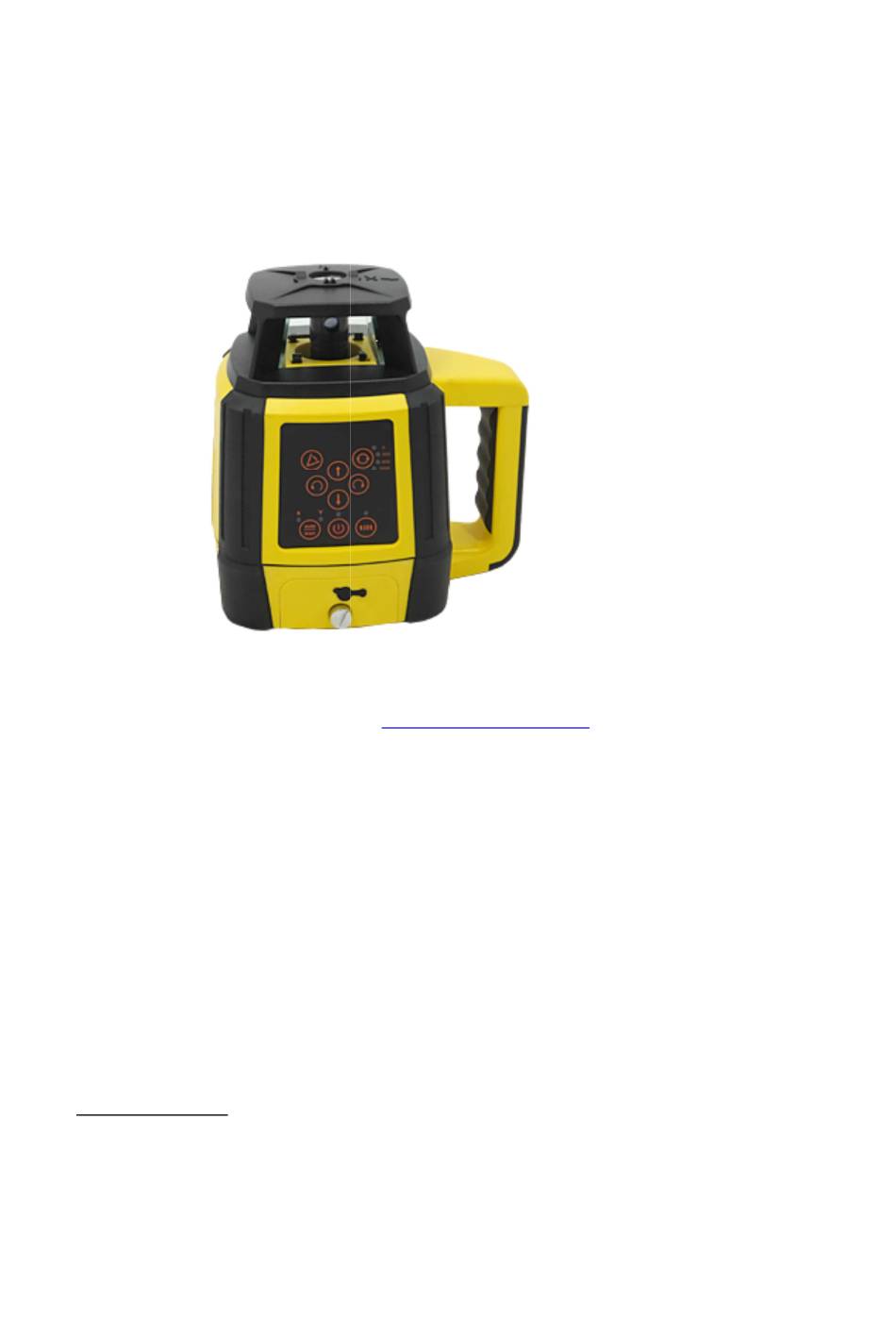

Thank you for purchasing the Fukuda FRE-102AR
RED
beam, rotating laser
level kit.
These instructions are intended to explain the quick basics to operating this
equipment. Please read them carefully.
If you need any more help/advice or the instrument requires calibration or
repair, then please contact our Service Dept on
tel. 01246 269 777 or fax 01246 260 007.
We would be pleased to help.
Power source:
The FRE-102AR has a special rechargeable battery pack located in the front
base of the laser. To change: unscrew the silver lock, slide out to remove &
carefully refit. It contains 4pc x "sealed for life" Ni-MH type C, 4000mAh, 1.2V
cells.
Please note that this battery pack can be charged either in or outside of the
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fukuda FRE-102AR
Summary of Contents for Fukuda FRE-102AR
- Page 1 We would be pleased to help. Power source: The FRE-102AR has a special rechargeable battery pack located in the front base of the laser. To change: unscrew the silver lock, slide out to remove & carefully refit. It contains 4pc x "sealed for life" Ni-MH type C, 4000mAh, 1.2V cells.
- Page 2 Red LED = charging; Green LED = sufficient charge to operate. Even though the Green light is ON, we still recommend a full 8 hour charge. The FRE-102AR can be operated with the charger connected to the mains supply, if required.
- Page 3 For Interior work, we suggest using slower speeds, where the laser beam is easier to see by eye; but for Exterior Groundworks – run the FRE-102AR at its maximum speed of 1,000rpm, which gives the best working range when used with the supplied Laser Detector.
- Page 4 Automatic Drift System (ADS): Operated via bottom, right-hand button, marked "tilt". Once the FRE-102AR is ON and rotating in the auto (self) levelled mode, the automatic drift system can be activated. Press the button & the green LED will illuminate. ADS is now ON.
-
Page 5: Remote Control
Laser Detector & Remote Control: (The remote control is pictured on the right) Remote Control: Fit the supplied 2pc x AA alkaline batteries, taking care with correct polarity. The Remote’s keypad can set the following functions: 1. Rotating speed in increments: slow for Indoors, fast (max) for Outdoors. 2. - Page 6 Positioning the FRE-102AR itself in full sun is no problem but the detector window can, in some instances, be affected by direct bright sunlight or reflections. So please take extra care! SAFETY PRECAUTIONS: Comply with class 2 laser operating safety procedures. See main Manual.
- Page 7 We offer a full Back-up service including repairs, calibration & usage advice. Accessories for the various Trades are also available - on request. eg. Tripods, staffs, poles kits & wall brackets etc. To contact us: Laser Levels Online, Unit 35, Bridge Business Centre, Beresford Way, CHESTERFIELD, S41 9FG.
