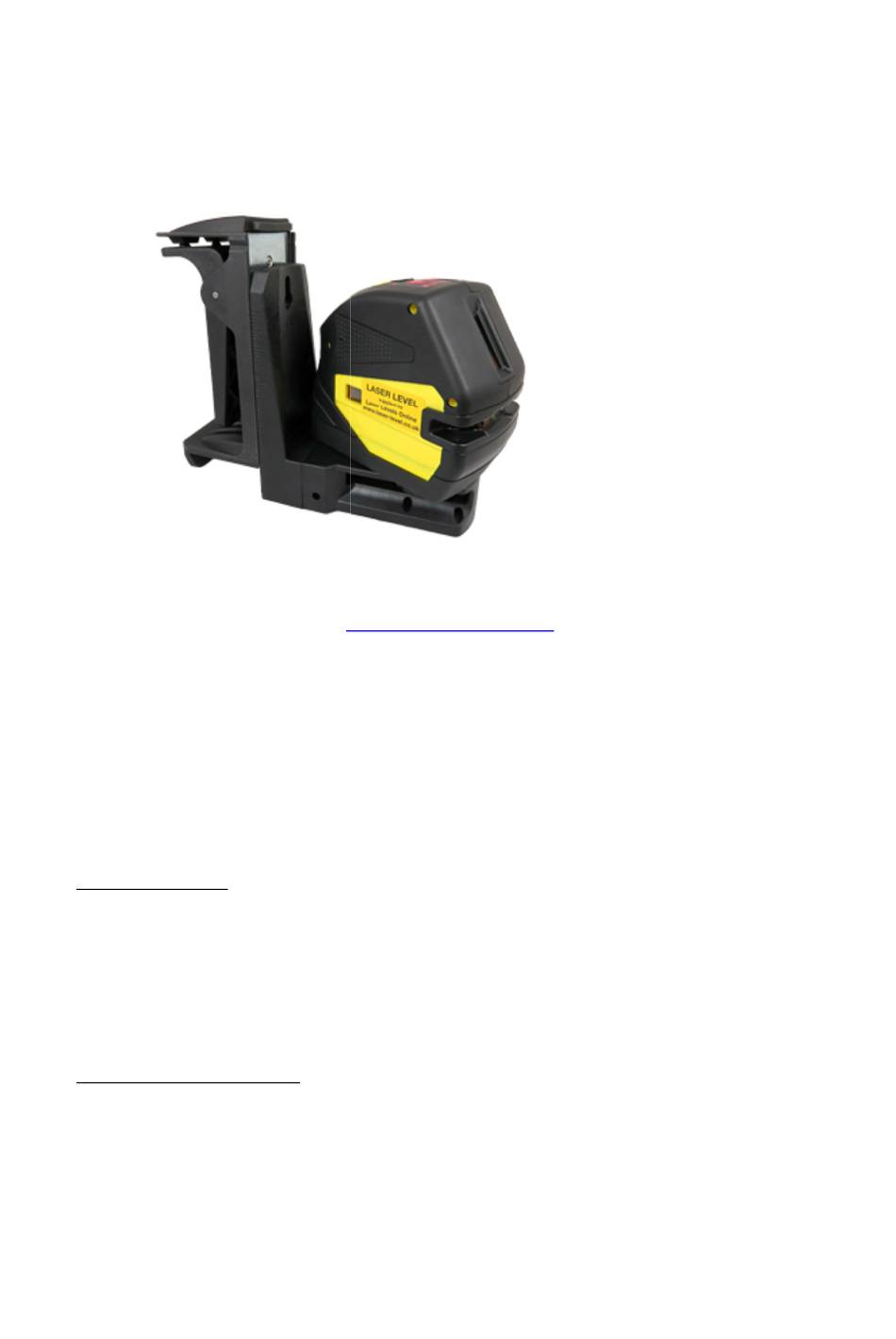

FDG-232R

INSTRUCTIONS

from Laser Levels Online

www.laser-level.co.uk

Tel: 01246 269 777

Thank you for purchasing the FDG-232R red beam, laser level kit.

These instructions are intended to explain the quick basics to operating this

equipment. If you need any more information, or the unit requires calibration

or repair, then please contact our Service Dept on tel 01246 269 777 or

fax 01246 260 007. Email: sales@laser-level.co.uk We are here to help.

Power source:

The FDG-232R accepts 4pc x type AA rechargeable or alkaline (supplied)

batteries. Ensure correct polarity when fitting. Rechargeable batteries have to

be charged outside the laser instrument. There is no provision for charging

within the laser.

Mount the FDG-232R on a generally level, firm surface or a 1/4" threaded

laser accessory eg. a Floor to Ceiling Pillar or Tripod. You may need to use an

adapter. To operate correctly, this surface must be within +/-4 deg of true

horizontal.

If the laser alarms (ie. beeps every second), then it is outside its levelling

range.

Table of Contents

Do you have a question about the FDG-232R and is the answer not in the manual?

Page 1 Positioning the Laser: Mount the FDG-232R on a generally level, firm surface or a 1/4” threaded laser accessory eg. a Floor to Ceiling Pillar or Tripod. You may need to use an adapter. To operate correctly, this surface must be within +/-4 deg of true horizontal.
Page 2 The instrument has a fully automatic pendulum system to set true level. (A slide switch / transit latch locks the pendulum when not in use.) IF THE FDG-232R EMITS CONTINUOUS RED LASER LINES & DOTS, THEN THEY WILL ALL BE TRUE LEVEL & PLUMB.
Page 3 Use with or without its staff mounting bracket. Spare brackets are available. How to use the Detector: SWITCH ON the FDG-232R's button marked *PULSE. Face the detector towards the laser & find the centreline of the laser lines via the red pick-up window. Obtain a continuous tone for true level. Mark out.
Page 4 General Advice: This is an accurate measuring device - so to give good service, look after it! Prevent the FDG-232R from receiving severe knocks, bangs or vibration. Store the laser & its accessories in the supplied, foam-lined carry case. If wet, dry before storing & keep in storage temperatures between 5 - 25 deg For long-term storage, remove all batteries - to prevent any internal damage.
Page 5 Tel: 01246 269 777 / Fax: 01246 260 007 sales@laser-level.co.uk www.laser-level.co.uk "Laser Levels Online" is a trading division of P. R Engineering Ltd...
