FLE-444G
INSTRUCTIONS
from Laser Levels Online
www.laser-level.co.uk
Tel: 01246 269 777

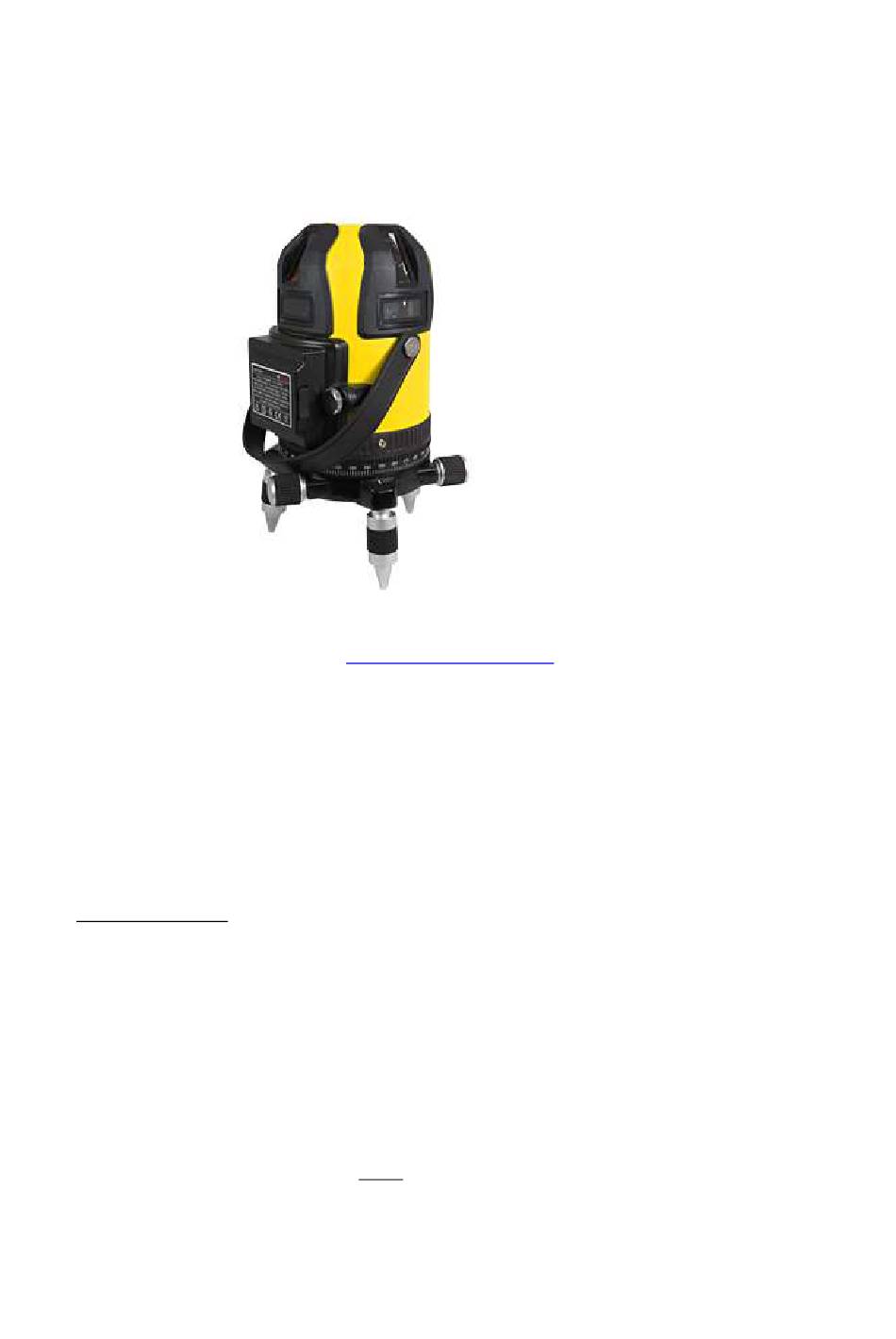

Thank you for purchasing the FLE-444G automatic Multi-line Laser Level kit.
These instructions are intended to explain the quick basics to operate this
equipment. If you need any more information, or the unit requires calibration
or repair, then please contact our Service Dept on tel. 01246 269 777 or
fax 01246 260 007. Email: sales@laser-level.co.uk We are here to help.
Power source:
The FLE-444G is fitted with a high capacity 2,700mAh Lithium-ion (Li-ion)
7.4V battery. Ensure it is located securely and NEVER substitute it for a
differently rated Li-ion battery.
Use the supplied Mains Charger to charge the battery in ambient
temperatures above 5 deg C. The charger itself has no LED indicator.
Plug the charger into a 230V socket and connect DC plug into the side
mounted Li-ion battery pack. Note the charging LED:
RED indicator denotes the battery is CHARGING.
GREEN indicator denotes battery is partially CHARGED. Further charging to
reach full capacity is recommended, taking approx 2-4 hrs. Usually 80%
1
Advertisement
Table of Contents
Related Manuals for Fukuda FLE-444G
Summary of Contents for Fukuda FLE-444G
- Page 1 Tel: 01246 269 777 Thank you for purchasing the FLE-444G automatic Multi-line Laser Level kit. These instructions are intended to explain the quick basics to operate this equipment. If you need any more information, or the unit requires calibration or repair, then please contact our Service Dept on tel.
- Page 2 Positioning the Laser: Mount the FLE-444G on a generally level, firm surface or a 5/8” threaded laser accessory eg. a Tripod or a Floor to Ceiling Pillar. You may need to use the supplied post adapter. To operate correctly, this surface must be within +/-4 deg of true horizontal.
- Page 3 80m with the FD-9G line detector. To set Squaring: The FLE-444G does have a good squaring facility to set-out true 90 degrees. Place the instrument on the floor & operate all the vertical lines. These will project along the floor (to set floor squaring), up the walls opposite & square on the ceiling above too.
- Page 4 Use the detector with or without its staff mounting bracket. Model FLE-444GD with Detector: Switch on both the FLE-444G & FD-9G detector. The laser has built-in "pulsed output circuitry". This model has the pulsed output ON all the time. At a distance of 3m+ away, face the detector towards the laser & locate the centreline of the laser beams via the green pick-up window.
- Page 5 If it gets wet during usage, dry before storing & keep in storage temperatures between 5 - 25 deg C. For long-term storage, remove the battery - to prevent any internal damage. There are NO User serviceable parts. We offer a full back-up Service including calibration & usage advice. Accessories for the various Trades are also available - on request.
