FLG-411QG
INSTRUCTIONS
from Laser Levels Online
www.laser-level.co.uk
Tel: 01246 269 777

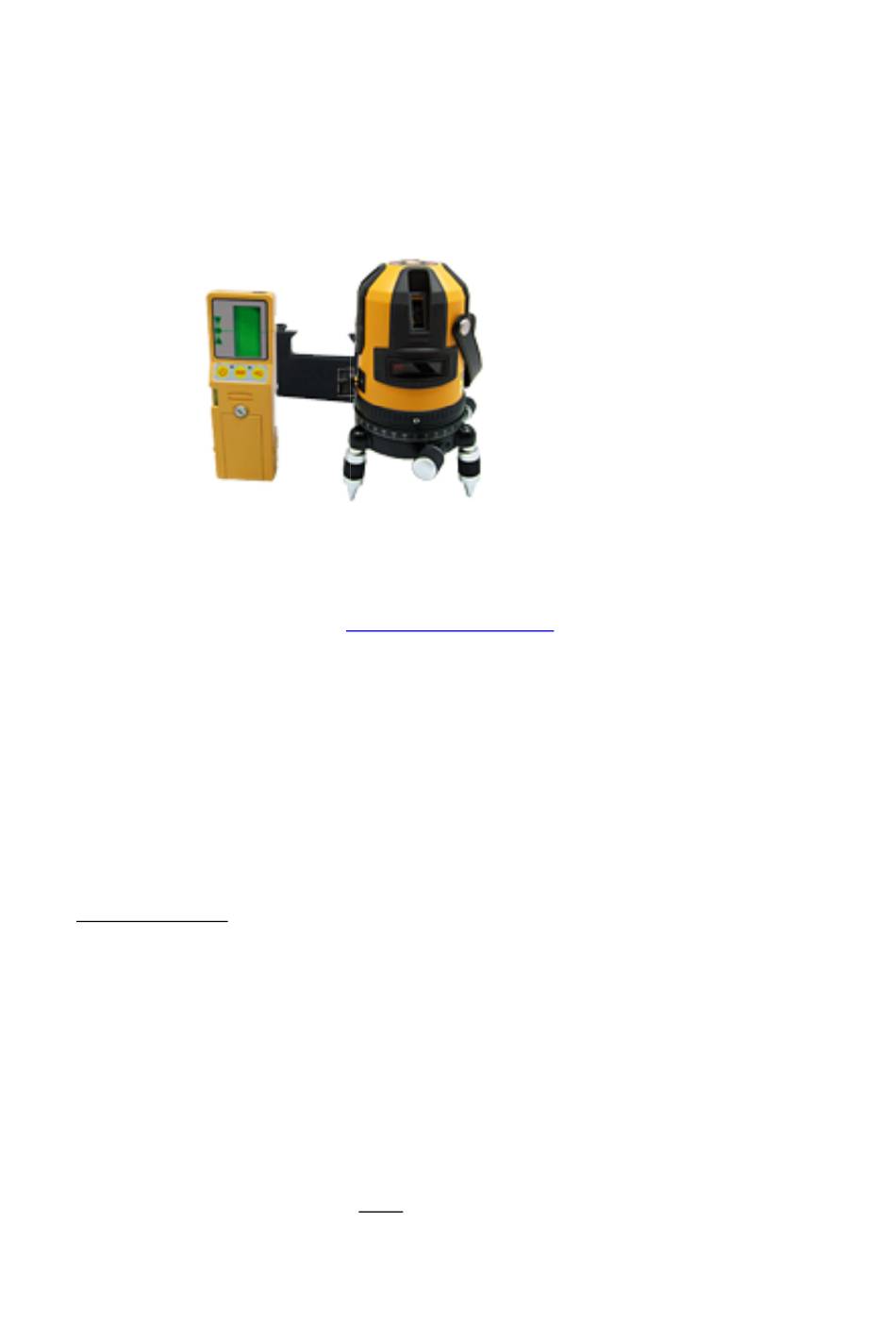

Thank you for purchasing the FLG-411QG automatic Cross Line Laser Level
kit.
These instructions are intended to explain the quick basics to operating this
equipment. If you need any more information, or the unit requires calibration
or repair, then please contact our Service Dept on tel. 01246 269 777 or
fax 01246 260 007. Email: sales@laser-level.co.uk We are here to help.

Power source:

The FLG-411QG is fitted with a high powered 1750mAh Lithium-ion (Li-ion)
battery. Ensure it is located securely and NEVER substitute it for a different
rated Li-ion battery.
Only use the supplied Mains Charger (BX-1202000) to charge the battery in
ambient temperatures above 5 deg C. The Charger itself has no LED indicator.
Plug the Charger into a 230V socket and connect DC plug into the side
mounted Li-ion battery pack. Note the charging LED:
RED indicator denotes the battery is CHARGING.
GREEN indicator denotes battery is partially CHARGED. Further charging to
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLG-411QG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fukuda FLG-411QG

  • Page 1 Laser Levels Online www.laser-level.co.uk Tel: 01246 269 777 Thank you for purchasing the FLG-411QG automatic Cross Line Laser Level kit. These instructions are intended to explain the quick basics to operating this equipment. If you need any more information, or the unit requires calibration or repair, then please contact our Service Dept on tel.
  • Page 2 Mains operated equipment is prohibited on-site. Positioning the Laser: Mount the FLG-411QG on a generally level, firm surface or a 5/8” threaded laser accessory eg. a Floor to Ceiling Pillar or Tripod. You may need to use the adapter.
  • Page 3 To set Squaring: The FLG-411QG does have a squaring facility to set-out 90 degrees. Place the instrument on the floor & operate the vertical lines. These will project along the floor (to set floor squaring), up the walls opposite & square on the ceiling above too.

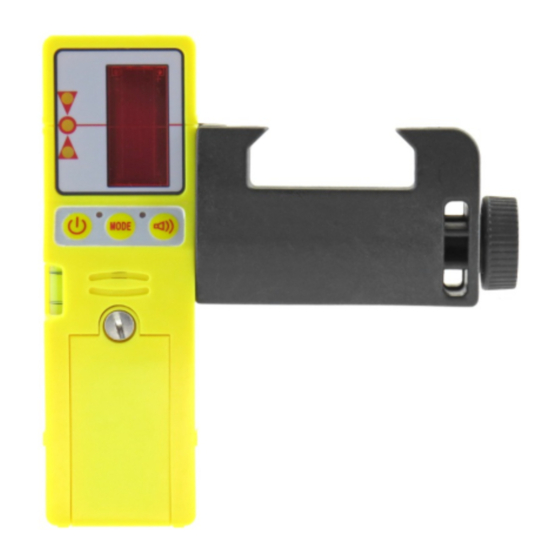

  • Page 4 Use with or without its staff mounting bracket. Spare brackets are available. How to use the Detector: Switch on the FLG-411QG & FD-9G detector. Your laser has either a 2-button or 3-button keypad. Button 3 is marked "outdoor" for use with the detector. A 2-button laser has built-in "pulsed output", automatically giving a signal to...
  • Page 5 We offer a full Back-up service including calibration & usage advice. Accessories for the various Trades are also available - on request. eg. Floor-to-ceiling Pillar kits, tripods, staffs, wall brackets & adapters etc. To contact us: Laser Levels Online, Unit 35 Bridge Business Centre, Beresford Way, CHESTERFIELD, S41 9FG.
