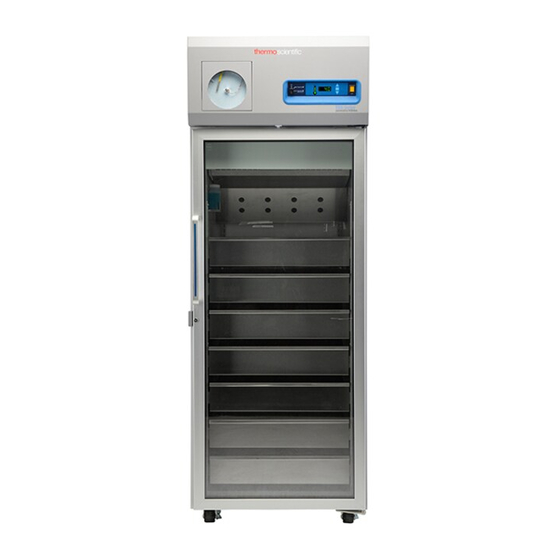

Blood Bank Refrigerators
TSX Series
Installation and Operation
327930H01
Rev. E
March 2019
Visit us online to register your warranty
www.thermofisher.com/labwarranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermo Scientific TSX Series

  • Page 1 Blood Bank Refrigerators TSX Series Installation and Operation 327930H01 Rev. E March 2019 Visit us online to register your warranty www.thermofisher.com/labwarranty...
  • Page 2 IMPORTANT Read this instruction manual. Failure to follow the instructions in this manual can result in damage to the unit, injury to operating personnel, and poor equipment performance. CAUTION All internal adjustments and maintenance must be performed by qualified service personnel. Material in this manual is for informational purposes only.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents Models ..................1 Safety Precautions..............2 Unpacking.................5 Packing List ................6 General Recommendations .............7 Temperature Monitoring ............7 Intended Use ................7 Operating Standards ...............8 Unit Specifications..............9 Installation................10 Location ................10 Wiring ................14 Shelves ................15 Drawers ................15 Baskets ................
  • Page 4 Table of Contents Cleaning the Cabinet Interior ..........37 Cleaning the Condenser Filter..........37 Cleaning the Condenser ............37 Automatic Defrost ..............38 Gasket Maintenance ............38 Alarm Battery Maintenance ..........38 Preparation for storage ............38 Troubleshooting ..............39 End of Life Care..............41 Warranty ................42...
  • Page 5: Models

    Refer to Section 6.1 for details on the voltage specifications for the various models. Table 1. Applicable Models Energy Star Unit Model (*) Model (*) Thermo Scientific - TSX1204B* V/Y/Z Thermo Scientific - TSX2304B* V/Y/Z Thermo Scientific - TSX3004B* V/Y/Z Thermo Scientific - TSX5004B*...
  • Page 6: Safety Precautions

    Before using it, verify that this product is suitable for its intended use. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 7 Class A digital device. Class A covers devices for usage in all establishments other than domestic and that are not directly connected to a low voltage power supply network, which supplies domestic environment. This ISM device complies with Canadian ICES-001. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 8 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 9: Unpacking

    Make a written request for inspection to delivering carrier. This must be done within 15 days after delivery. Then file a claim with the carrier. Do not return goods to the manufacturer without written authorization. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 10: Packing List

    QC temperature graph and test log • Calibration information Other items with your unit include: • Power cord • Anti-Tip Bracket Kit (See Section 7.1.2, Table 3 for applicable models) • Baskets, Shelves or Drawers • Thermal Bottles TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 11: General Recommendations

    CAUTION: Storage of sealed or unsealed corrosive substances may cause the interior of the unit to corrode. If stored for long periods of time, they could become unsealed due to moisture content of the refrigerator environment. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 12: Operating Standards

    The refrigerator must not be connected to a GFCI (Ground Fault Circuit Interrupter) protected outlet as it may be subject to nuisance tripping. Operation outside of these conditions will affect the performance of the unit and the samples stored inside. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 13: Unit Specifications

    14 / 770 96.0 x 143.5 x 199.4 cm 50D / 50Z 208-230 V 4.8 A 60 Hz/1 353 (779) (55 per (37.8 x 56.5 x 78.5 in) drawer) 208-230 V 4.6 A 50 Hz/1 Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 14: Installation

    Injury and damage to the equipment and contents may result from the refrigerator tipping. This refrigerator has been designed to meet all recognized industry tip standards for all normal conditions when anti-tip bracket is installed and properly engaged. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 15 For installation on floors other than wood and concrete, please contact technical support. The use of this bracket does not prevent the tipping of the refrigerator when not properly installed. Figure 1. Materials Supplied Label Description Bracket Bolts Anchors Instructions and Installation Template Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 16 Locate 1/2" bolt attached to bottom of cabinet. b. Unscrew 1/2" bolt until there is 1/2" clearance between floor and head of bolt as shown in Figure 2 below. c. Tighten lock nut against bottom of unit. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 17 Lock the casters. 5. Checking the Installation Check to see if the anti-tip bracket is installed properly by shining light under cabinet and confirming bolt in cabinet is secured by bracket on floor. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 18: Wiring

    , CEE 7/7, 16 A/250 V CAUTION: Never cut the grounding prong from the service cord plug. If the prong is removed, the warranty is invalidated. CAUTION: In an emergency, the power cord is a disconnect device. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 19: Shelves

    Note The drawers fit snugly between the slides. Push the back to the drawer from underneath to remove the drawer. 3. Raise the back of the drawer almost to a vertical position and disengage the front mounting clips from the sides. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 20 Make sure both the drawer tabs are aligned with the slots on the slides before pushing the drawer down between the slides. CAUTION: Be careful when reinstalling the drawers to avoid possible pinching. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 21 Figure 5. Clip Removal 3. Lift up the slide at the front. The slide is free to move from the front pilaster. Figure 6. Front of slide Removal Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 22 Figure 8. Slide Installation CAUTION: Ensure the slide is level. If the slide is not seated in a level orientation, the drawers/baskets will not function as intended. This could cause injury or product damage. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 23: Baskets

    The baskets must be removed in order to adjust the position of the slides. The procedure for removing, reinstalling, and changing position of the baskets can be found in Section 7.4.1, Section 7.4.2, and Section 7.4.3. The maximum basket capacity is 27 kg (60 lbs). Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 24: Temperature Sensor Bottles

    There are port holes in the walls of the cabinet to help facilitate routing of independent temperature sensors. Be sure to seal the holes after routing the wires to prevent undesired air exchange. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 25: Remote Alarm (Optional)

    1. Connect the COMMON terminal on the cabinet switch to the COMMON wire on the alarm. 2a. To get an alarm when the switch contacts open, connect the OPEN ON FAIL terminal on the cabinet to the OPEN ON FAIL wire on the alarm. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 26: Final Checks

    2. Check the positions of the shelves, drawers and baskets. If you want to adjust the positions, see instructions in Section 7.3, Section 7.4 and Section 7.5. 3. Verify that the unit is connected to a dedicated circuit. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 27: Startup

    Ensure clearance between the top of the cargo and the bottom of the shelf/drawer/basket. Lack of clearance may affect unit performance or impede operation of drawer/basket. Keep cargo within the bounds of the shelf/drawer/basket. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 28 The floor of the cabinet should not be loaded. • Never load the unit above the load limit line. This is important to ensure that air can circulate properly and evenly distribute the temperature throughout the interior. Figure 11. Load Limit Line TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 29: Operation

    For example, suppose that the cabinet temperature setpoint is 4°C and that the warm and cold alarm setpoints are 5.5°C and 2°C. Then the number of bars illuminated indicates cabinet temperature as follows: Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 30 10. Audible alarm - illuminates during warm and cold alarm conditions. 11. Light Switch (glass doors only) - pushbutton switch to toggle the refrigerator light on and off without opening the door. Light will always come on when the door is opened. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 31: Display Functions

    (warm Alarm Test alarm. Key switch must for approximately 5 then cold), alarms flash and sound as be in alarm mode seconds. appropriate. Alarms clear when test is completed. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 32: Programming Functions

    4°C operation. Be sure to understand your product requirements prior to making any adjustments to the service parameter values. Call technical support if you have any questions prior to making any adjustments to service parameter values. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 33 The maximum amount of time the defrost cycle will run in Press Scan ( dEF dur Defrost Duration minutes. Defrost Temp The maximum temperature that the defrost probe can reach Press Scan ( dEF Hi before stopping the defrost cycle. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 34 3. Continue to hold buttons for approximately 10 seconds. 4. Release buttons and turn keyswitch to “OFF” position. 5. Turn keyswitch to “ON” position. CAUTION: Performing this reset will overwrite any changes that were made after the receipt of this unit. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 35: Temperature Settings

    Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 36 During a low battery condition, the low battery icon will illuminate. The alarms can be reset by pressing and holding the simultaneously. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 37: Chart Recorder

    Note The recorder may not respond until the system reaches temperatures within the recorder’s range. Figure 13. Chart Recorder Label Description Pressure Sensitive Chart Buttons Imprinting Stylus Reference Mark Hub-Nut and Retaining Wire Chart Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 38: Changing Chart Paper

    The LED indicator glows continuously when main power is functioning and the battery is charged. When the battery is low, the LED flashes to indicate that the battery needs to be changed. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 39: Calibration And Adjustments

    (#1 and #2 from Figure 14) for approximately 5 seconds. Note The stylus does not begin to move until the button is held for approximately 5 seconds. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 40: Temperature Transmitter (Optional)

    Transmitter To connect your remote temperature monitoring system to the unpowered temperature transmitter, refer to the diagram attached on the back of the unit. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 41: Maintenance

    CAUTION: Never clean around the condensers with your fingers. Some surfaces are sharp. The condenser is located in the top rear of the machine compartment. To clean the condenser, complete the following steps: 1. Disconnect the power. 2. Remove the filter. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 42: Automatic Defrost

    322533H01. 12.7 Preparation for If the unit is going to be stored in an off condition, allow the unit to warm up storage and dry out with the door open before moving into storage. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 43: Troubleshooting

    Seal any gaps. Verify nothing is placed through the door seal such as a sensor. Check the door Door seal is broken seal following instructions in Section 12.5 Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 44 “E05” on display Check for loose probe connector. Replace ambient probe. Failure Upper Bottle Probe “Err” on display Check for loose probe connector. Replace upper bottle probe. Failure Lost “---” on display Call customer service. Communication TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 45: End Of Life Care

    2. Remove the cabinet door to help prevent entrapment inside of a unit. 3. Have a certified technician remove the refrigerant and compressor, then drain the compressor and oil from the system. Dispose of components following local regulations. Thermo Scientific TSX Blood Bank Refrigerators...
  • Page 46: Warranty

    WARRANT THAT THE PRODUCTS ARE ERROR-FREE OR WILL ACCOMPLISH ANY PARTICULAR RESULT. THERMO FISHER SHALL NOT BE LIABLE FOR ANY INDIRECT OR CONSEQUENTIAL DAMAGES INCLUDING, WITHOUT LIMITATION, DAMAGES TO LOST PROFITS OR LOSS OF PRODUCTS. TSX Blood Bank Refrigerators Thermo Scientific...
  • Page 47 Further information on our compliance with these Directives, the recyclers in your country, and information on Thermo Scientific products which may assist the detection of substances subject to the RoHS Directive are available at www.thermofisher.com/WEEERoHS...
  • Page 48 Thermo Fisher Scientific Inc. 275 Aiken Road Asheville, NC 28804 United States www.thermofisher.com 327930H01 Rev. E Contact Us North America: 866-984-3766 Europe: France +33 2 2803 2180 Germany +49 9184 90 9640 UK/Ireland + 44 870 609 9203 Asia: China +86 21 6865 4588 India 1800 22 8374 Japan +81 45 453 9220...
