FortiGate-5001FA2 security system

FortiGate-5001FA2 security system
FortiGate-5000 Series Introduction
01-30003-0378-20061207
The FortiGate-5001FA2 security system is a high-performance FortiGate security
system with a total of 8 front panel Gigabit ethernet interfaces and two base
backplane interfaces. Use the front panel interfaces for connections to your
networks and the backplane interfaces for communication between
FortiGate-5000 series modules over the FortiGate-5000 chassis backplane.
You can also configure two or more FortiGate-5001FA2 modules to create a high
availability (HA) cluster using the base backplane interfaces for HA heartbeat
communication through chassis backplane, leaving all eight front panel gigabit
interfaces available for network connections.
FortiGate-5001FA2 front panel interfaces 1 and 2 also include accelerated packet
forwarding and policy enforcement for faster small packet performance.
The FortiGate-5001FA2 module also supports high-end FortiGate features
including 802.1Q VLANs, multiple virtual domains, 802.3ad aggregate interfaces,
and FortiGate-5000 chassis monitoring.

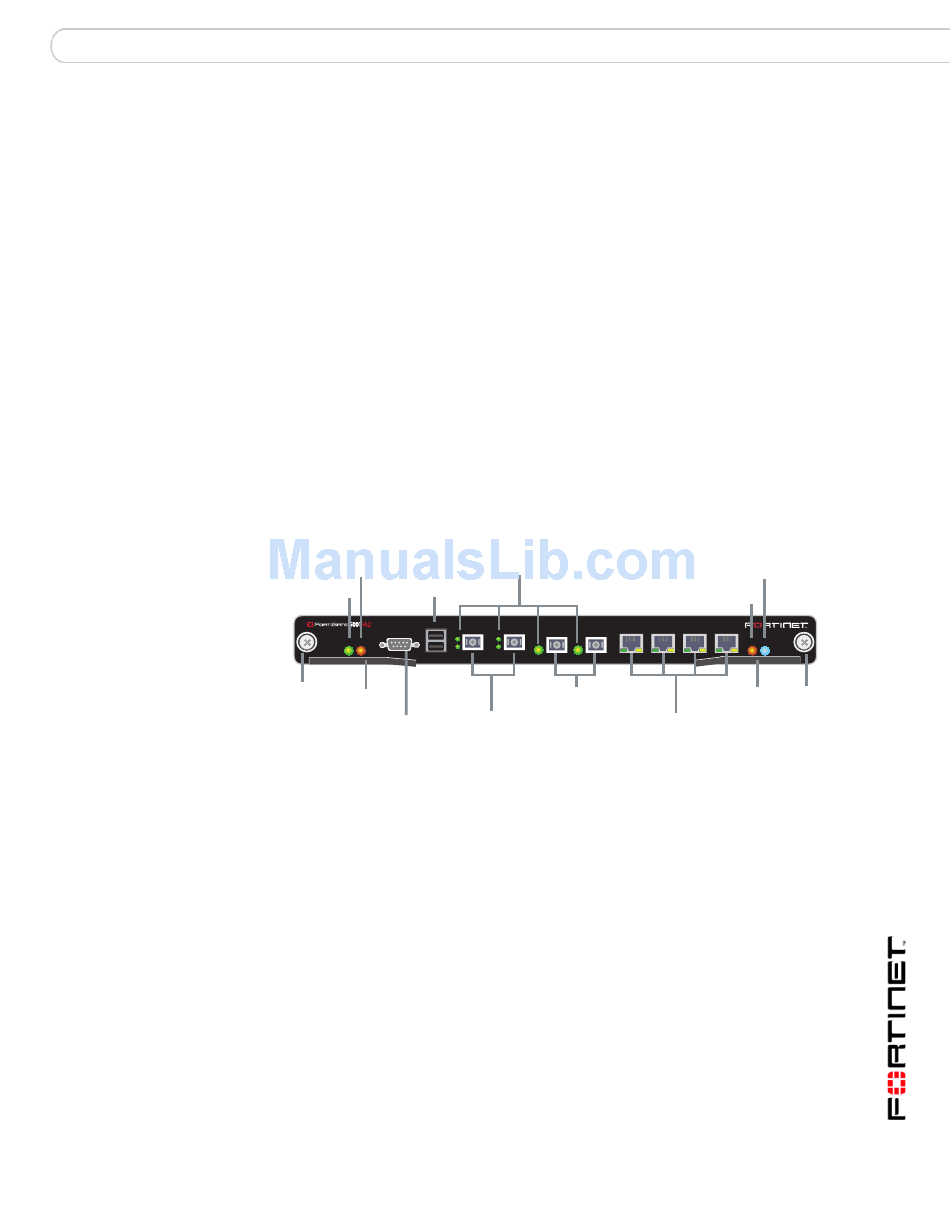

Figure 9: FortiGate-5001FA2 front panel
Flash Disk
Access
USB
Power
USB
CONSOLE
PWR ACC
Mounting Extraction
Knot Lever
RS-232 1 2 SPF Gigabit
Serial Fiber or Copper
Accelerated
The FortiGate-5001FA2 module includes the following features:
• A total of eight front panel gigabit interfaces
• Two accelerated packet forwarding and policy enforcement gigabit
interfaces that can accept Small Formfactor Pluggable (SFP) fiber or
copper gigabit transceivers (interfaces 1 and 2)
• Two gigabit interfaces that can accept SFP fiber or copper gigabit
transceivers (interfaces 3 and 4)
• Four 10/100/1000Base-T gigabit copper network interfaces (interfaces 5, 6,
7, 8)
• Two base backplane gigabit interfaces (port9 and port10) for HA heartbeat and
data communications across the FortiGate-5000 chassis backplane.
• DB-9 RS-232 serial console connection
• One USB connector
• Mounting hardware
• LED status indicators
Link/Traffic
1 2 3 4 5
3 4 SPF Gigabit
Fiber or Copper
Gigabit Copper
Module
Position
Status
6 7 8
STA IPM
Extraction Mounting
Lever Knot
5 6 7 8
