FortiGate-5000 Series Introduction
01-30003-0378-20061207
You can install one or two FortiGate-5000 series modules in the two slots of the
FortiGate-5020 ATCA chassis. The FortiGate-5020 is a 4U chassis that contains
two redundant AC to DC power supplies that connect to AC power. The
FortiGate-5020 chassis also includes an internal cooling fan tray. If both slots
contain FortiGate-5001SX modules, the FortiGate-5020 chassis provides a total
of 16 Gigabit ethernet FortiGate interfaces.
If you install the same FortiGate-5000 series module in both slots, you can
configure the modules to operate as an HA cluster. HA heartbeat communications
between the modules uses the FortiGate-5020 backplane. No extra switching or
other connections are required.
The FortiGate-5020 chassis can only be connected to AC power. Two redundant
FortiGate-5020/5050 power supplies are factory installed in the FortiGate-5020
chassis.
Figure 5
shows the front of a FortiGate-5020 chassis. Two FortiGate-5002FB2
modules are installed. The FortiGate-5020/5050 power supplies are factory
installed behind the panel at the top of the chassis. The power LEDs for the power
supplies are visible on the front panel as well.

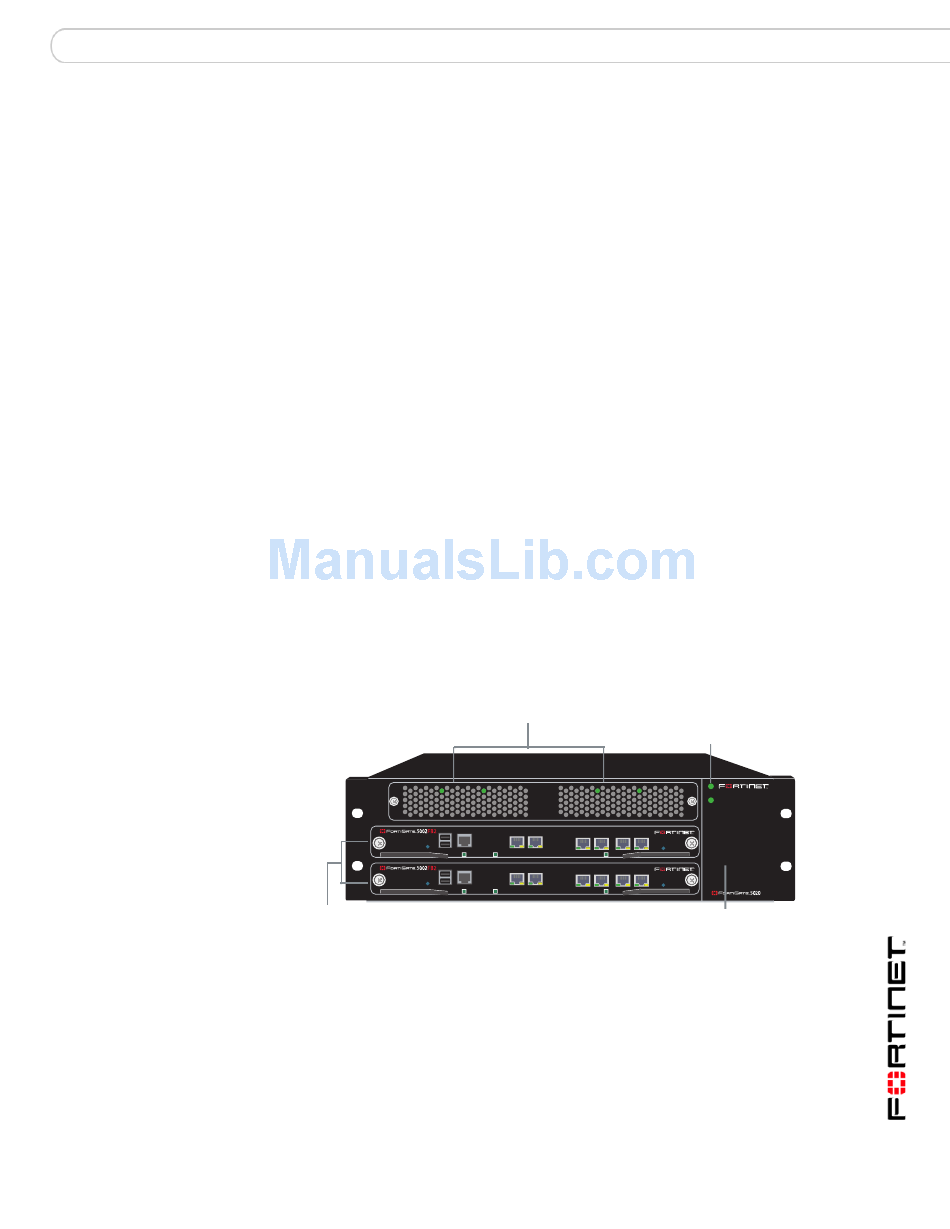

Figure 5: FortiGate-5020 front panel with two FortiGate-5002FB2 modules
Hot-swappable FortiGate-5020/5050
power supplies (behind panel)
PSU A
USB
CONSOLE
RESET
USB
CONSOLE
RESET
FortiGate-5002FB2
modules
PSU B
1
2
6
3
5
4
5
6
STATUS
PWR
IPM
1
2
6
3
5
4
5
6
STATUS
PWR
IPM
Hot swappable cooling fan tray
(accessable from back panel)
FortiGate-5020 front panel
Power LEDs
PSU A
PSU B
ALT
ON/OFF
ALT
ON/OFF
