FortiGate-5050 back panel

FortiGate-5050 back panel
16
Also visible on the front of the FortiGate-5050:
• The location of the hot swappable FortiGate-5050 cooling fan tray behind
panel.
• Power LED.
• ESD socket, used for connecting an ESD wrist or ankle band when working
with the chassis.
Caution: Do not operate the FortiGate-5050 chassis with open slots on the front panel. For
!
optimum cooling performance and safety, the slots must contain a FortiGate-5000 series
module or an air baffle slot filler. As well the removable power supply panel must be
installed over the power connectors on the back of the chassis.
Figure 4 shows the back of a FortiGate-5050 chassis. The FortiGate-5050 chassis
back panel includes two redundant -48V to - 58V DC power input connectors
labelled Input A and Input B. The power input connectors provide redundant DC
power connections for the FortiGate-5050 chassis and distribute DC power to the
fan tray and the FortiGate-5000 series modules installed in the FortiGate-5050
chassis. Each power input connector includes a 24 Amp circuit breaker that also
functions as an on/off switch for the power input connector.
If you require redundant power you should connect both power input connectors
to DC power. If redundant power is not required, you should connect power input
connector A to DC power. When operating, the power input connectors are
covered with clear protection plates.

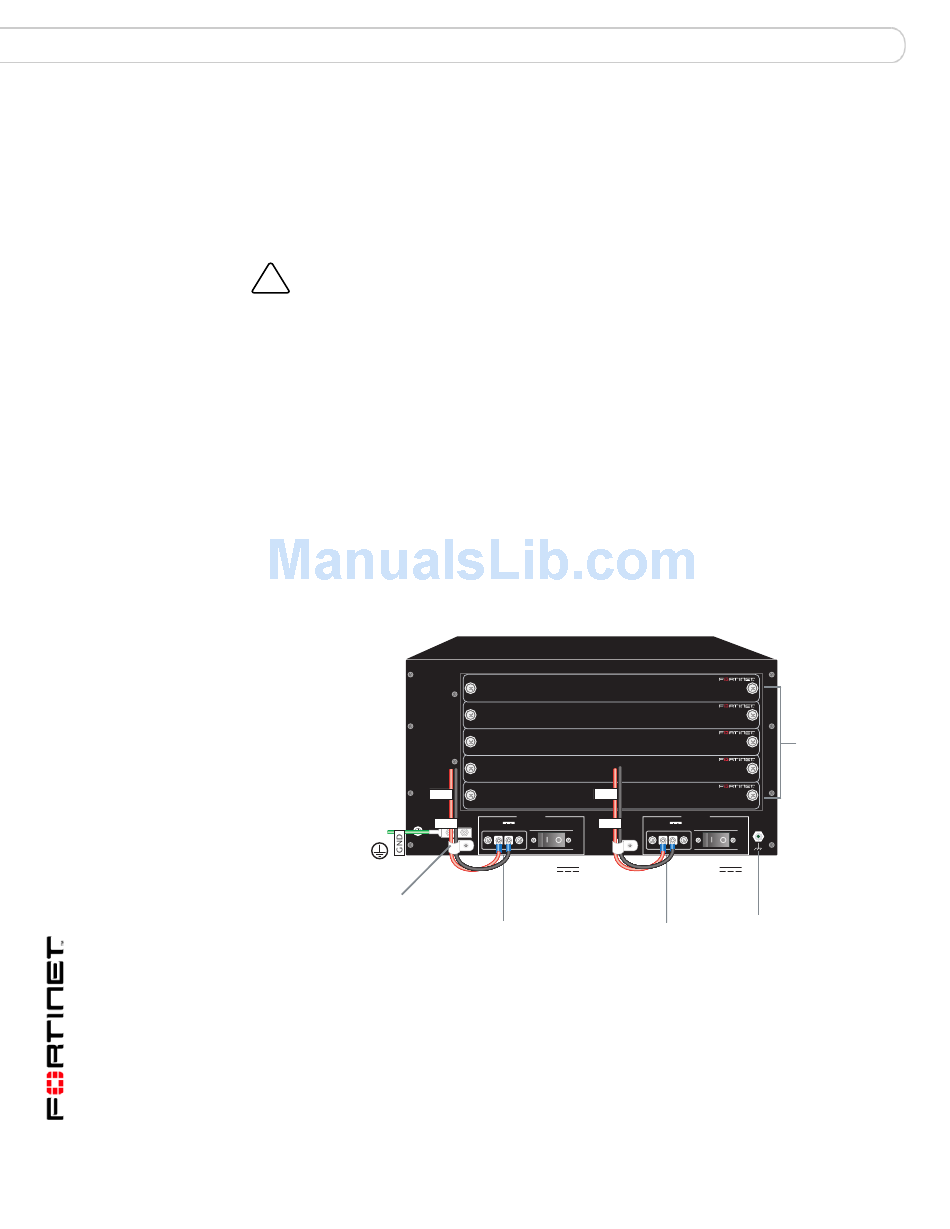

Figure 4: FortiGate-5050 chassis back panel
RTN
Ground
-48V
Connector
(green)
Positive
(RTN)
Power
wire
fixture
The back panel includes the FortiGate-5050 chassis ground connector which
must be connected to Data Center ground. Use the power wire fixtures for
securing and managing DC power wires. The FortiGate-5050 chassis also
includes an ESD socket on the back panel.
5
4
3
2
RTN
1
INPUT A
-48V
-48V
RTN (-DC IN)
24
AMP
-48V
Positive
(-DC in)
(RTN)
(black)
(red) (red)
DC Power
Input A
FortiGate-5050 chassis
Backplane
slot filler
panels
INPUT B
-48V
RTN (-DC IN)
24
AMP
-48V
(-DC in)
(black)
ESD socket
DC Power
Input B
