FortiGate-5000 Series Introduction
01-30003-0378-20061207
You can install up to five FortiGate-5000 series modules in the five slots of the
FortiGate-5050 ATCA chassis. The FortiGate-5050 is a 5U 19-inch rackmount
ATCA chassis that contains two redundant DC power connections that connect to
-48 VDC Data Center DC power. The FortiGate-5050 chassis also includes a hot
swappable cooling fan tray. If all five slots contain FortiGate-5005FA2,
FortiGate-5001SX, or FortiGate-5001FA2 modules, the FortiGate-5050 chassis
provides a total of 40 Gigabit ethernet FortiGate interfaces.
You can also install a FortiSwitch-5003 module in the FortiGate-5050 chassis to
provide HA heartbeat communications. A single FortiSwitch-5003 module can
provide HA heartbeat communications for up to three FortiGate-5000 series
modules in the chassis. You can add a second FortiSwitch-5003 module for
redundancy. The first FortiSwitch-5003 module is installed in slot 2, the second in
slot 1. If FortiSwitch-5003 modules are included you can install up to three
FortiGate-5000 series modules in slots 3, 4, and 5.
The FortiGate-5050 chassis requires -48VDC Data Center DC power. If DC power
is not available you can install a FortiGate-5053 power converter tray (purchased
separately) with FortiGate-5020/5050 power supplies.

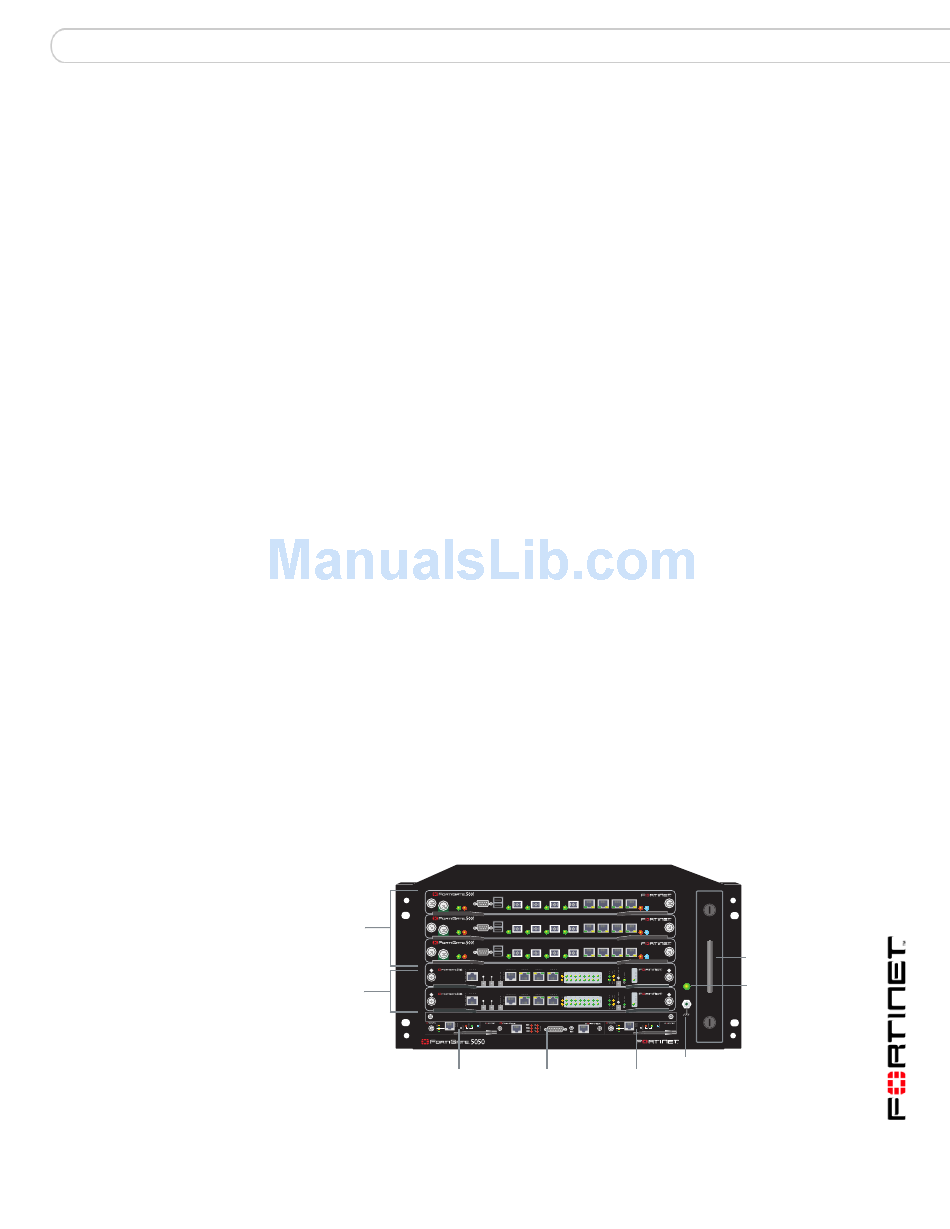

Figure 3 shows the front of a FortiGate-5050 chassis. Two FortiSwitch-5003
modules are installed in slots 1 and 2. Three FortiGate-5001SX modules are
installed in slots 3, 4, and 5.
The FortiGate-5050 primary and secondary Shelf Managers and the Shelf Alarm
Panel (SAP) are also visible. The factory installed shelf alarm panel displays
alarms, provides a telco alarm interface, and also provides serial connections to
the shelf managers. The factory installed shelf managers provide power
distribution, cooling, alarms, and shelf status for the FortiGate-5050 chassis.
Figure 3: FortiGate-5050 front panel with FortiGate-5001SX and FortiSwitch-5003
modules installed
5
PWR
FortiGate-5001SX
modules
4
PWR
slots 3, 4,
and 5
3
PWR
FortiSwitch-5003 2
modules
1
slots 1 and 2
5000SM
SMC
10/100
link/Act
10/100
2
link/Act
Secondary
Shelf Manager
(SMC 2)
USB
CONSOLE 1 2 3 4 5 6 7 8
STA IPM
ACC
USB
1 2 3 4 5 6 7 8
CONSOLE
ACC STA IPM
USB
1 2 3 4 5 6 7 8
CONSOLE
ACC STA IPM
5050SAP
5000SM
10/100
SERIAL SERIAL link/Act
10/100
1 2
link/Act
Shelf Alarm Primary
Panel (SAP) Shelf Manager
(SMC 1)
FortiGate-5050 front panel
Hot-swappable
cooling fan tray
POWER
Power LED
SMC
1
ESD socket
15
