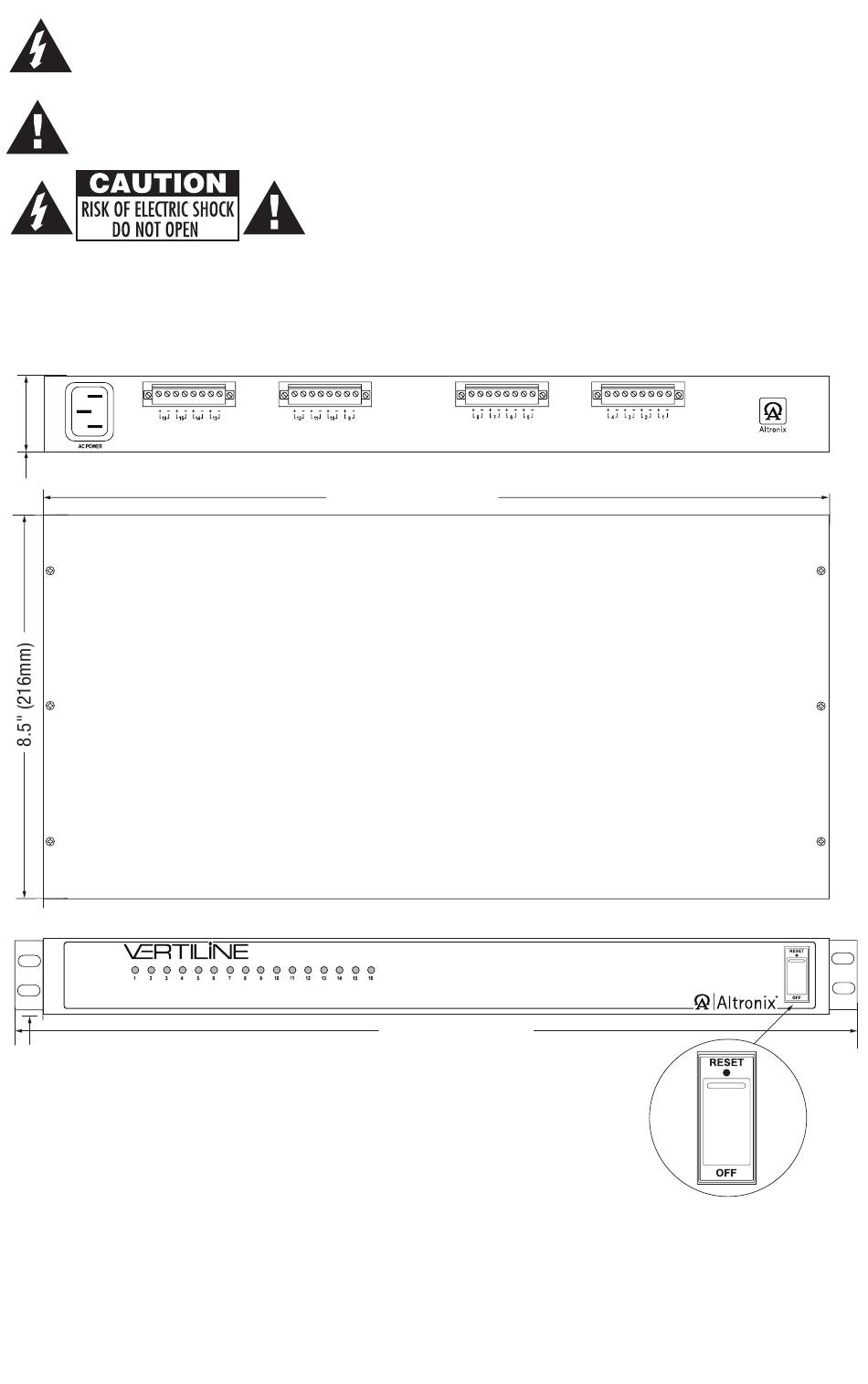

Mechanical Drawing & Dimensions (H x W x D):
1.625" (41.3mm)
0.75" (19.05mm)
Fig. 3
Power Switch With Built-In Circuit Breaker:
- 6 -
CAUTION: To reduce the risk of electric shock do not open enclosure.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
1U EIA 19" Rack Mount Chassis
1.625" x 19.125" x 8.5" (41.3mm x 486mm x 216mm)
17.625" (447.7mm)
TOP & BOTTOM
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not illuminated.
Power LEDs on faceplate are not illuminated. Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position
(Fig. 3, pg. 6).
REAR
FRONT
19.125" (486mm)
(ON)
