Altronix Isolated Series Installation Manual page 3

Note: Do not exceed units electrical load ratings as indicated in reference chart (pg. 2).
Do not place mechanical load on unit. Data racks should always be properly ventilated.
Unit is designed optimally for normal data room office installations.
CAUTION: Equipment to be installed / serviced by authorized / trained personnel only.
Shut branch circuit power before installing / servicing equipment.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service personnel and should conform to
the National Electrical Code and all local codes.

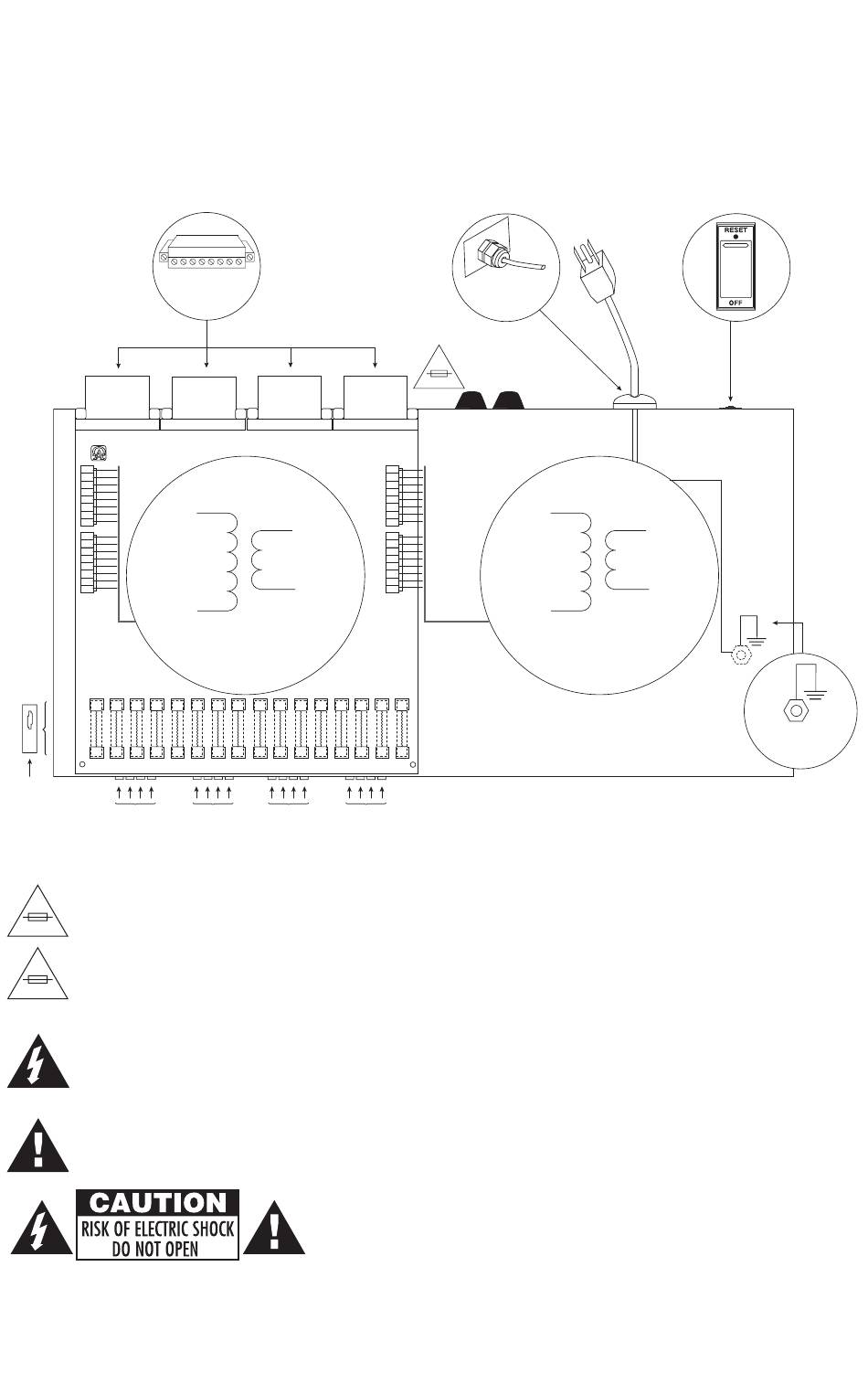

Fig. 1
Fig. 1a
PTC1
Used
on PTC
AC Power
Models
LEDs
Fuse ratings:
Replace output fuses with the same type and rating 3.5A/250V.
3.5A 250V
Output Rating
Replace primary in-line fuse with the same type and rating 5A/250V.
5A 250V
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may
be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.
Rack Isolated 220 Series
Removable
Terminal
Block
XFMR*
AC Power AC Power AC Power
LEDs LEDs
CAUTION: To reduce the risk of electric shock do not open
enclosure. There are no user serviceable parts inside. Refer servicing
to qualified service personnel.
Fig. 1b
Strain Relief
Line Cord
5A
250V
LEDs
Fig. 1c
XFMR*
Fig. 1d
Illuminated
Power Disconnect
Circuit Breaker with
manual reset
Green Wire
Earth GND
- 3 -
