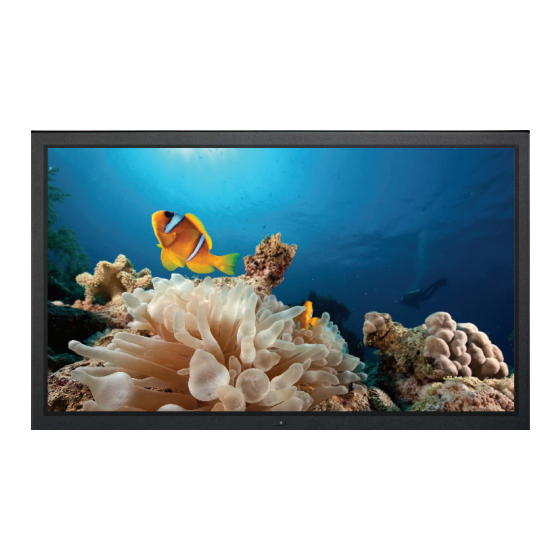

55" FHD 1920 x 1080 LCD
AP-F55 / HAP-F55
Aluminum front bezel
NAP-F55 / HNAP-F55
Front NEMA4 / IP65
DP-F55 / HDP-F55
Aluminum Front Panel
OP-F55 / HOP-F55
Universal Open Frame
Designed and manufactured by Austin Hughes
UM-UV-621-F55-Q320V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraView AP-F55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Austin Hughes UltraView AP-F55

  • Page 1 User Manual 55” FHD 1920 x 1080 LCD AP-F55 / HAP-F55 Aluminum front bezel NAP-F55 / HNAP-F55 Front NEMA4 / IP65 DP-F55 / HDP-F55 Aluminum Front Panel OP-F55 / HOP-F55 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-F55-Q320V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, August 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-F55 / NAP-F55 / HAP-F55 / HNAP-F55 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-F55 / HDP-F55 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > OP-F55 / HOP-F55 Package Content Structure Diagram &...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > AP-F55 / NAP-F55 / HAP-F55 / HNAP-F55 < 1.1 > Package Content 55” FHD LCD Display AP-F55 / NAP-F55 HAP-F55 / HNAP-F55 55" FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power...
  • Page 6 < 1.2 > Structure Diagram Front view Side View AP-F55 / NAP-F55 HAP-F55 / HNAP -F55 Bottom view Rear case Rear view LCD panel Protective 3mm glass 8mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model...
  • Page 7: Ap-F55 / Nap-F55 / Hap-F55 / Hnap-F55

    < 1.2 > Dimension 55” FHD LCD Display Front View Side View AP-F55 / NAP-F55 HAP-F55 / HNAP-F55 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F55-Q320V1 www.austin-hughes.com...
  • Page 8 < 1.3 > VESA Installation M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-F55-Q320V1 www.austin-hughes.com...
  • Page 9: Package Content

    < Part 2 > DP-F55 / HDP-F55 55” FHD LCD Display < 2.1 > Package Content DP-F55 / HDP-F55 55" FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power DVI-D Upgrade I/O with advanced features...
  • Page 10: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Side view DP-F55 / HDP-F55 Bottom view Rear case Rear view LCD panel 8mm aluminum front cover Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight DP-F55...
  • Page 11: Part. 2 > Dp-F55 / Hdp-F55

    < 2.2 > Dimension 55” FHD LCD Display Front View Side View DP-F55 / HDP-F55 Rear View UNIT : mm UNIT : mm 1mm = 0.03937 inch 1mm = 0.03937 inch Bottom View UM-UV-621-F55-Q320V1 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA Installation M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-F55-Q320V1 www.austin-hughes.com...
  • Page 13: Package Content

    < Part 3 > OP-F55 / HOP-F55 < 3.1 > Package Content 55” FHD LCD Display OP-F55 / HOP-F55 55" FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power DVI-D Upgrade I/O with advanced features...
  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side view OP-F55 / HOP-F55 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
  • Page 15: Part. 3 > Op-F55 / Hop-F55

    < 3.2 > Dimension 55” FHD LCD Display Front View Side View OP-F55 / HOP-F55 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F55-Q320V1 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 600*400mm ) M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-F55-Q320V1 P.12 www.austin-hughes.com...
  • Page 17 Intentionally Left Blank UM-UV-621-F55-Q320V1 P.13 www.austin-hughes.com...
  • Page 18: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations Mechanical Design AP-F55 / NAP-F55 / DP-F55 / OP-F55 / HAP-F55 HNAP-F55 HDP-F55 HOP-F55 Protection 8mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount...
  • Page 19 55” FHD LCD Display Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...
  • Page 20: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) 55” FHD LCD Display Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color...
  • Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 23 55” FHD LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
  • Page 24: Remote Controller ( Rc-2 )

    < 4.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
  • Page 25: Options

    < Part 5 > Options 55” FHD LCD Display < 5.1 > Option Table AP / HAP / Options HNAP ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ MCS multi-screen control ✓ ✓ ✓ ✓ ✓ ✓...
  • Page 26 < 5.2 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 27 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Austin Hughes provides MCS solution to control the OSD of various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
  • Page 28 < 5.4 > Upgrade Options : - HMDI ( HDMI 1.4, CEA-861-E ) - Display Port ( DP 1.0, HCDP 1.3 ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Power Audio HDMI...
  • Page 29 < 5.5 > Options : Touchscreen & driver 55” FHD LCD Display F55" USB Touchscreen Specifi cation Model TPC-10 Multi-touch IR10 Multi-touch Technology Projected Capacitive Infrared Touch Point Input Type Pen, Finger, Finger of gloved Finger or Capacitive Stylus hand activation Resolution 4096 x 4096 Touch Point Accuracy...
  • Page 30 < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 43 ~ 160V Input current - No load 100 mA 50 mA 10 mA - Full load 7386 mA 3611 mA 1540 mA...
  • Page 31 < 5.7 > Options : MIL-type or Lockable Connector 55” FHD LCD Display Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
  • Page 32 < 5.8 > Options : Quad Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate Video Input 1.0 Vpp, 75 Ohm x 4 Camera Input 1.0 Vpp, 75 Ohm x 1 VCR Input...
  • Page 33: Options For Sunlight Readable : Auto Dimming

    < 5.9 > Options for Sunlight Readable : Auto Dimming 55” FHD LCD Display DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu.
  • Page 34 < 6 > Ultraview F55 Family 450 cd/m Brightness 1500 cd/m Sunlight Readable Brightness 8mm aluminum front bezel 8mm aluminum front bezel AP-F55 HAP-F55 8mm aluminum front bezel 8mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-F55 HNAP-F55 Aluminum front cover...
  • Page 35 Intentionally Left Blank UM-UV-621-F55-Q320V1 P.31 www.austin-hughes.com...
  • Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-F55-Q320V1 P.32...
