Replacing an SCM/SWM
The following takes SCM as an example to introduce how to install an SCM or SWM.
To replace an SCM, take the following steps:
1. Wear an electrostatic discharge (ESD) strap around your bare wrist and connect
the strap to an ESD point on the chassis. See
2. Use a cross screwdriver to loosen SCM screws until they pop out.
3. Rotate the lever to outside till the lever head is out of the expansion slot.
4. Hold the module with one hand and pull it straight out of the expansion slot
along the guide rail.

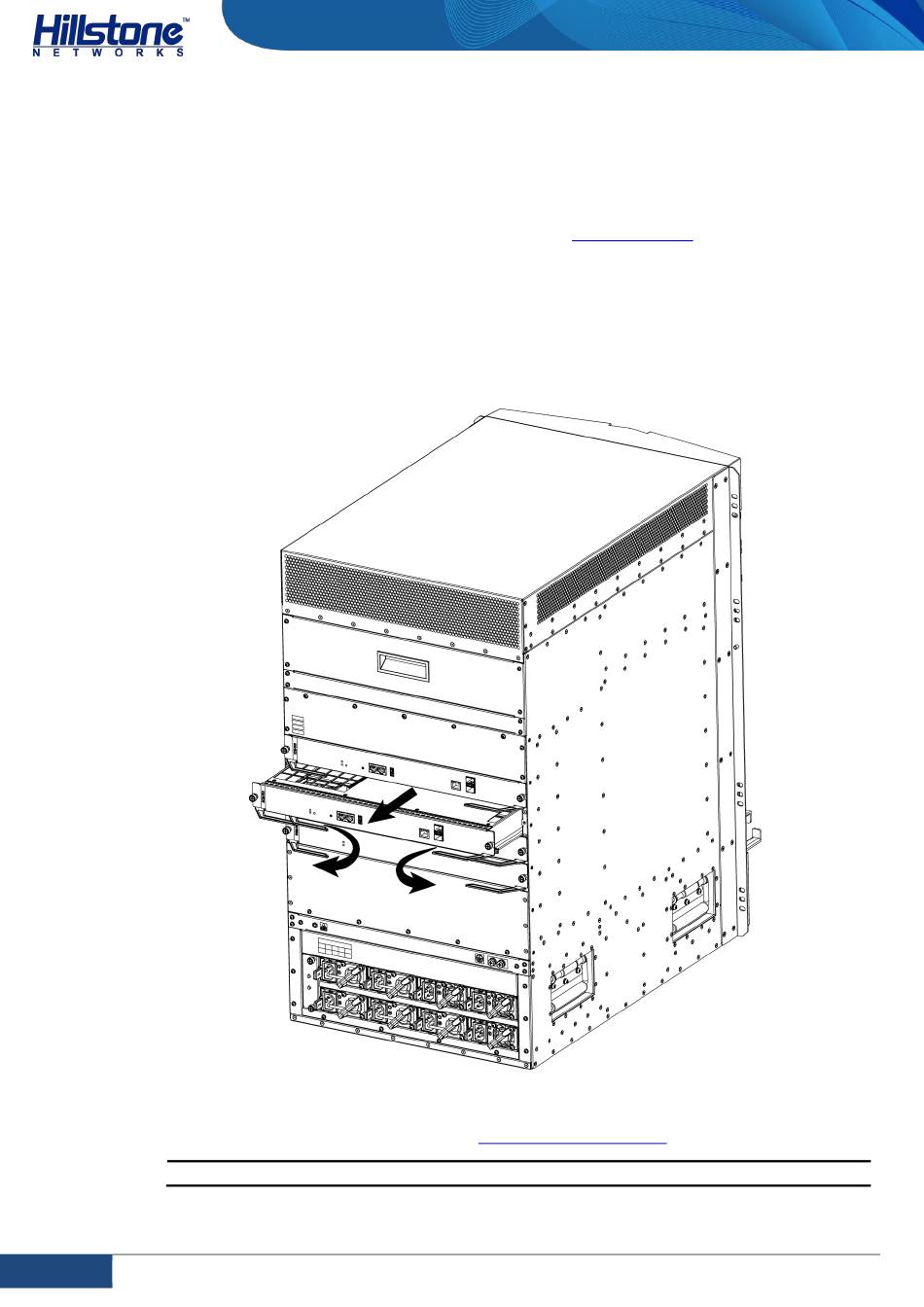

Figure 5-1: Replacing an SCM

5. Put the removed module into an antistatic bag or on a flat antistatic table.
6. Install a replacement module (see
Note: If you do not want to install a new module, apply a blank plate over the slot to
67
Hillstone SG-6000 X-Series Hardware Reference Guide
ESD Prevention.
Installing an SCM/SWM).
