Installing An Power Module Of Sg-6000-X7180; Figure 3-15: Installing An Ac Power Module - Hillstone SG-6000-X7180 Hardware Reference Manual

3. Face the rear panel of the chassis.
4. Position the power module so that its front side faces you. Make the gold finger
on the downside, and make the outline of the power module and the power slot
even. Slide the power module straight into the slot till it is fully seated in the
chassis slot. You can hear a click of the lock stuck in the chassis. Verify that the
panel of the power module is plain with the chassis panel.

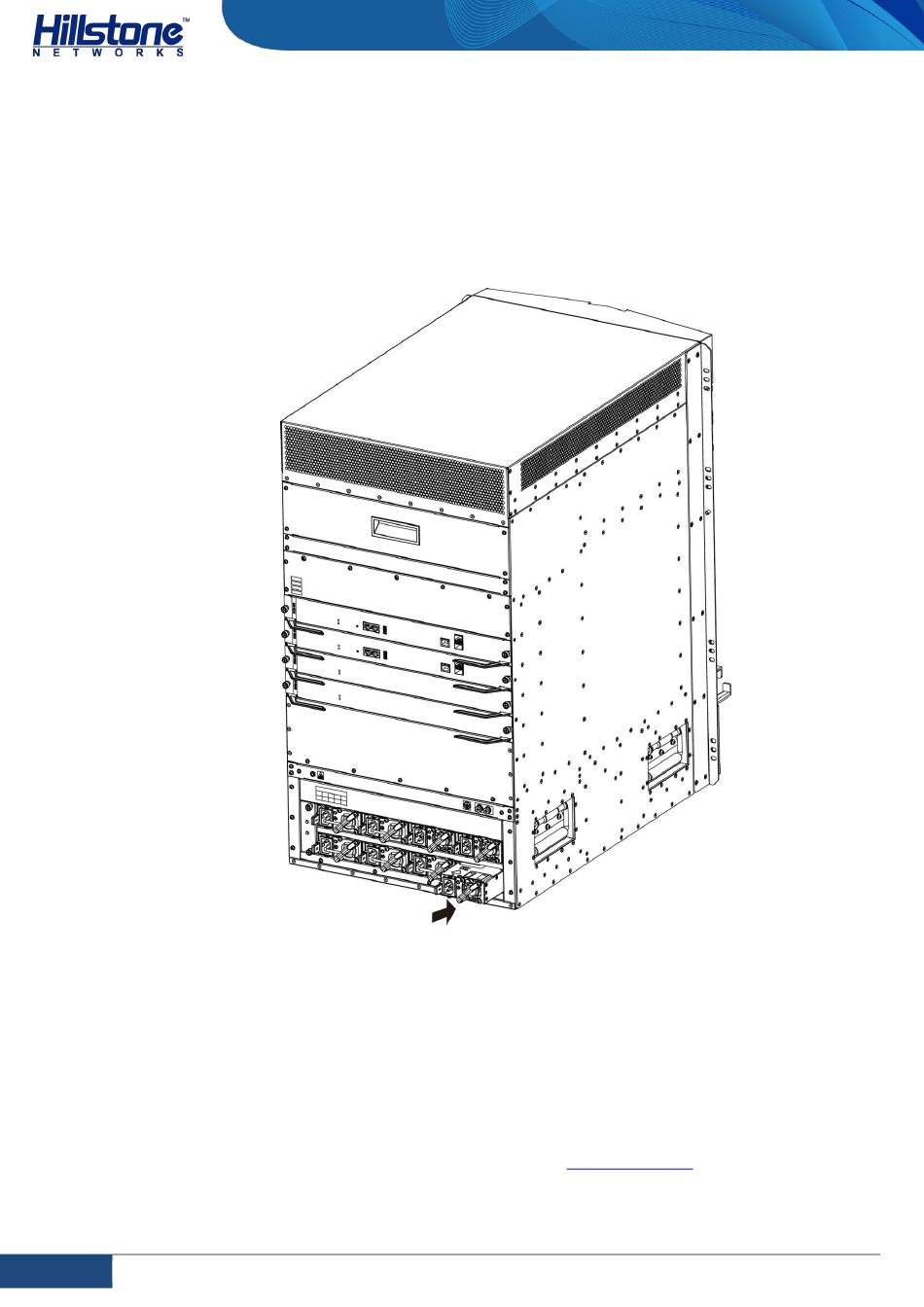

Figure 3-15: Installing an AC Power Module

Installing an Power Module of SG-6000-X7180

Installing an AC Power Module
To install an AC power module, take the following steps:
5. Make sure the power module is not connected to any power source and there is
no chance it will be powered during the process.
6. Wear an electrostatic discharge (ESD) strap around your bare wrist and connect
the strap to an ESD point on the chassis. See
53
Hillstone SG-6000 X-Series Hardware Reference Guide
ESD Prevention.
Chapter 3 Installation
|
Hillstone
