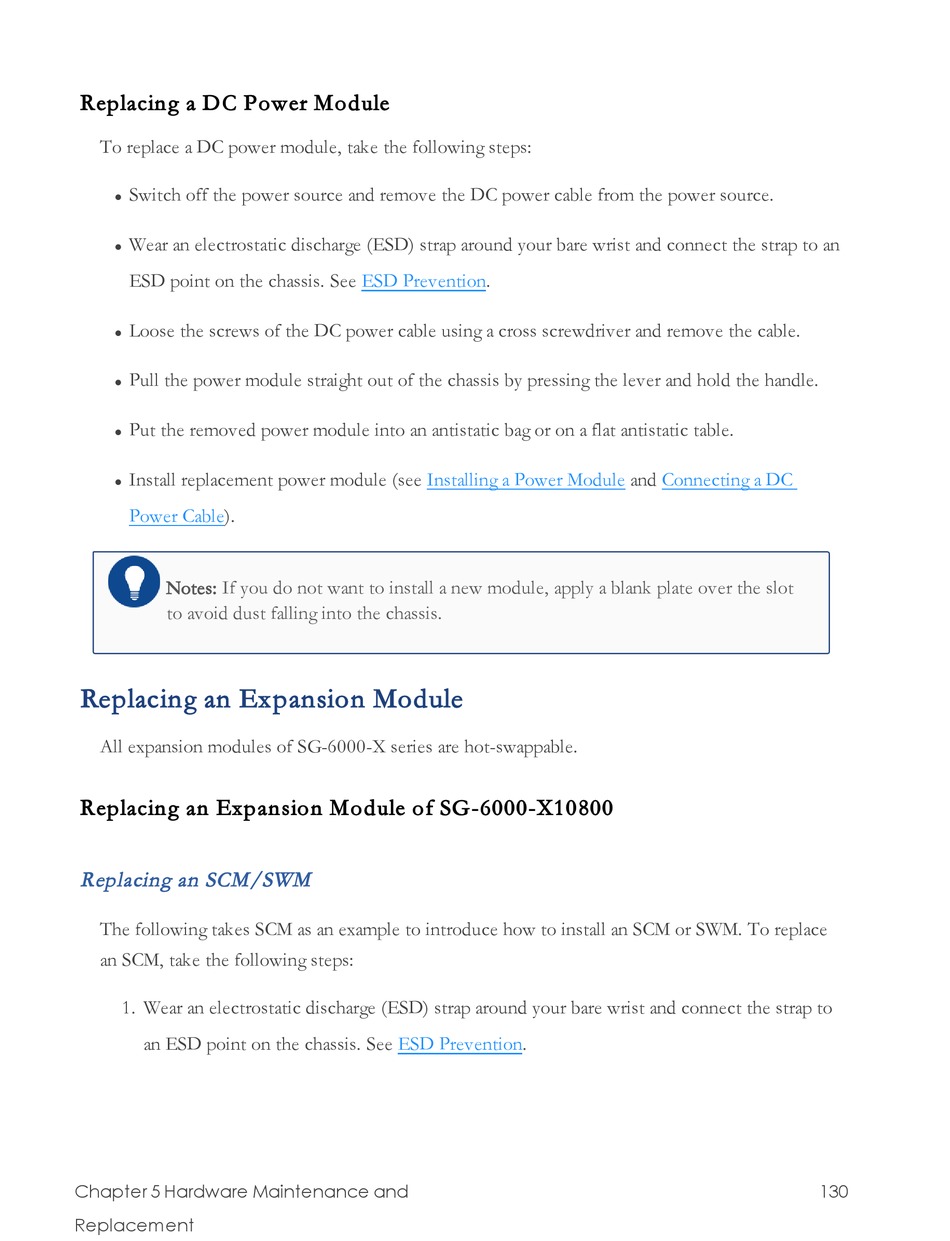

Replacing a DC Power Module

To replace a DC power module, take the following steps:
Switch off the power source and remove the DC power cable from the power source.
l
Wear an electrostatic discharge (ESD) strap around your bare wrist and connect the strap to an
l
ESD point on the chassis. See
Loose the screws of the DC power cable using a cross screwdriver and remove the cable.
l
Pull the power module straight out of the chassis by pressing the lever and hold the handle.
l
Put the removed power module into an antistatic bag or on a flat antistatic table.
l
Install replacement power module (see
l
Power Cable).
Notes: If you do not want to install a new module, apply a blank plate over the slot
to avoid dust falling into the chassis.

Replacing an Expansion Module

All expansion modules of SG-6000-X series are hot-swappable.

Replacing an Expansion Module of SG-6000-X10800

Replacing an SCM/SWM

The following takes SCM as an example to introduce how to install an SCM or SWM. To replace
an SCM, take the following steps:
1. Wear an electrostatic discharge (ESD) strap around your bare wrist and connect the strap to
an ESD point on the chassis. See
Chapter 5 Hardware Maintenance and
Replacement
ESD Prevention.
Installing a Power Module
ESD Prevention.
and Connecting a DC
