Summary of Contents for TCS 700-30

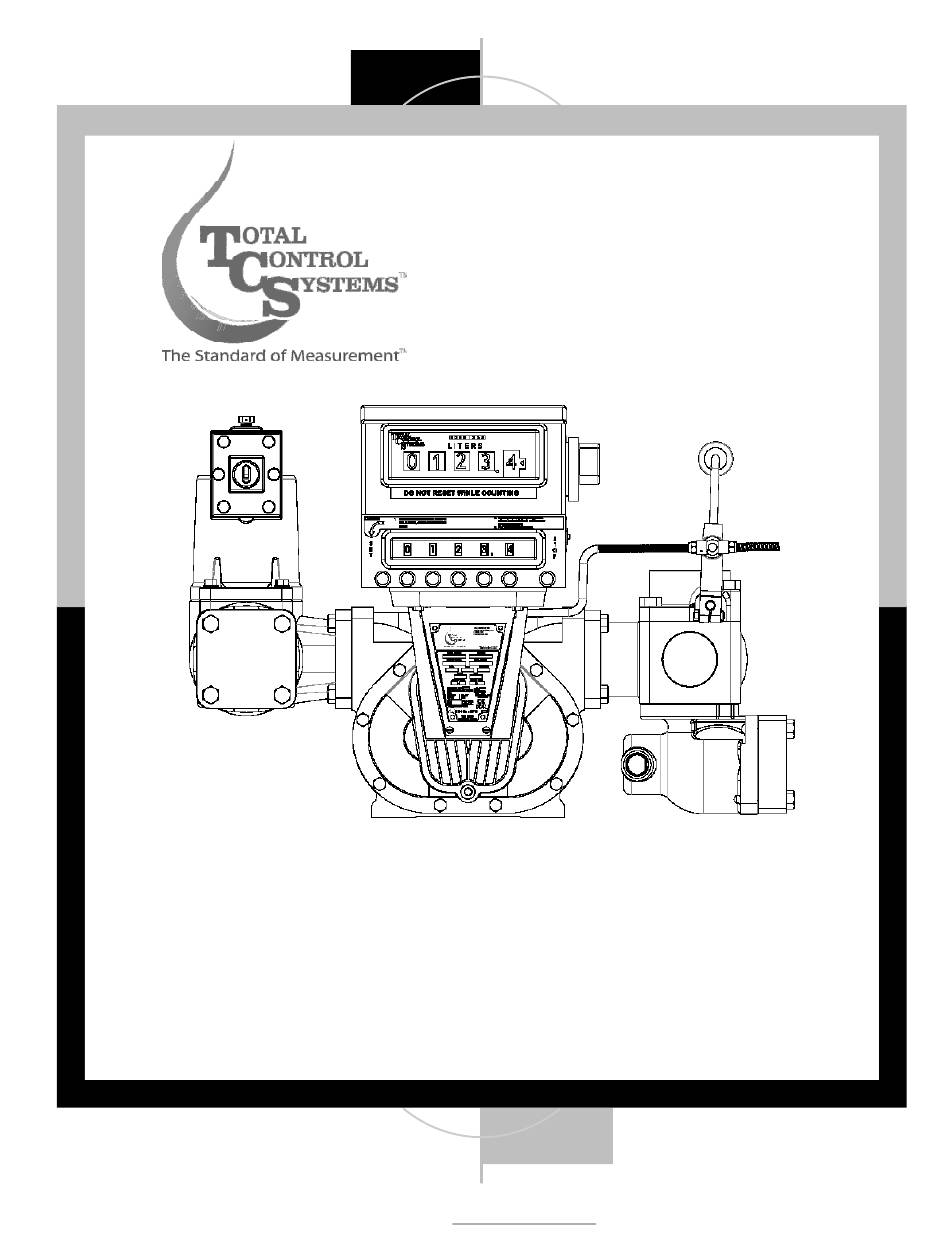

- Page 1 TCS900003, Rev.6 04/26/2016 700-30/35 Cat alog Title Rotary Meter Catalog Subtitle Installation, Operation & Maintenance Manual Check us out at www.TCSmeters.com!
-
Page 2: Table Of Contents
TCS900003, Rev.6 04/26/2016 Page 2 Table of Contents Safety Warning Symbols Hydraulic Preset Valve Assembly Receipt & Inspection Hydraulic Preset Valve Assembly (Continued) Notice Air Check Valve Assembly Meter Overview Torque Specifications Meter Specifications Drive Components Meter Types Disassembly of Meter Material of Construction Disassembly of Meter (Continued) System Recommendations... -
Page 3: Receipt & Inspection
TCS makes no warranties, express or implied, including the implied warranties of merchantability and fitness for a particular purpose with respect to this manual and, in no event, shall TCS be liable for special or consequential damages including, but not limited to, loss of production, loss of profits, etc. -
Page 4: Meter Overview

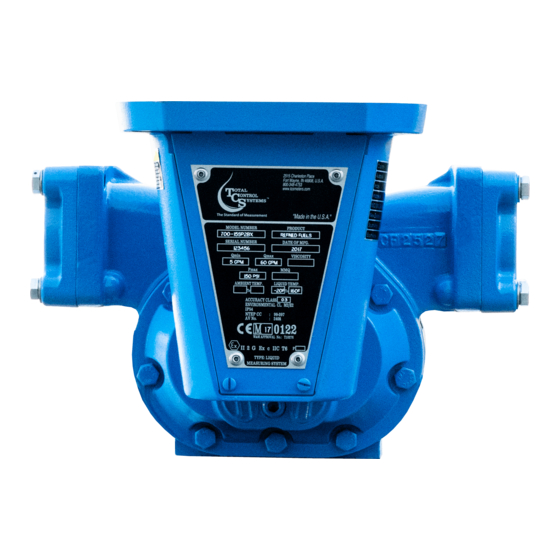

04/26/2016 Page 4 Meter Overview The TCS Model 700 series flow meter is a simple and efficient design. The meter consists of a single fluid chamber that contains a single blocking rotor and two displacement rotors whose rotation is synchronized with mating gears. -
Page 5: Meter Specifications
3” NPT Flange Connection, 2” NPT Flange. Optional BSPT, Slip Weld or ANSI flanges available upon request. Flow Rate: 700-30 up to 200 GPM (760 LPM) 700-35 up to 300 GPM (1135 LPM); only for fluids under 225 Maximum Pressure: 150 PSI (10.5 BAR) -
Page 6: Material Of Construction
TCS900003, Rev.6 04/26/2016 Page 6 Material of Construction Description Hardcoat Hardcoat Hardcoat Hardcoat Housing Anodized Anodized Ductile Iron Anodized Anodized Ductile Iron Aluminum Aluminum Aluminum Aluminum Hardcoat Hardcoat Hardcoat Hardcoat Rotors Anodized Anodized Ni-Resist Anodized Anodized Ni-Resist Aluminum Aluminum Aluminum Aluminum Rotor Plated SS... -
Page 7: System Recommendations (Continued)
TCS900003, Rev.6 04/26/2016 Page 7 System Recommendations (Continued) Control Valves Safety and isolation valves should be used throughout the metering system. In any pumping system where there is one (1) pump and multiple flow meters, a digital or hydro-mechanical Rate-of-Flow control valve must be used at each flow meter to prevent over-speeding of the flow meters. -
Page 8: System Recommendations (Continued)
TCS900003, Rev.6 04/26/2016 Page 8 System Recommendations (Continued) Thermal Shock The metal parts within the flow meter will expand or contract with variations in the system operating temperature. sudden or immediate temperature increases of 68 F (20 C) degrees or more are For any systems where possible, the meter will require clearance rotors. -
Page 9: Above Ground Storage System
TCS900003, Rev.6 04/26/2016 Page 9 Check us out at www.TCSmeters.com! -
Page 10: Mobile Fueling System
TCS900003, Rev.6 04/26/2016 Page 10 Check us out at www.TCSmeters.com! -
Page 11: Start Up Recommendations
TCS900003, Rev.6 04/26/2016 Page 11 Start up Recommendations ¡WARNING! Test equipment should be grounded to prevent a possible spark. Test area should have no ignition source. Operators should wear personal protection and prevent any product exposure and environmental issues. Start-up instruction for new installations or after maintenance and repairs: 1) Only properly trained personal should design, install, or operate metering system. -
Page 12: Start Up Recommendations (Continued)
TCS900003, Rev.6 04/26/2016 Page 12 Start-Up Recommendations (CONTINUED) 14) When operating the meter with accessories, valves should be opened slowly to avoid a pressure surge that can damage the meter or air eliminator. System pressures should be maintained below 70 PSI (4.9 BAR). 15) Custody transfer metering systems must be calibrated by a regulatory agency before product can be sold off the meter. -
Page 13: Meter Calibration
TCS900003, Rev.6 04/26/2016 Page 13 Meter Calibration The method of proving should be selected, and necessary provisions made, during the design stage of the installation. Of the most commonly used systems, portable provers have the advantage of more closely reproducing the conditions under which the product is normally delivered. -
Page 14: Meter Calibration (Continued)
TCS900003, Rev.6 04/26/2016 Page 14 Meter Calibration (Continued) Making the Tests Reset the register to zero, and run the required test quantity through the meter. Do not exceed the maximum recommended rate of flow for the meter. Maximum and minimum recommended rates of flow for each 700 series flow meter is marked on the meter identification plate and also in the maintenance manual. -
Page 15: Meter Calibration (Continued)
TCS900003, Rev.6 04/26/2016 Page 15 Meter Calibration (Continued) Temperature Correction If the testing conditions are such that the temperature of the liquid differs by more than a few degrees between the meter and the prover, it is advisable to apply temperature correction to the prover readings. Thermowells must be installed into the system and temperature readings must be taken during test runs at the meter and in the prover. -
Page 16: Split Compartment Testing
TCS900003, Rev.6 04/26/2016 Page 16 Split Compartment Test Purpose: A product depletion test verifies the proper operation of the air elimination system when the storage tank for the product being measured is pumped dry. This test is necessary for meters that may drain a tank completely, such as a vehicle tank meter. -
Page 17: Split Compartment Testing (Continued)
TCS900003, Rev.6 04/26/2016 Page 17 Split Compartment Test (Continued) Single Compartment Test Procedure: The test of single-compartment tanks is easier to accomplish if there is a quick-connect hose coupling between the compartment valve and the pump that supplies product to the meter. If the system does not have quick-connect couplings between the compartment and the meter, an additional source of sufficient product at the test site is required. -
Page 18: Split Compartment Testing (Continued)
TCS900003, Rev.6 04/26/2016 Page 18 Split Compartment Test (Continued) With a quick-connect coupling: During a normal full flow test run, close the compartment valve when the prover is approximately one-half full to its normal capacity. Then slowly and carefully disconnect the quick-connect coupling, allowing the pump to drain the supply line. -
Page 19: Maintenance
Only fully trained personnel should be involved in maintenance. Failure to use original TCS replacement parts will void any Weights and Measures approvals, warranty and risk damage to the meter system. -
Page 20: Maintenance (Continued)
TCS900003, Rev.6 04/26/2016 Page 20 Maintenance (CONTINUED) ¡WARNING! Test equipment should be grounded to prevent a possible spark. Test area should have no ignition source. Operators should wear personal protection and prevent any product exposure and environmental issues. 10) When removing gaskets or O-rings, carefully check for damage or corrosion. Any cracked, rough, worn, elongated or swollen O-rings must be replaced. -
Page 21: Dimensions
TCS900003, Rev.6 04/26/2016 Page 21 700-30 / 700-35 Dimensions 0 0 0 5 0 9 7 0 G A L L O N S Meter shown with these options: · Meter · Air Eliminator · Strainer · Hydraulic Valve ·... -
Page 22: Meter Assembly
TCS900003, Rev.6 04/26/2016 Page 22 700-30 / 700-35 Meter Assembly Check us out at www.TCSmeters.com! -
Page 23: Meter Assembly (Continued)
TCS900003, Rev.6 04/26/2016 Page 23 700-30 / 700-35 Meter Assembly 700-30 700-35 Item Description Round Head Screw 1-128279 1-128279 1-128279 1-128279 1-128279 1-128279 1-128279 1-128279 Adjuster Assembly 700100 700100 700100 700100 700100 700100 700100 700100 Drive Shaft 700019 700019 700019... -
Page 24: Air Eliminator Assembly
TCS900003, Rev.6 04/26/2016 Page 24 730 Air Eliminator Assembly Check us out at www.TCSmeters.com! -
Page 25: Air Eliminator Assembly (Continued)
TCS900003, Rev.6 04/26/2016 Page 25 730 Air Eliminator Assembly 730-20 Item Description Cap Screw 740050 740050 740050 740050 Drilled Cap Screw 740050D 740050D 740050D 740050D Ring Washer 740051 740051 740051 740051 Outlet Cover; NPT 740010 740016 740010 740016 740710 740716 740710 740716 Outlet Cover;... -
Page 26: Strainer / High Volume Strainer Assembly
TCS900003, Rev.6 04/26/2016 Page 26 720-30 Strainer & 725-30 High Volume Strainer Assembly Check us out at www.TCSmeters.com! -
Page 27: Strainer / High Volume Strainer Assembly (Continued)
740400 740300 Basket Cover, One 1/2” NPT Port 743155 743156 743155 743156 743155 Strainer Cold Weather Seal Kit—TCS 743078 Contents: All seals are low temperature Nitrile Rubber (4) Top Seal Qty. 1 (8) Seal Ring Qty. 1 (14) Flange O-ring Qty. -
Page 28: Hydraulic Preset Valve Assembly
TCS900003, Rev.6 04/26/2016 Page 28 750-30 Hydraulic Preset Valve Assembly Side Swing Front Swing Rear Swing Check us out at www.TCSmeters.com! -
Page 29: Hydraulic Preset Valve Assembly (Continued)
753061KT 753061KT 753061KT Lever Knob 753052 753052 753052 Valve Cold Weather Seal Kit—TCS 753078 All seals are low temperature Nitrile Rubber, FKM or PTFE Contents: (19) Lower Seal Qty. 1 (39) Upper Seal Qty. 1 (14) Flange O-ring Qty. 2 (34) Cover Seal Qty. -
Page 30: Air Check Valve Assembly
TCS900003, Rev.6 04/26/2016 Page 30 760-30SP Air Check Valve Assembly Item Description 760-30SP Screw 792004 Piston Guide 793015 Piston Guide External Seal 793020 Piston Guide Internal Seal 793023 Piston Guide Snap Ring 793035 Piston 793002 Spring 793001 Body Snap Ring 793030 Housing Seal 793025... -
Page 31: Torque Specifications
TCS900003, Rev.6 04/26/2016 Page 31 Torque Specifications 700-30/35 METER ASSEMBLY Foot Lbs. Newton Meter Part Number Tool Bolt/Nut Size & Description Unlubricated Lubricated Unlubricated Lubricated TCS 703016 1/2” hex 5/16-18 UNC 2B 14.9 Cover Screws wrench/socket TCS 700040 7/16” hex... -
Page 32: Drive Components
TCS900003, Rev.6 04/26/2016 Page 32 Drive Components Removing the Dust Cover Cut dust cover seal. Remove the dust cover screws with a standard flathead screwdriver. Note the setting on calibration adjuster. Note the position of the drive gear (either above or below the packing gland pinion). Removing the Adjuster Loosen the retaining screws using a standard flathead screwdriver. -
Page 33: Disassembly Of Meter
TCS900003, Rev.6 04/26/2016 Page 33 Disassembly of Meter ¡WARNING! All internal pressure must be relieved to ZERO (0) pressure before beginning disassembly of meter or components Draining Meter & Removing Counter Support Drain the meter by turning it on either the inlet or outlet side. Remove the counter bracket screws with a hex wrench or socket driver. -
Page 34: Disassembly Of Meter (Continued)
TCS900003, Rev.6 04/26/2016 Page 34 Disassembly of Meter (Continued) Front & Rear Cover Remove the screws on the front cover using a socket or box wrench. Remove front cover. Remove the screws on the back and remove rear cover. Remove the O-ring from both sides of the housing Rotor Gears Using a spare displacement rotor gear, place it between the rotor and blocking gear on the meter. -
Page 35: Disassembly Of Meter (Continued)
TCS900003, Rev.6 04/26/2016 Page 35 Disassembly of Meter (Continued) Removing Bearing Plate Remove the bearing plate retaining screws with a standard flathead screwdriver. To remove bearing plate & rotors, insert a screwdriver into the notches near the dowel pins. Gently pry the bearing plate off the dowel pins and slide out the bearing plate and rotors from the housing. -
Page 36: Inspection Of Parts
TCS900003, Rev.6 04/26/2016 Page 36 Inspection of Parts Inspect the surfaces of rotors, bearing plates, meter housing and gear teeth for any damage or wear. Replace parts as needed. GEAR WEAR A) Meter has been run on air. B) Meter has been operated at a higher volume capacity than what is rated CHAMBER WEAR... -
Page 37: Reassembly Of Meter
TCS900003, Rev.6 04/26/2016 Page 37 Reassembly of Meter Reinstalling Rotors Install rear bearing plate on meter. Insert threaded end of blocking rotor and the right displacement rotor into front gear plate (reinsert rotor keys if necessary). Align the two rotors (see picture 3) before applying gears. Rotor Gear Timing Slide on blocking rotor gear and position the ‘arrow’... -
Page 38: Reassembly Of Meter (Continued)
TCS900003, Rev.6 04/26/2016 Page 38 Reassembly of Meter Reinstalling Bearing Plate Align rotors on bearing plate (see picture) before inserting into meter. Slide front bearing plate with rotors into meter housing and rear bearing plate. Again, rotate gears to make sure they turn freely within the housing before proceeding. Reinstalling Rotor Gears &... -
Page 39: Reassembly Of Meter (Continued)
TCS900003, Rev.6 04/26/2016 Page 39 Reassembly of Meter Reinstalling Packing Capsule & Front/Rear Covers Reinstall cover O-rings on the front and rear of meter housing. Reinsert packing capsule into front cover of meter with retaining plate and tighten screws. When attaching front cover, align packing capsule blade with the slot on the blocking rotor sleeve. Tighten all front cover screws. -
Page 40: Reassembly Of Meter (Continued)
TCS900003, Rev.6 04/26/2016 Page 40 Reassembly of Meter (Continued) Reinstalling Adjuster Reinsert the adjuster into the top of the counter support and assuring that it mates with the drive shaft. Tighten the screws that secure the adjuster plate to the counter support. Reinstalling Dust Cover Reattach dust cover and tighten the screws. -
Page 41: Disassembly Of Strainer
TCS900003, Rev.6 04/26/2016 Page 41 Page 41 Disassembly of 720 Strainer Assembly ¡WARNING! All internal pressure must be relieved to ZERO (0) pressure before beginning disassembly of meter or components Using a hex or socket wrench, remove the four screws and washers from the cover plate. Remove the cover plate and O-ring from the housing. -
Page 42: Disassembly Of Air Eliminator
TCS900003, Rev.6 04/26/2016 Page 42 Page 42 Disassembly of 730 Air Eliminator Assembly ¡WARNING! All internal pressure must be relieved to ZERO (0) pressure before beginning disassembly of meter or components Using a 1/2” wrench or socket, remove the cover screws from air eliminator cover plate. Remove cover plate. -
Page 43: Disassembly Of Hydraulic Preset Valve
TCS900003, Rev.6 04/26/2016 Page 43 Disassembly of 750-30 Hydraulic Valve ¡WARNING! All internal pressure must be relieved to ZERO (0) pressure before beginning disassembly of meter or components Drain all fluid from metering system prior to valve removal. Using a hex or socket wrench, remove the four screws connecting the valve to the meter. Remove valve from meter and piping. -
Page 44: Disassembly Of Hydraulic Preset Valve (Continued)
TCS900003, Rev.6 04/26/2016 Page 44 Disassembly of 750-30 Hydraulic Valve Remove the piston guide from the valve body. Remove and inspect the upper and lower seals and replace as needed. Using a flathead screwdriver, gently remove the valve body O-ring, inspect and replace if needed. Reassembly of 750-30 Hydraulic Valve Place the seal into valve housing. -
Page 45: Seal Replacement For Hydraulic Valve
4) Inspect and clean seal chamber. 5) Apply thin layer of grease to the shaft and seal chamber. 6) Install new seal (TCS 753114) with the spring side facing the inside of the seal chamber. 7) Install new o-ring (TCS 753318). -
Page 46: Disassembly Of Air Check Valve
TCS900003, Rev.6 04/26/2016 Page 46 Disassembly of 760 Air Check Valve ¡WARNING! All internal pressure must be relieved to ZERO (0) pressure before beginning disassembly of meter or components 1) Use a fixture or vice to compress and hold the poppet in place before loosening any screws. 2) Using a 1/8”... -
Page 47: Meter Trouble Shooting
TCS900003, Rev.6 04/26/2016 Page 47 Meter Trouble Shooting PROBLEM: Leaking packing gland and/or housing A) Check to see whether any O-Rings have been damaged or cover bolts have not been tightened enough. B) Two common causes of packing gland leakage are thermal expansion and hydraulic shock. C) If two valves in a piping system (on either side of the meter) are closed, isolating the meter, and if the temperature rises as little as 1ºF in the system, the possible rise in pressure due to temperature would exceed the working pressure rating of the meter. -
Page 48: Air Eliminator Trouble Shooting
TCS900003, Rev.6 04/26/2016 Page 48 Page 48 Air Eliminator Trouble Shooting PROBLEM: Product is flowing from the Air Eliminators vents A) Foreign matter located in between seal plate O-rings and metal reeds. B) The seal plate O-ring may be worn through service life. C) The seal plate O-ring may be cut or dislodged and requires replacement. -
Page 49: Hydraulic Preset Valve Trouble Shooting
TCS900003, Rev.6 04/26/2016 Page 49 Preset Valve Trouble Shooting PROBLEM: The valve will not close completely. A) The shaft of the piston may be bent from excessive force. B) Debris may be located between the piston and piston guide. C) The upper or lower seals may be worn, swollen from incompatibility or cut from debris. D) The mechanical linkage to the Veeder-Root 7889 preset counter may be tight. -
Page 50: Material Safety Data Sheet
TCS900003, Rev.6 04/26/2016 Page 50 Test Liquid Material Safety Data Sheet (MSDS) 24 HOUR EMERGENCY ASSISTANCE GENERAL MSDS ASSISTANCE (260) 833-3173 (260) 484-0301 CODE: RPS ========================================================================================== HAZARD RATING> LEAST-0 SLIGHT-1 MODERATE-2 HIGH-3 EXTREME-4 ========================================================================================== DR LUBRICANTS, INC. DATE: 01/21/06 4611 NEWAYGO ROAD, SUITE D FORT WAYNE, IN 46808 TELEPHONE NUMBER: (260 484-0301 ==========================================================================================... -
Page 51: Msds (Continued)
TCS900003, Rev.6 04/26/2016 Page 51 Page 51 Test Liquid Material Safety Data Sheet (Continued) PRODUCT: RP 1060 PAGE - 2 ========================================================================================== SECTION IV - FIRE AND EXPLOSION HAZARD DATA ========================================================================================== UNUSUAL FIRE AND EXPLOSION HAZARDS : DO NOT DIRECT A SOLID STREAM OF WATER ONTO BURNING PRODUCT. -
Page 52: Msds (Continued)
TCS900003, Rev.6 04/26/2016 Page 52 Test Liquid Material Safety Data Sheet (Continued) PRODUCT: RP 1060 PAGE - 3 ========================================================================================== SECTION VII - SPILL OR LEAK PROCEDURES ========================================================================================== STEPS TO BE TAKEN IN CASE MATERIAL IS RELEASED OR SPILLED: FOR SMALL SPILLS: SOAK UP SPILL WITH ABSORBENT MATERIAL. -
Page 53: Msds (Continued)
TCS900003, Rev.6 04/26/2016 Page 53 Test Liquid Material Safety Data Sheet (Continued) PRODUCT: RP 1060 PAGE - 4 ========================================================================================== SECTION X - HMIS/NFPA RATINGS ========================================================================================== HMIS:HEALTH:1 FLAMMABILITY:2 REACTIVITY:0 PERSONAL PROTECTION:C NFPA:HEALTH:1 FLAMMABILITY:2 REACTIVITY:0 SPECIFIC HAZARD: ========================================================================================== SECTION XI - OTHER REGULATORY INFORMATION ========================================================================================== LAND (TDG) PROPER SHIPPING NAME: PETROLEUM DISTILLATES, N.O.S. -
Page 54: Notes
TCS900003, Rev.6 04/26/2016 Page 54 Notes Check us out at www.TCSmeters.com! -
Page 55: Warranty
TCS is not responsible for any in or out bound freight. TCS's sole obligation shall represent the buyer's sole and exclusive remedy shall be to repair or at TCS's option to replace any product or part determined to be defective. In no event shall TCS be liable for any special, direct, indirect, incident, consequential or other damages of similar nature, including without limitation, loss of profits, products, production time, or loss of expenses of any nature incurred by the buyer or any third party. - Page 56 TCS900003, Rev.6 04/26/2016 2515 Charleston Place Fort Wayne, IN 46808 Toll Free: (800) 348-4753 Phone: (260) 484-0382 Fax: (260) 484-9230 Email: sales@tcsmeters.com Check us out at www.TCSmeters.com!
