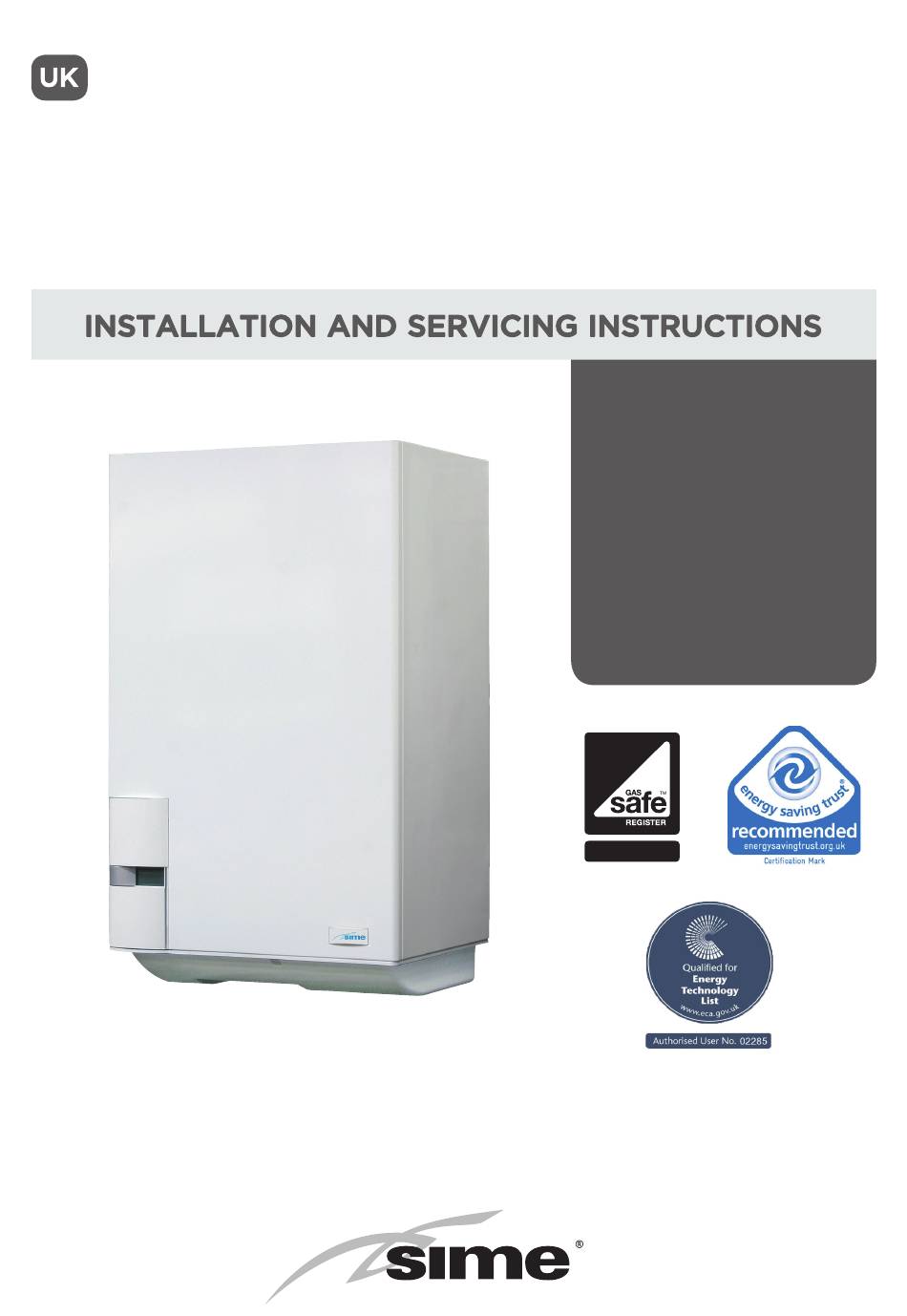

Cod. 6316158 - 07/2013
murEllE
hr 50 r (m)
EnsurE that thEsE
instructions arE lEft
for thE usEr aftEr
complEtion of thE
BEnchmarK sEction
plEasE rEad thE
important noticE
within this guidE
rEgarding your BoilEr
warranty
199838

Advertisement

loading
Need help?

Need help?

Do you have a question about the MURELLE HR 50 R and is the answer not in the manual?

Questions and answers

Related Manuals for Sime MURELLE HR 50 R

Summary of Contents for Sime MURELLE HR 50 R

  • Page 1 Cod. 6316158 - 07/2013 murEllE hr 50 r (m) EnsurE that thEsE instructions arE lEft for thE usEr aftEr complEtion of thE BEnchmarK sEction plEasE rEad thE important noticE within this guidE rEgarding your BoilEr warranty 199838...
  • Page 2 For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both parts and labour. As you would expect from Sime Ltd, it is our aim to provide our valued customers with the best in after sales and service.
  • Page 4 The Benchmark Scheme Sime Ltd is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimi- se safety, efficiency and performance.

  • Page 5: Table Of Contents

    IpX4D murelle HE 50 R Gas Council number 41-283-27 murelle HE 50 R m: Gas Council number 41-283-31 CONTENTS DESCRIpTION OF THE bOILER ........................page INSTALLATION ............................... page CHARACTERISTICS ............................page 22 COmmISSIONING, USE AND mAINTENANCE,INCLUDING bENCHmARk ........... page 30 FAULT FINDING .............................

  • Page 6: Description Of The Boiler

    dEscription of thE BoilEr introduction ned for single installation and in modular an Directives 2009/142/CE, 2004/108/CE, systems with several generators connec- 2006/95/CE and 92/42/CE. murEllE hE 50 r (m) are premixed gas ted in sequence/cascade and indepen- condensing heating modules for heating dent from each other.
  • Page 7 tEchnical fEaturEs murEllE hE 50 r (m) heat output Nominal (80-60°C) 46.8 Nominal (50-30°C) 51.2 Reduced (80-60°C) Reduced (50-30°C) 10.5 heat input nominal 48.0 heat input reduced max/min useful yield (80-60°c) 96.9 / 97.5 max/min useful yield (50-30°c) 109.0 / 106.7 useful yield at 30% of the load (40-30°c) termal efficiency (cEE 92/42 directive) ★★★★...
  • Page 8 functional diagram (fig. 2) Gas valve Condensate drain trap Heating flow sensor (SM) Safety thermostat 95°C Exhaust sensor (SF) Primary heat exchanger Heating return sensor (SR) Water pressure transducer Auto air vent Pump Drain vent Safety valve 3.5 bar CONNECTIONS Heating return Heating flow Gas connection...

  • Page 9: Installation

    installation The boiler must be installed in a fixed ments meet current regulations. Ventilation requirements for murelle location , by qualified engineers in com- hE 50 r boilers and cascade systems. pliance with all instructions contained in this manual. VENTILATION BS6644 has a requirement that the tem- Furthermore, the installation must be in peratures in a room or compartment do...
  • Page 10 Installed in a room in MODBUS. High level (within 15% of the room height The board is placed on the back of the Then press again, simultaneously, the from ceiling) - 2cm²/KW of net heat control panel. and the buttons for 2 seconds until input Low level (low as possible within 1 metre Access the board and chose the desired...
  • Page 11 Fig. 4/b...
  • Page 12 modBus mode (fig. 4/c) In this case, proceed as follows: - Choose the communication configu- ration suited to the MODBUS network (PAR 17 INST) according to table par The RS-485 board can be used for - Set the DIP SWITCH of the RS-485 board and the PAR 16 as indicated in 17 inst.
  • Page 13 MODBUS BOILER VARIABLES LIST Function Variable description Digital variables Request CH zone 1 Boiler CH Enable/Request D R/W Boiler DHW Enable D R/W Enable DHW preparation Not used Boiler Water Filling Function D R/W State CH zone 1 Boiler CH Mode State preparation DHW Boiler DHW Mode State presence flame...
  • Page 14 cascadE+modBus mode (fig. 4/d) CONNETTORE CABLATO This mode allows for MODBUS commu- (cod. 6319173) nication of at least two boilers in cascade WIRED CONNECTOR and is performed by requesting another (cod 6319173) RS-485 board provided in the kit code 8092244. attEntion: communication will occur only with the mastEr boiler, (boiler with par 15 = 0), interpreting the casca-...
  • Page 15 3 m. termination suitable products. Sime recommend the should be into an external gully or purpose 2.3.2 filter on the gas pipe made soakaway.
  • Page 16 initial phasE gasket, which must be fitted over the 2.5.2 type c (fig. 7 - fig. 8) systEm filling exhaust terminal prior to the flue being (fig. 5) installed (11 fig. 6 - fig. 7 - fig. 8 ). See fig The boiler becomes a type c device 8a for examples of suitable flue termina- when the intake terminal is removed...
  • Page 17 type B 80 mm accessories Code Description Load loss mm H 2 0 8077450A single) 90° bend 8077450 (6 pieces) 8077351A (single) 1000mm Extension 8077351 (6 pieces) 8077350A (single) 500mm Extension 8077350 (6 pieces) 8091300 Articulated Tile 8091212B Roof terminal (1381mm) 6296513 Extension with test point (250mm)
  • Page 18 type c (separate ø 80 flues and type c (separate ø 80 flues) coaxial exhaust terminal) 80 mm accessories warning: Code Description Load loss mm - installations with roof exit terminal (4a) and coaxial exhaust (13) require the Inlet Exaust use of a condensation recovery (12) that 8077450A (single) 90°...
  • Page 19 11. Visualizzazione numero di accensioni del bruciatore x 1.000 (es. 97.000 e 500) connection (optional) 2.6.5 heat demand by 230v aie istantanee notE: simE declines all responsibility STAFFA TELAIO CALDAIA for injury or damage to persons, ani- The boiler is designed for connection to a...
  • Page 20 TAbLE 2 Terminal position minimum spacing Directly below an openable window, air vent or any other ventilation opening 300 mm 12 in Below guttering, drain pipes or soil pipes 75 mm 3 in C/D Below eaves, balconies or carport roof (*) 200 mm 8 in From vertical drain pipes or soil pipes...
  • Page 21 BoilEr ElEctrical (fig. 11) SR (5 VDC) SF (5 VDC) SM (5 VDC) TS (24 VDC) SE (5 VDC) cd. 6301480 SB/SA (5 VDC) TA1 (24 VRAC) TA2 (24 VRAC) (24 VAC) RS-485 (24 VAC) connEctor sparE part codEs: F1-2 Fuse (4 AT) zone 1 environment thermostat Ignition transformer...

  • Page 22: Characteristics

    OFF = Electricity supply to boiler is on but not To be used only with the SIME programming kit and only ready for functioning. However, the protec- by authorised personnel. Do not connect other electronic tion functions are active.
  • Page 23 accEss to installEr’s information For access to information for the installer, press the key (3 fig. 14). Each time the key is pressed, the display moves to the next item of information. If expansion boards (MIXED zONE o INSOL) are connected, the related info will be displayed. If the key is not pressed, the system automatically quits the function.
  • Page 24 18. Display of heating return temperature sensor (SR) 29. Display of valve operation with board MIXED ZONE 2 (respectively ON and OFF) 18. Visualizzazione valore sonda ritorno riscaldamento (SR) 29. Visualizzazione comando chiusura valvola con schedino ZONA MIX 2 (rispettivamente ON e OFF) 19.
  • Page 25 ACCESS TO PARAMETERS INSTALLER INSTALLER’S PARAMETERS FAST CONFIGURATION PAR DESCRIPTION RANGE UNIT OF INC/DEC DEFAULT MEASUREMENT UNIT SETTING For access to the installer’s parameters, Combustion configuration -- = ND “- -” press simultaneously the keys 1 ... 31 or 2 seconds (3 fig. 12). Hydraulic configuration -- = ND “- -”...
  • Page 26 BOILER PAR 2 PARAMETERS INSTALLER Instantanious with diverter valve and flowmeter EXPANSION CARd Instantanious with diverter valve, PAR DESCRIPTION RANGE UNIT OF INC/DEC DEFAULT flowmeter and solar system MEASUREMENT UNIT SETTING Number of expansion boards 0 ... 3 Remote control cylinder with Mix valve stroke time 0 ...
  • Page 27 ExtErnal sEnsor (fig. 13) If there is an external sensor, the hea- ting settings SET can be taken from the climatic curves according to the external temperature and, in any case, limited to with the range values described in point 3.3 (parameters PAR 22 for zone 1, PAR 25 for zone 2 and PAR 28 for zone 3).
  • Page 28 to light. if after the third attempt the When voltage returns, the boiler will shown as a function of rate of flow in the flame has not been recognised, the automatically start up again. graph in fig. 14. boiler will lockout ALL06. This may If fitted, the speed of the modulating be due to worn or distorted ionisa- pump system is set as default (installa-...
  • Page 29 MURELLE 50 HE R - UK “murEllE hE 50 r (m)” with Kit compEnsator codE 8101586 and “Bt” BoilEr optional (fig. 15) 1 Gas valve 2 Condensation drain trap 3 DHW Cylinder pump (not supplied) 4 Fan 5 Heating flow sensor (SM) 6 Safety thermostat 95°C 7 Exhaust sensor (SF) 8 Primary exchanger...

  • Page 30: Commissioning, Use And Maintenance,Including Benchmark

    (fig. 15/a). stion circuit and working gas supply gas inlet pressure. Set up the boiler(s) to operate at Procedure for checking the combu- pressure. If required contact Sime maximum rate as described in 4.5.1 stion. Ltd for further assistance. Fig. 15/a...
  • Page 31 SET 13, by pressing the greater than the acceptable value AND authorised personnel using original the integrity of the complete flue system sime components. and combustion seals have been verified, 000 e 500) and the inlet gas pressure has been veri-...
  • Page 32 attEntion codice/code 8104970 modello/model murEllE hE 50 r (m) Before removing or refit- matricola/serial n. 9999999999 ting the front panel of the par 1 = 5 (g20) / 13 (g31) boiler, open the small par 2 = 5 upper plastic door. Fig.
  • Page 33 4.5.1 chimney sweep function (fig. 21) To check boiler combustion, press the installer’s key for a few seconds. The chimney sweep function will switch on and will continue for 15 minutes. The boiler will start working in hea- ting mode at maximum power, with cut off at 80°C and re-ignition at 70°C (attEntion! Ensure adequate circula- tion to the heating system is available...
  • Page 34 functioning Errors APRE When there is a functioning error, an Circuito Circuito alarm appears on the display and the riscaldamento 2 riscaldamento 2 blue luminous bar may becomes red. Descriptions of the errors with relative alarms and solutions are given below: Circuito –...
  • Page 35 APRE – safEty/limit thErmostat Error alarm 07 (fig. 23/f) If the connection with the safety ther- Circuito mostat/limit thermostat is interrupted, riscaldamento 2 the boiler will stop; the flame control will remain waiting to be switched off for one minute, keeping the system pump on for that period.
  • Page 36 zone) APRE Circuito Circuito – fan Error “all 15” (fig. 23/m) – safEty thErmostat intErVEn- – auxiliary sEnsor Error (s3) “all riscaldamento 2 riscaldamento 2 The fan speed does not fall within the tion sEcond mixEd zonE “all 22” 26” (fig. 23/20) (fig.
  • Page 37 – hEating rEturn sEnsor Error – rs-485 Board communication Error “all 30” (fig. 23/u) in cascadE modE “all 34” (fig. 23/j) When the heating return sensor (SR) is When PAR 15 is different from “- -” open or shorted, ALL 30 will be displa- and there is no communication betwe- yed.
  • Page 38 GAS BOILER SYSTEM COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the boiler as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty.
  • Page 39 SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. SERVICE 01 SERVICE 02 Date:...

  • Page 42: Fault Finding

    FAULT FINDING If an electrical fault occurs on the appli- SHORT CIRCUIT CHECk approx.: 240 V ac. ance the preliminary electrical system – Test leads from L to E “ ” meter checks must be carried out first. reads approx. 240 V ac. Switches turned FULL ON - meter set on When any service or replacement of elec- Ω...

  • Page 43: Replacement Of Parts

    SAFETY STAT RHS panel. should spares or replacement parts be used that are not supplied by Sime Ltd and only suit- Isolate the flow and return valves, and drain the Isolate the electrical and gas supply. boiler using the drain vents provided.

  • Page 44: Exploded Views

    EXpLODED VIEWS MURELLE HE 50 R / MURELLE HE 50 R M...
  • Page 45 Posiz. Codice Descrizione 6138533 Right hand side frame part 6138632 Left hand side frame part 6255431 Expansion vessel lower support 6010864 Water trap bracket 6256750 Transformer fixing bracket 6138897 Frame assembly lower side 6266081 Rear panel 6256751 Upper protection fixing bracket 6267131 Main exchanger supporting brack 6277207...
  • Page 46 6278857 Main exchanger door 6278361 Burner 6174823 Gasket for burner flange 6278891 Side low air-gas hose 6174819 Air-gas hose gasket 6278890 Air-gas hose cover 6174809 Gasket for ignition electrode 6221632 Ignition electrode 6221623 Ionisation electrode 6174812 Mixer/hose gasket 6239206 Mixer closing plate 6274307 Air/gas mixer 6274122...
  • Page 47 6216650 Manometer cock connection pipe 2030225 Gasket Ø 5,5x11x2 6217050 Manometer 0/6 bar 6001409 H.L. stat 100°C 6291981 Water pressure switch block 6291982 90° MM G 1/4" curve 6037551 Min.m.reset water press.switch 6037550 Safety m.reset water pres.switc 6120502 Nipple 3/4"x3/4" OT 6042207 Security valve 1/2"X3/4"...

  • Page 48: Appendix 1

    AppENDIX 1 INDUSTRY GUIDANCE FOR INSTALLERS ON CONDENSATE DRAINAGE PIPE INSTALLATION This guidance is endorsed by HHIC members. 1. BACKGROUND During recent winters the UK has experienced prolonged spells of extremely cold weather - down to minus 20 C and below in many areas. This resulted in a significant increase in the number of calls to boiler manufacturers and heating engineers from householders with condensing (high efficiency) boilers where the condensate drainage pipe had frozen and become blocked with ice, causing the boiler to shut down.
  • Page 49 2.1 INTERNAL TERMINATION: Wherever possible, the condensate drainage pipe should be terminated at a suitable internal foul water discharge point such as (a) an internal soil and vent stack or (b) an internal kitchen or bathroom waste pipe, washing machine waste pipe etc. A suitable permanent connection to the foul waste pipe should be used.
  • Page 50 The use of fittings, elbows etc should be kept to a minimum and any internal “burrs” on cut pipework should be removed so that the internal pipe section is as smooth as possible. The customer/householder should be advised that even with the above measures this type of installation could freeze, and that if this were to occur then boiler shutdown could result, requiring remedial action - possibly involving a chargeable engineer call-out.
  • Page 51 NOTES The Benchmark Commissioning Checklist (located at the back of the boiler installation manual) should be completed as required to record details of the condensate drainage pipe installation. Where an external condensate drainage pipe is installed, the customer should be made aware of the risks and consequences of its freezing and offered the option to fit trace heating (or other measures approved by the boiler manufacturer or service organisation).
  • Page 52 Figure 1 – Connection of condensate drainage pipe to internal soil and vent stack Boiler Visible air break 75 mm trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler Soil and vent stack Invert 450 mm minimum up to three storeys...
  • Page 53 Figure 2(a) – Connection of a condensate drainage pipe downstream of a sink, basin, bath or shower waste trap Boiler Visible air break 75 mm trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler.
  • Page 54 Figure 2(b) – Connection of a condensate drainage pipe upstream of a sink, basin, bath or shower waste trap Boiler Visible air break at plug-hole 75 mm sink, basin, bath or shower waste trap Sink, basin, bath or shower with integral overflow Open end of condensate drainage pipe direct into gully 25 mm min below grating but above water level;...
  • Page 55 Figure 3 – Connection of a condensate pump - typical method (NB manufacturer’s detailed instructions should be followed). IND GUIDE INST 10-11 HHIC REF T11/0027BRev8...
  • Page 56 Figure 4 – Connection of condensate drainage pipe to external soil and vent stack Boiler 450 mm minimum up to three storeys Visible air break Minimum internal diameter 19 mm 75 mm trap Pipe size transition point Visible air break and trap not required if Minimum internal diameter 30 mm there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler.
  • Page 57 Figure 5 – External termination to rainwater downpipe (NB only combined foul/rainwater drain) Condensate discharge pipe from boiler Air gap Pipe size transition point 68 mm PVCu strap-on fitting Water/weather proof insulation Minimum internal diameter 19 mm 43 mm 90° male/female bend Minimum internal diameter 30 mm External rain water pipe into foul water End cut at 45 °...
  • Page 58 Figure 6 – External drain, gully or rainwater hopper Boiler Visible air break 38 mm minimum trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 38 mm incorporated into the boiler External length of pipe 3 m maximum Open end of condensate drainage pipe direct into gully 25 mm min below grating but above water level;...
  • Page 59 Figure 7 – Example of a purpose-made soakaway Condensate discharge pipe from boiler Ground (this section of the condensate drainage pipe may be run either above or below ground level); End cut at 45 ° Diameter 100 mm minimum plastic tube Bottom of tube sealed Limestone chippings Two rows of three 12 mm holes at 25 mm centres, 50 mm from bottom of tube and...
  • Page 60 1a Blue Ridge Park Thunderhead Ridge Glasshoughton, Castleford, WF10 4UA Phone: 0845 9011114 Fax: 0845 9011115 www.sime.co.uk Email: enquiries@sime.co.uk...
