Summary of Contents for Gator GHDVR360

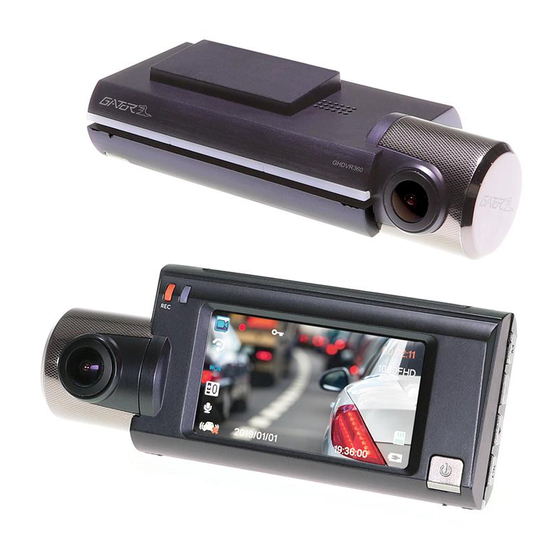

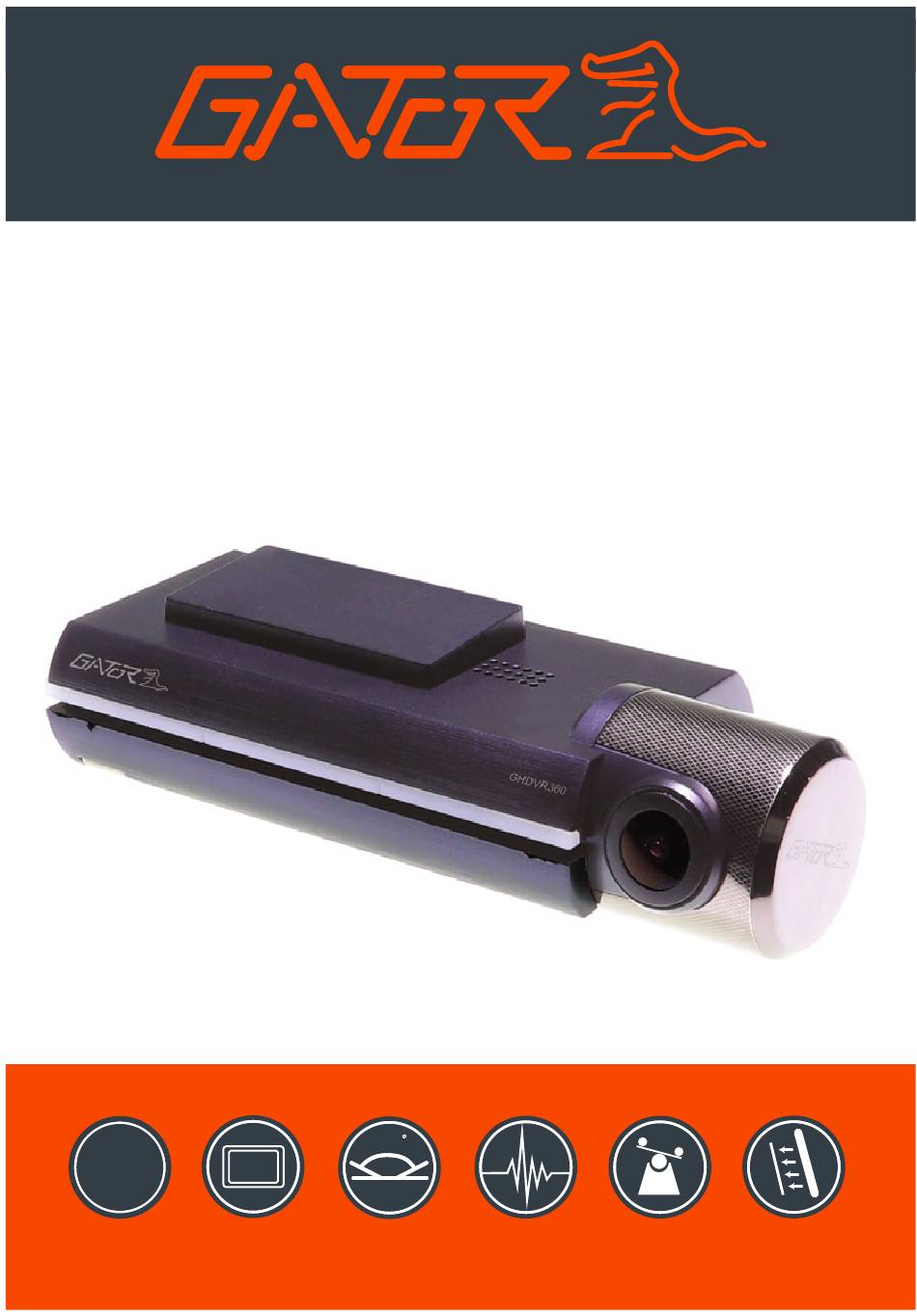

- Page 1 HDVR360 FULL HD 1080P DaSH cam Manual Full 2.5” 1080P Resolution Screen Size Super G Sensor Wide Angle Adhesive Window Mount Capacitor...
-
Page 2: Introduction
Introduction Thank you for purchasing the Gator GHDVR360 FULL HD 1080P Dash Cam. Please ensure that you have read the product manual and instructions in full, prior to installation and use. Failure to do so may result in product failure/damage or incorrect operation and therefore impact the product performance. -
Page 3: Table Of Contents
Table of Contents Introduction............2 Product features...........2 Table of contents..........3 Package components...........4 Product structure..........5 Installation of Dash Cam........7 Fixing the Dash Cam..........8 Universal hard wiring kit........8 Video and Photo operation........9 Dash Cam modes and settings......10 Instructions for video and photo operation..11 Video features............12 Video/Photo settings..........13 Photo features............15... -
Page 4: Package Components
Package components GHDVR360 Car Charger 8G Micro SD Mounting Card Bracket... -
Page 5: Product Structure
Product structure 1) Recording indicator light 5) Mini USB input 2) Rotating lens 6) Micro SD card input 3) Display screen 7) Mounting base 4) Power ON/OFF 8) LED light... - Page 6 8) Menu/Mode button 12) Mounting base 9) Arrow UP button 13) Speaker 10) Arrow Down button 14) Mounting base 11) OK button...
-
Page 7: Installation Of Dash Cam
Installation of Dash Cam 1. Check orientation of the Dash Cam camera first before installation. 2. Ensure windscreen is clean and free of debris. Use an Alcohol wipe to enhance adhesion. 3. Place mounting bracket on Dash Cam. Remove backing off 3M tape and press &... -
Page 8: Fixing The Dash Cam
Fixing the Dash Cam Suggested Universal hard wiring kit GUNIHWC ( Sold separately) This can be purchased separately from your retailer to hard wire your Dash Cam to your vehicle. -
Page 9: Video And Photo Operation
Video and photo operation Video Mode: There is a video camera icon at the top left corner of the LCD to signify you are on video mode. The recording indicator will start flashing RED. A red circle will flash on the screen and a red timer will appear when recording has started. -
Page 10: Dash Cam Modes And Settings
Photo Mode: There is a photo camera icon at the top left corner of the LCD to signify you are on photo mode. To take a photo press the [OK] button and you will hear a shutter click sound. Briefly the photo will display on the screen. Remaining photo space Photo mode... -
Page 11: Instructions For Video And Photo Operation
Instructions for video and photo playback 1. [OK] Button In playback mode, short press the [OK] button to play/pause the video. 2. [Menu/Mode] Button In playback mode, short press the [Menu/Mode] button to stop the video. Long press to exit playback 2. -
Page 12: Video Features
Video features Resolution: Three resolutions are available. 1080FHD, 720P & 480P Recommended resolution is 1080FHD. Loop recording: This feature allows you to set the size of the files your Dash Cam will record before saving and creating a new file. It allows the Dash Cam to record over the oldest recorded files once the card is full. -
Page 13: Video/Photo Settings
Video/Photo settings Date stamp: This feature will stamp the date and time on all your footage produced by your Dash Cam. Gravity sensing: This feature allows you to set the sensitivity of the Gravity sensor in the Dash Cam. In event of an impact the Dash Cam will take a locked video. -
Page 14: Default Setting
Video/Photo settings cont... Screen Saver: This feature will turn your LCD display screenoff after 30 seconds, 1 or 2 minutes but will continue to record regardless. This feature is useful for night driving as having the LCD on could be a distraction. Turn turn the display screen off/on manually quick press the power button. -
Page 15: Photo Features
Photo features Capture Mode: Timer shooting modes. Single, 2, 5 and 10 second timer. Resolution: Resolutions available are 12M, 10M, 8M, 5M, 3M Sequence: This feature will change allow you to take multiple photos with one click Quality: Fine, Normal & Economy Sharpness: Strong, Normal &... -
Page 16: Accessing Files Via Your Computer
Quick Review: Used for viewing images as a slideshow. Date Stamp: Used for displaying date and time on photos taken Accessing files via your computer To access video and images from your Dash Cam, remove the SD card and use a card reader to connect to your computer. -
Page 17: Super Capacitor Battery
Super capacitor battery If your Dash Cam is not used for an extended period, the time and date will default to factory settings. Formatting the SD card It is advisable to format the card weekly if you have the Gravity Sensing setting turned on, or create locked files. This will fill up the card causing it to stop recording any footage. -
Page 18: Product Specifications
Product specifications Display 2.5" High-resolution LCD screen Color Black Video Full HD 1920*1080P @ 30fps 720P 1280*720 480P 640*480 Picture format Picture 12M, 10M, 8M, 5M, 3M, 2M Viewing Angle 160 degree view angle Functions Super Night Vision, G-Sensor, Loop recording OSD Language Multiple Audio... -
Page 19: Troubleshooting Guide
Troubleshooting guide If there are problems with the device, please refer to the following methods to resolve. Cannot take pictures or record video? Please check whether there is enough space on the micro SD card or internal storage. Stopping automatically while recording? Due to the high amount of HD video data being recorded, please use a high-speed Micro SD card. -
Page 20: Safety Information & Warnings
Use a moist soft cloth to clean the lens before use, to avoid poor video footage. Gator is NOT responsible for the loss of any recorded video during operation. Although designed to withstand high impact of car collision, Gator does NOT guarantee recording of accidents where the impact may cause the device to be damaged. -
Page 21: Technical Assistance
Technical assistance If you need assistance setting up or using your Gator product now or in the future, call Gator Support. Australia TEL: 03 – 8587 8898 FAX: 03 – 8587 8866 Mon-Fri 9am – 5pm AEST Please retain this user guide for future reference.
