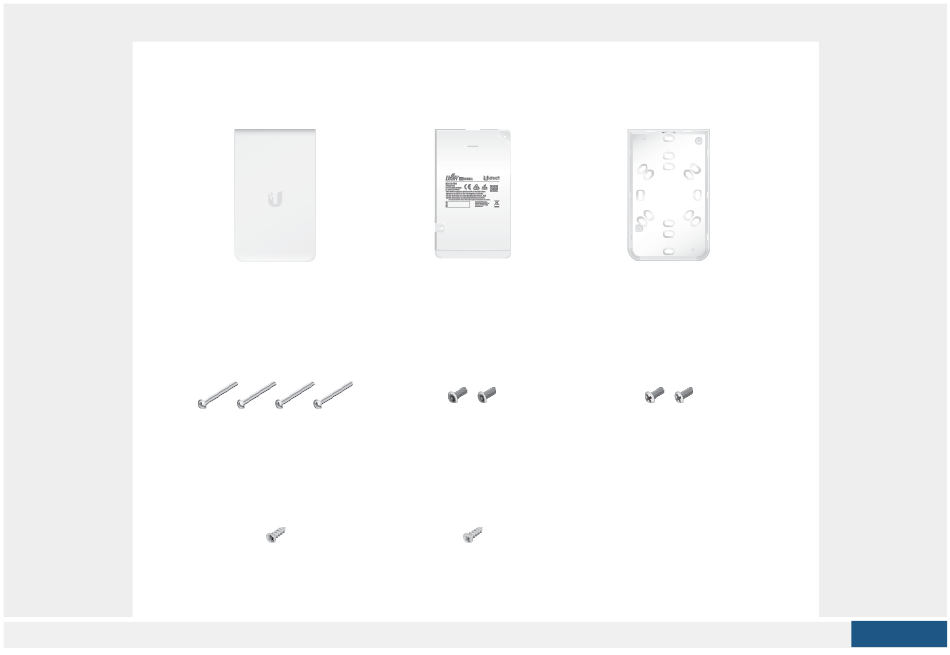

- Page 1 Package Contents Cover Plate UAP-IW-HD Back Plate Wall-Mount Screws (Qty. 4) Torx Screws (Qty. 2) Phillips Screws (Qty. 2) Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 2: Installation Requirements
Torx Security Screw Phillips Security Screw Installation Requirements Pre-installed electrical wall box Category 5 (or above) UTP cabling approved for indoor use Phillips and flathead screwdrivers T10 Torx bit (for Torx Screw option) UniFi Switch with PoE IMPORTANT: The UAP-IW-HD requires a UniFi Switch with PoE for power. Passive PoE adapters are not recommended. -
Page 3: Back Panel
Back Panel PoE In + Data 10/100/1000 Ethernet port supports data and 802.3af PoE input. The UAP-IW-HD itself requires 11W. 802.3at PoE+ input is required to use PoE passthrough. Connect this port to a UniFi Switch with PoE that is connected to your LAN and DHCP server. Bottom Panel Create PDF in your applications with the Pdfcrowd HTML to PDF API... - Page 4 PoE Out + LAN 1 10/100/1000 Ethernet port supports data and PoE passthrough (requires 802.3at PoE+ input). The maximum PoE passthrough output is 12W. Note: To power and connect an 802.3af device to the LAN, you must use 802.3at PoE+ input. LAN 2 - LAN 4 These three 10/100/1000 Ethernet ports support data only.
-
Page 5: Side Panel
Side Panel Security Screw (Optional) The Security Screw secures the Cover Plate after installation. You have the option to use the included Torx (shown) or Phillips Security Screw. Security Tab Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 6 In addition to the optional Security Screw, the Security Tab helps to secure the Cover Plate after installation. If you need to remove it, use a flathead screwdriver to depress the Security Tab while detaching the Cover Plate: Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 7: Back Plate
Back Plate The Back Plate offers a variety of mounting holes for use with different wall boxes. Here are a few examples with the appropriate mounting holes outlined in blue: USA or China Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 8 Europe Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 9: Hardware Installation
Hardware Installation An electrical wall box should be pre-installed with an Ethernet cable running from the box to a UniFi Switch with PoE. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD... - Page 10 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 11 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 12 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 13 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 14 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 15 Optional Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
- Page 16 Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
-
Page 17: Software Installation
Software Installation Download and install the latest version of the UniFi Controller software. Launch it and follow the on-screen instructions. The software and step-by-step instructions in the User Guide are available at: ui.com/download/unifi After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. -
Page 18: Mobile App Installation
Controller software, refer to the User Guide. Mobile App Installation Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google Play™ Store (Android). You can use it to provision a UniFi AP for basic functionality without configuring a UniFi Controller. -
Page 19: Specifications
Specifications UAP-IW-HD Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01") Weight 210 g (7.41 oz) Networking Interface (5) 10/100/1000 Ethernet Ports Button(s) Reset Power Method 802.3af PoE Supported 802.3at PoE+ Supported Power Supply UniFi Switch (PoE) Power Save Supported PoE Out... -
Page 20: Safety Notices
UAP-IW-HD Antenna Gain 2.4 GHz 1.8 dBi 5 GHz 4 dBi Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2 Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) Mounting 1-Gang Electrical Wall Box (Not Included) Operating Temperature -10 to 60° C (14 to 140° F) Operating Humidity 5 to 95% Noncondensing Certifications CE, FCC, IC... -
Page 21: Limited Warranty
1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 22 ISED Canada CAN ICES-3(A)/NMB-3(A) This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 23 This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. AVIS IMPORTANT Déclaration sur l’exposition aux rayonnements Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé.
-
Page 24: Weee Compliance Statement
Country List BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states. -
