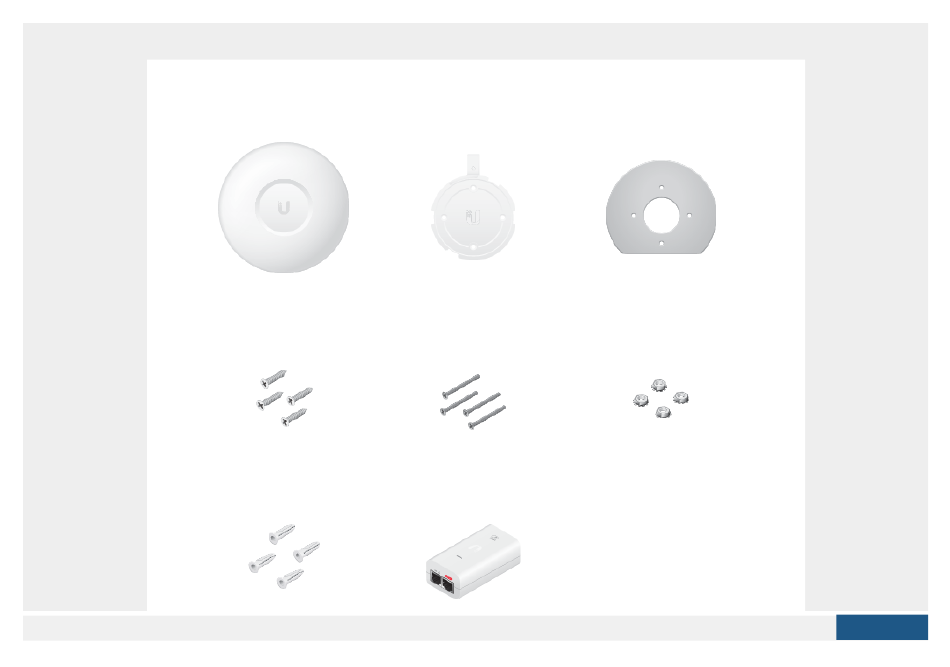

Package Contents
UniFi nanoHD AP
Mounting Bracket
Ceiling Backing Plate
Screws (Qty. 4)
Flat Head Screws (Qty. 4)
Keps Nuts (Qty. 4)
Create PDF in your applications with the Pdfcrowd
HTML to PDF API
PDFCROWD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniFi UAP-nanoHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti UniFi UAP-nanoHD

Summary of Contents for Ubiquiti UniFi UAP-nanoHD

  • Page 1 All manuals and user guides at all-guides.com Package Contents UniFi nanoHD AP Mounting Bracket Ceiling Backing Plate Screws (Qty. 4) Flat Head Screws (Qty. 4) Keps Nuts (Qty. 4) Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 2: Installation Requirements

    All manuals and user guides at all-guides.com Screw Anchors (Qty. 4) Gigabit PoE* (48V, 0.3A) with Mount Bracket Power Cord* * Included only in the single-pack of the UAP-nanoHD. Installation Requirements CAT5 cable Phillips screwdriver Drill and drill bit (6 mm for wall-mounting or 3 mm for ceiling-mounting) Optional: Drywall or keyhole saw (to cut 18 mm hole for Ethernet cable feed) IMPORTANT: The UAP-nanoHD requires the UniFi Controller v5.7 or higher,...
  • Page 3 All manuals and user guides at all-guides.com Ports Locking Notch Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 4: Mounting Bracket

    All manuals and user guides at all-guides.com The Locking Notch will be used with the Mounting Bracket to help secure the UniFi AP. (This is described further in the Mounting Bracket section.) Reset The Reset button serves two functions for the UniFi AP: Restart Press and release the Reset button quickly.
  • Page 5 All manuals and user guides at all-guides.com Locking Tab During installation, the Locking Tab on the Mounting Bracket moves from the Initial Position to the Final Position, where the Locking Tab fits securely into the Locking Notch on the UniFi AP to help prevent theft. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 6: Hardware Installation

    All manuals and user guides at all-guides.com Initial Position Final Position Note: If you need to remove the UniFi AP from the Mounting Bracket, insert a paper clip in the Slot to release the Locking Tab and turn the UniFi AP counterclockwise.
  • Page 7 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 8 All manuals and user guides at all-guides.com Optional Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 9 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 10 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 11 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 12 All manuals and user guides at all-guides.com Optional Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 13 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 14 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 15 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...

  • Page 16: Ceiling Mount

    All manuals and user guides at all-guides.com Ceiling Mount Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 17 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 18 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 19 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 20 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 21 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 22 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 23 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 24 All manuals and user guides at all-guides.com Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
  • Page 25 Ubiquiti UniFi Switch with PoE 802.3af PoE compliant switch Ubiquiti Gigabit PoE Adapter (48V, 0.3A) The single-pack of the UAP-nanoHD includes one Gigabit PoE adapter. For multi-pack units, PoE adapters or a UniFi Switch with PoE may be purchased separately.
  • Page 26 All manuals and user guides at all-guides.com Connecting to a PoE Switch Connect the Ethernet cable from the UniFi AP directly to an 802.3af-compliant port on the switch. Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the PoE adapter. 2.

  • Page 27: Software Installation

    All manuals and user guides at all-guides.com Mounting the PoE Adapter (Optional) 1. Remove the PoE Mounting Bracket from the adapter, place the bracket at the desired location, and mark the two holes. 2. Pre-drill the holes if necessary, and secure the bracket using two fasteners (not included).

  • Page 28: Mobile App Installation

    Controller software, refer to the User Guide. Mobile App Installation Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google Play™ Store (Android). You can use it to provision a UniFi AP for basic...

  • Page 29: Specifications

    All manuals and user guides at all-guides.com functionality without configuring a UniFi Controller. It also allows seamless provisioning of APs for remote controllers (controllers not on the same Layer 2 network) and easy access to local controllers and those monitored on unifi.ui.com Specifications UAP-nanoHD...

  • Page 30: Safety Notices

    All manuals and user guides at all-guides.com UAP-nanoHD Radio Rate 2.4 GHz 300 Mbps 5 GHz 1733 Mbps Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2 Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) BSSID 8 per Radio Mounting Wall/Ceiling (Kits Included) Operating Temperature -10 to 70° C (14 to 158° F) Operating Humidity 5 to 95% Noncondensing Certifications...

  • Page 31: Electrical Safety Information

    All manuals and user guides at all-guides.com 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 32: Limited Warranty

    All manuals and user guides at all-guides.com Limited Warranty ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 33: Important Note

    All manuals and user guides at all-guides.com 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter has been approved by ISED Canada. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

  • Page 34: Australia And New Zealand

    All manuals and user guides at all-guides.com Déclaration sur l’exposition aux rayonnements Cet équipement est conforme aux limites prévues pour l’exposition aux rayonnements dans un environnement non contrôlé. Lors de l’installation et de la mise en fonctionnement de l’équipement, assurez-vous qu’il y ait une distance minimale de 20 cm entre l’élément rayonnant et vous.

  • Page 35: Weee Compliance Statement

    All manuals and user guides at all-guides.com Note: This device meets Max. TX power limit per ETSI regulations. The following apply to products that operate in the 5 GHz frequency range: Note: This device is restricted to indoor use only when operating in the 5150 - 5350 MHz frequency range within all member states.
  • Page 36 All manuals and user guides at all-guides.com © 2020 Ubiquiti Inc. All rights reserved. Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD...
