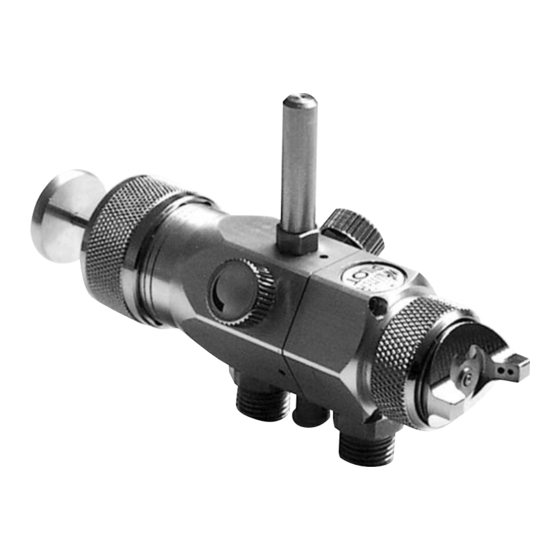

Fax: +49(0)202 / 787 - 2217 Sachwidrige Verwendung www.walther-pilot.de • e-mail: info@walther-pilot.de Typenbezeichnung Automatische Spritzpistole Technische Beschreibung PILOT WA 600 / WA 610 / WA 625 / WA 635 WA 600 V 20 600 WA 625 MP V 20 607 Sicherheitshinweise...
Ersatzteilliste PILOT WA 600 / WA 610 / WA 625 und WA 635 Ersatzteilliste PILOT WA 600 / WA 610 / WA 625 und WA 635 PILOT WA 600 PILOT WA 610-U PILOT WA 625-MP PILOT WA 635-MP-U V 20 600...
Die Temperatur des Spritzmaterials darf 80°C nicht überschreiten. Die Spritzautomaten PILOT WA 600, WA 610, WA 625 und WA 635 arbeiten vollauto- Die Spritzautomaten PILOT WA 600, WA 610, WA 625 und WA 635 sind keine hand- matisch und werden über eine 3/2-Wege-Steuerventil angesteuert. Dazu können geführten Spritzautomaten und müssen deshalb an einer geeigneten Halterung...
Sicherheitshinweise Inbetriebnahme Kennzeichnung der Sicherheitshinweise Bevor Sie den Spritzautomaten in Betrieb setzen, müssen folgende Voraussetzungen erfüllt sein: Warnung • Der Steuerluftdruck muss an dem Spritzautomaten anstehen. Das Piktogramm und die Dringlichkeitsstufe „Warnung“ kennzeichnen eine • Der Zerstäuberluftdruck muss an dem Spritzautomaten anstehen. mögliche Gefahr für Personen.
Luftkopf wechseln Spritzbild verändern • Zur Auswahl stehen Rund- oder Breitstrahlköpfe. Schrauben Sie die Luftkopfmutter ab. • Durch Verändern der Zerstäuberluft wird die Strahlbreite variiert. Entfernen Sie den Luftkopf (Pos. 1). Die Materialdurchflussmenge wird durch den Materialdruck und dem Durchmesser der Materialdüse bestimmt.
Fehlersuche und -beseitigung • Verwenden Sie zur Reinigung keine spitzen oder harten Gegenstände. Präzisionsteile könnten sonst beschädigt werden und das Spritzergebnis Warnung verschlechtern. • Für Schäden, die aus einer unsachgemäßen Behandlung herrühren, übernimmt Schalten Sie vor jeder Instandsetzung die Steuer- und Zerstäuberluft sowie die Materialzufuhr zur Spritzpistole drucklos - Verletzungsgefahr.
Fax: +49(0)202 / 787 - 2217 Normal Use www.walther-pilot.de • e-mail: info@walther-pilot.de Improper use Type Designation Automatic Spray Gun PILOT WA 600 / WA 610 / WA 625 / WA 635 Technical Description WA 600 V 20 600 WA 625 MP V 20 607...
Page 11
Listing of Replacement Parts PILOT WA 600 / WA 610 / WA 625 and WA 635 Listing of Replacement Parts PILOT WA 600 / WA 610 / WA 625 and WA 635 PILOT WA 600 PILOT WA 610-U PILOT WA 625-MP...
The temperature of the material to be sprayed must not exceed 80°C. The models PILOT WA 600, WA 610, WA 625 and WA 635 are not a hand-held spray The models PILOT WA 600, WA 610, WA 625 and WA 635 are operated automati- guns and must therefore be mounted in a suitable bracket.
Using the Spray Gun Safety instructions Identification of safety instructions Before using the spray gun, ensure that the following conditions apply: Warning • The control air pressure is applied to the spray gun • The atomising air pressure is applied to the spray gun The pictogram and the urgency level “Warning“...
Changing the Air Cap Changing the Spray Pattern • Round-fan or wide-fan air caps are available. Unscrew the air cap nut. • The fan width can be varied by changing the atomising air. Remove the air cap (Pos.1). • The material flow rate is determined by the material pressure and the diameter of the material nozzle.
Troubleshooting • Do not use sharp or hard objects to clean the spray gun, as this might cause damage to precision parts and impair the spraying result. Warning • WALTHER Spritz- und Lackiersysteme cannot accept any liability for damage caused by improper treatment of the spray gun. Prior to any servicing and repair work the spray gun should be inunpressurised state, i.e.
