WALTHER PILOT
Betriebsanleitung / Operating Instructions /
Automatische Spritzpistolen / Automatic Spray Guns

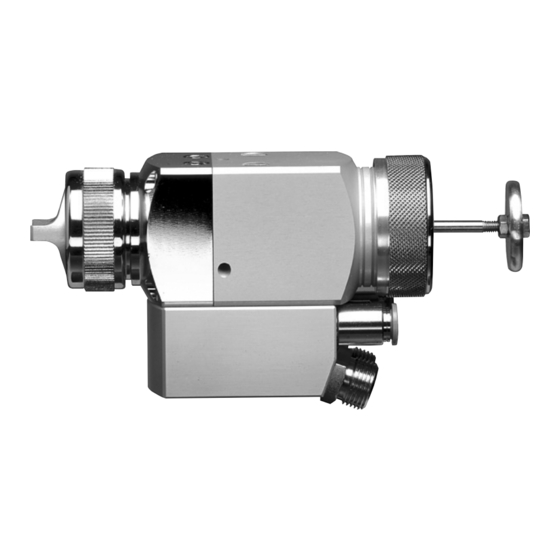

PILOT WA 800
Modelle / Models
REV. 03/10

Advertisement

Table of Contents
loading

Related Manuals for WALTHER PILOT pilot wa 800

Summary of Contents for WALTHER PILOT pilot wa 800

  • Page 1 Automatische Spritzpistolen / Automatic Spray Guns • Hand-Spritzpistolen • Hand-Held Spray Guns • Automatik-Spritzpistolen • Automatic Spray Guns • Niederdruck-Spritzpistolen (System • Low Pressure Spray Guns (System PILOT WA 800 HVLP) HVLP) • Two-Component Spray Guns • Zweikomponenten-Spritzpistolen • Materialdruckbehälter • Material Pressure Tanks Modelle / Models •...
  • Page 2 PILOT WA 800 Mit Innensteuerung Ohne Innensteuerung PILOT WA 805...

  • Page 3: Eg-Konformitätserklärung

    Fax: +49(0)202 / 787 - 217 Fax: +49(0)202 / 787 - 217 www.walther-pilot.de • e-mail: info@walther-pilot.de www.walther-pilot.de • e-mail: info@walther-pilot.de Type Designation Automatic Spray Gun PILOT WA 800-Models Typenbezeichnung Automatische Spritzpistolen PILOT WA 800-Serie WA 800 (Standard version with internal control)
  • Page 4 List of replacement parts: PILOT WA 800 V 20 800 Replacement parts - other than given values of PILOT WA 800 (Standard with internal control) Replacement parts: PILOT WA 805 V 20 805 (Standard without internal control) Pos. Article-No. Description Pos.

  • Page 5: Repair Kit

    Front body V 00 101 01 003 Double nipple 2x WALTHER repair kits are available for PILOT WA 800 - WA 855-MP-U and the correspon- Blanking plug not applicable ding versions of adhesive coating PILOT WA 870-K - WA 873-HVLP-K-U spray guns inclu-...
  • Page 6 Repairs / Replacements Replacement of defective Needle Seal Packings The automatic spray guns PILOT WA 800, WA 810, WA 815, WA 820, WA 825, WA Replacement of Nozzles, Needles, Springs and Seals 830, WA 835, WA 840, WA 845, WA 850, WA 855, WA 870, WA 871, WA 872 and WA 873 are exclusively designed for use with sprayable material types and grades.

  • Page 7: Technical Description

    The material flow rate is adjusted for all models at the gun by the cap (pos. 23). If any irregularities are observed while the equipment is in operation, the equipment The material inlet duct of PILOT WA 800-models can be opened manually so as to must be put out of operation immediately and WALTHER Spritz-und Lackiersysteme permit, for example, cleaning of a clogged material nozzle.
  • Page 8 • Never point the spray gun at persons or animals. Risk of injury! 4 = Material inlet fitting for the circulation versions of the PILOT WA 800 models • Always observe the spraying and safety instructions given by the manufacturers of The spray gun is now properly installed and connected and ready for operation.
  • Page 9 Spray Pattern Adjustments The following requirements must be met before taking this spray gun into operati- The spray pattern of the PILOT WA 800 models can be adjusted as follows: • control air must be available at the gun. Adjusting the jet pattern •...
  • Page 10 Correcting of Spray Pattern Imperfections Replacement of Material Needle 1. Unscrew the draw bar (pos. 24). The following table shows what to do to correct a spray pattern. 2. Unscrew the cap (pos. 23) from piston casing (pos. 14). desireable spray-painting result 3.
  • Page 11 Dismantle the spray gun in accordance with Chapter 5.5 ReTooling the Spray Gun, if the following components have to be replaced: The material supply of the PILOT WA 800 - WA 873 can be manually released so that • Material Nozzle it is not necessary to operate the complete spraying system.
  • Page 12 WALTHER PILOT repair kits are available for PILOT WA 800 models spray guns inclu- Specification Data ding all wearing parts: Nozzle Sizes: 0.5 - 0.8 - 1.0 - 1.2 - 1.4 - 1.5 - 1.8 - 2.0 - Article No.: V 16 800 03 . . 3 (Standard-versions) 2.2 - 2.5 mm ø...
