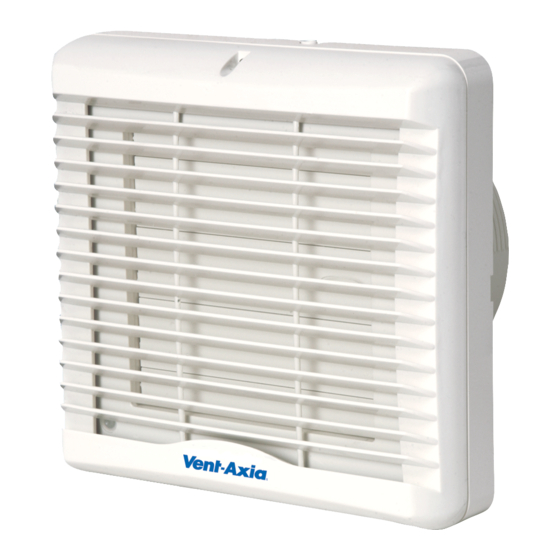

Summary of Contents for Vent-Axia LoWatt Series
- Page 1 UTILITY & KITCHEN FAN Installation and Wiring Instructions Stock Ref. N° 45 91 23 (Pullcord) 45 91 24 (Timer) 45 91 25 (Humidistat) READ INSTRUCTIONS IN CONJUNCTION WITH ILLUSTRATIONS PLEASE SAVE THESE INSTRUCTIONS...
- Page 2 C. Ensure that the mains supply (Voltage, Frequency, and Phase) complies with the rating label. D. The Fan should only be used in conjunction with the appropriate Vent-Axia products. E. It is recommended that the connection to the fan connecter terminals is made with flexible cable.
- Page 3 INSTALLATION. PANEL MOUNTING 1. Cut a 152mm∅ hole through the panel, also suitable for existing holes up to 185mm∅. 2. Remove the Indoor Grille [A]. Loosen the screw (top middle) of the Grille, to release front grille gently lever the Grille downwards away from the Inner Cover [B].
- Page 4 WIRING. WARNING: THE FAN AND ANY ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING THE INSTALLATION / OR MAINTENANCE. 1. Select and follow the appropriate wiring diagram (Fig. 2-4). 2. Check all connections have been made correctly and ensure all terminal connections and cable clamps are securely fastened.
- Page 5 Fig. 4. LoWatt U/KH (45 91 25) Humidity Controlled Model. Select the wiring configuration required for the Utility or Kitchen. 1 Phase Supply (220-240V 50Hz). FUSE Switched Fused Spur Humidity Adjuster. 8V = Low Speed for a Utility Room 12V = High Speed for a Kitchen Humidity Set-Point Adjustment.
- Page 6 Kingdom contact your local supplier. Vent-Axia guarantees this product for five years from the date of purchase against faulty material or workmanship. In the event of any part being found to be defective, the product will be repaired, or at the Company’s discretion the product will be replaced without charge, provided that the product: Has been installed and used in accordance with the instruction given with each unit.
