Summary of Contents for Digi TransPort WR44v2

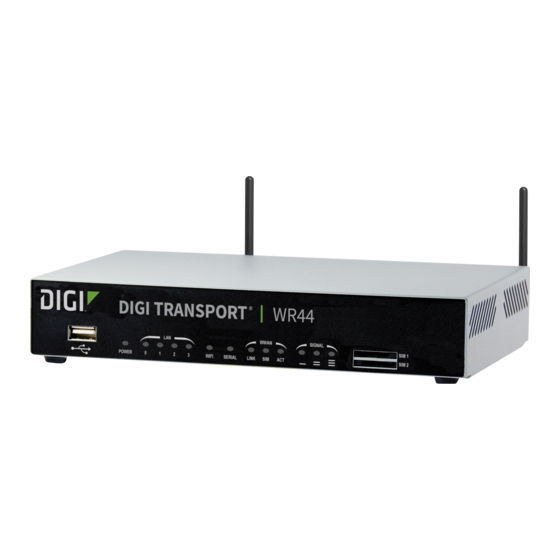

- Page 1 T r a n s P o r t W R 4 4 v 2 ® Wireless Routers Installation Guide November 6, 2013 90001264-88_D...
- Page 2 United States and other countries worldwide. All other trademarks mentioned in this Digi International reserves the right to modify or revise all or part of this document, its contents, and any document are the property of their respective owners.
- Page 3 A complete which require specific consideration. Please take the time to read and understand the following guidance. Digi reference guide to the software features that are available on the product is available separately in PDF format International assumes no liability for an end user’s failure to comply with these precautions.
-
Page 4: Table Of Contents
Unable to Open the TransPort WR44v2 Web Interface .............. 21 Cord or have no Power Supply) GPS Antenna Wi-Fi Antenna Unable to Log in to the Digi TransPort WR44v2 Web Interface ........... 21 [GPS models only] [Wi-Fi models only] Digi TransPort WR44v2 Specifications �����������������������������������������������22 Digi TransPort WR44v2 Accessories ���������������������������������������������������23... -
Page 5: Transport Wr44
Digi TransPort WR routers are ideal for transportation and mobile applications. Flexible power options include 1. Commercial Enclosure AC, DC and 4-pin Molex connectors for direct integration into vehicle applications. Also available is the Digi Remote Manager™ which provides easy setup, configuration and maintenance of large installations of Digi 2. -
Page 6: Digi Transport Wr44V2 Rear Panel Features
0 LEDs illuminated: < -116 dBm (effectively no signal) • 1 LED illuminated: >= -115 dBm and <= -104 dBm (weak) Digi TransPort WR44v2 Under Unit Features • 2 LEDs illuminated: >= -103 dBm and <= -94 dBm (medium) •... -
Page 7: Digi Transport Wr44V2 Additional Hardware Features
It also provides a relay I/O port, a voltage monitoring port, and internal temperature monitoring. Digi TransPort WR44v2 Additional Hardware Features 6. Telemetry 2 I/O Interface - Provides 4 isolated analog I/O ports and 4 non-isolated digital I/O ports. -
Page 8: Digi Transport Wr44V2 Installation
Mounting Tips For added security, Digi offers a “SIM Slot Cover Plate” that can be installed on the unit to deter theft or The TransPort WR44 should be positioned on a flat, level surface or via a wall-mount, rackmount, or DIN rail tampering of the SIM cards, (see the Accessories section on page 23 for more information). -
Page 9: Digi Transport Wr44V2 Configuration
Digi TransPort ® WR44v2 Installation Guide Digi TransPort ® WR44v2 Installation Guide Configuration Digi TransPort WR44v2 Once the unit has been installed and powered up, it needs to be configured to communicate with the LAN and WAN. Configuration is performed either using the Command Line Interface (CLI) or the Web Interface. -
Page 10: Digi Transport Wr44V2 Command Line Interface (Cli)
15 of the Installation section). Also, terminal emulation software (such as HyperTerminal) will be required. authenticates the modem and retrieves account information which is written to flash memory on the modem module itself, not the Digi’s configuration file. As the mobile account information is stored on the CDMA module, CLI Notes performing a factory reset on the unit will not remove provisioning information from the CDMA module. -
Page 11: Troubleshooting The Digi Transport Wr44V22 Configuration
“straight through” RS232 serial cable. This will allow you to change the configuration via the Command Line Interface (CLI). Please refer to the Digi TransPort User Guide for information on how to use the CLI. The User Guide can be downloaded from the Digi Support site. If you have further questions about your product please contact Digi Technical Support (see page 4 for contact information). -
Page 12: Digi Transport Wr44V2 Specifications
Digi TransPort ® WR44v2 Installation Guide Digi TransPort ® WR44v2 Installation Guide Digi TransPort WR44v2 Specifications Digi TransPort WR44v2 Accessories Specifications Digi TransPort WR44 / WR44 R AC Power Supplies General Features: North America (NA) 76000823 Dimensions 5.7” x 8.3” x 1.6”... -
Page 13: Digi Transport Wr44V2 Certifications
Digi TransPort ® WR44v2 Installation Guide Digi TransPort ® WR44v2 Installation Guide Antennas - Cellular Digi TransPort WR44v2 Certifications Direct Mount, Quad Band, 2dBi 76002050 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant... - Page 14 Digi International 11001 Bren Road East Minnetonka, MN 55343 952-912-3444 or 877-912-3444 90001264-88...
- Page 15 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Digi International DC-ANT-24DT-10 DC-ANT-24DT-25 DC-ANT-24DT-50...
