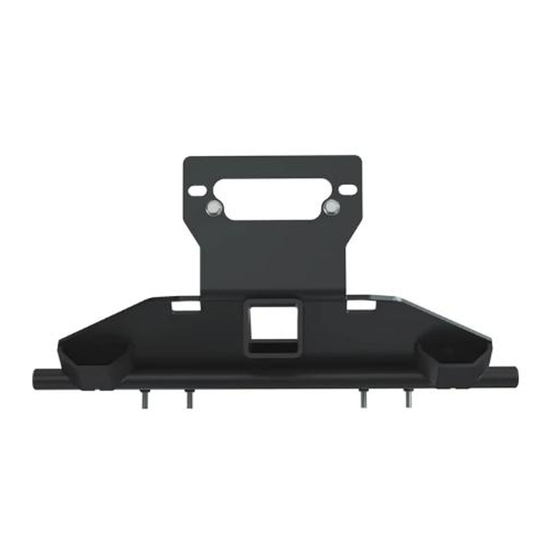

FRONT-CONNECT PLOW
MOUNT KIT
FOR YAMAHA VIKING
P/N 35-5010
ASSEMBLY / INSTALLATION MANUAL
Application
FRONT-CONNECT PLOW PUSH FRAME NO. 35-0070
Before you begin, please read these instructions and check to be sure all parts and tools are accounted for.
The following instructions contain details required to install and service the contents of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 35-5010
Summary of Contents for Kolpin Outdoors 35-5010
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 2 To increase traction during plow operation, operators can try: Securing weight to the ATV / UTV for additional tire downforce, • reducing tire air pressure, or installing tire chains. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 3 See www.Kolpin.com for products to complete your plow system. TOOLS REQUIRED Safety Glasses • Socket Set, Metric • Torque Wrench • Wrench Set, Metric • Drill • 3/8” Drill Bit • © 2021 Kolpin Outdoors Inc. REV 00...
- Page 4 Part Number Viking Mounting Bracket Hex Flange Bolt, Zinc Plated, M8-1.25 x 30mm LG Hex Flange Locknut, Zinc Plated, M8-1.25 Square U-Bolt, Zinc Plated, M8-1.25 x 50mm x 90mm LG Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 00...
- Page 5 7. Remove plow mount and drill holes. Note, drilling Plastic access may be easier if skid plate is removed Ill. 1-3 skid from vehicle. plate Mark drilling holes Drill marked Ill. 1-4 holes FRONT © 2021 Kolpin Outdoors Inc. REV 00...
- Page 6 Maximum Tongue Weight: 100 lbs (45 Kg) Maximum Tow Weight: 1200 lbs (540 Kg) Ill. 1-8 Ill. 1-7 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 00...
