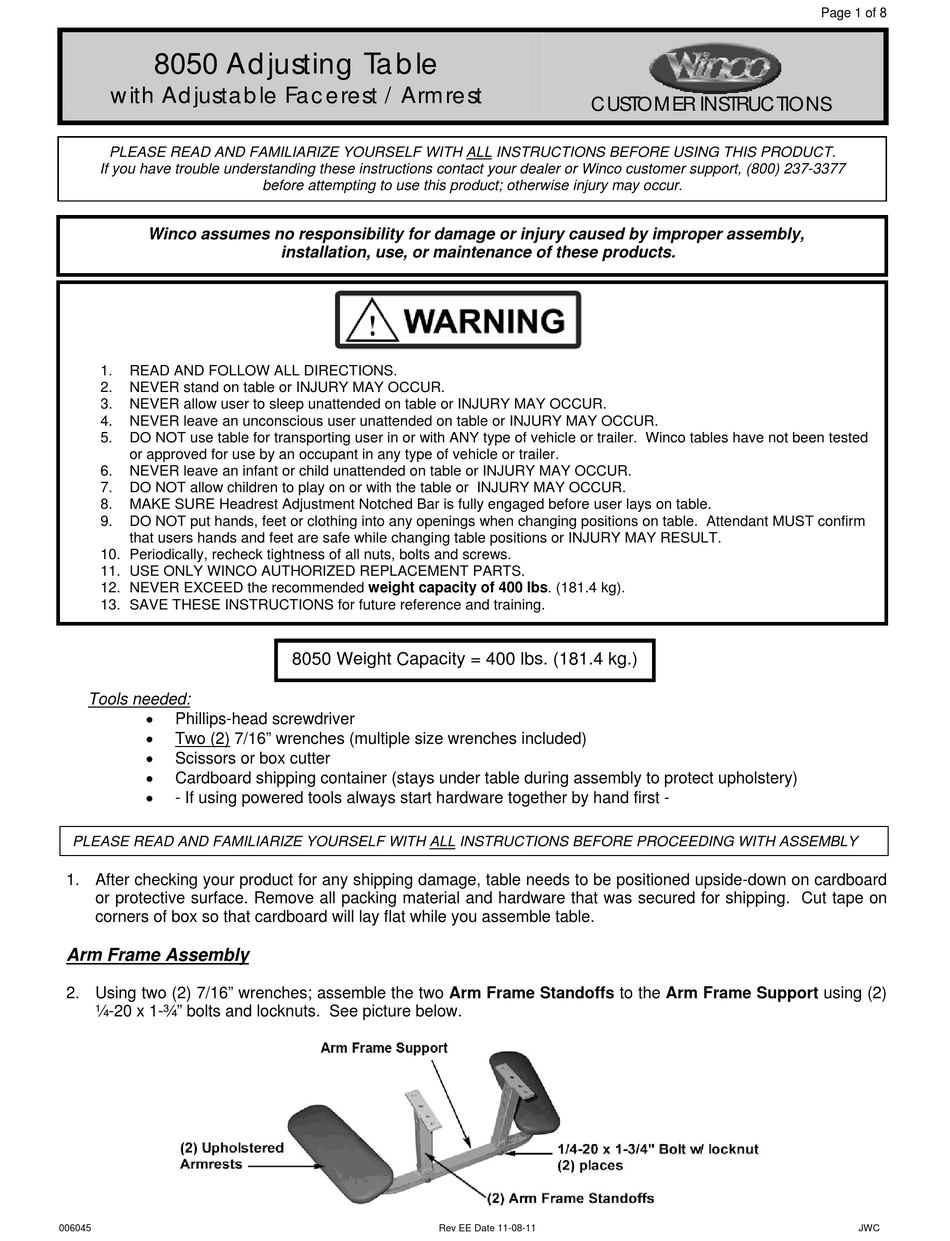

Winco 8050 Customer Instructions

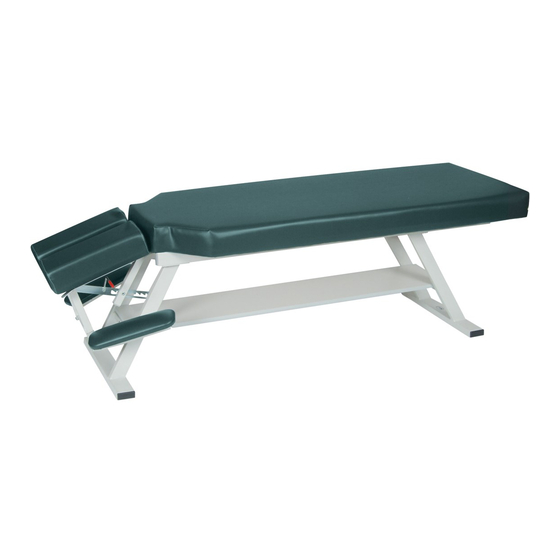

8050 Adjusting Table
with Adjustable Facerest / Armrest
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions contact your dealer or Winco customer support, (800) 237-3377
Winco assumes no responsibility for damage or injury caused by improper assembly,
1. READ AND FOLLOW ALL DIRECTIONS.
2. NEVER stand on table or INJURY MAY OCCUR.
3. NEVER allow user to sleep unattended on table or INJURY MAY OCCUR.
4. NEVER leave an unconscious user unattended on table or INJURY MAY OCCUR.
5. DO NOT use table for transporting user in or with ANY type of vehicle or trailer. Winco tables have not been tested
or approved for use by an occupant in any type of vehicle or trailer.
6. NEVER leave an infant or child unattended on table or INJURY MAY OCCUR.
7. DO NOT allow children to play on or with the table or INJURY MAY OCCUR.
8. MAKE SURE Headrest Adjustment Notched Bar is fully engaged before user lays on table.
9. DO NOT put hands, feet or clothing into any openings when changing positions on table. Attendant MUST confirm
that users hands and feet are safe while changing table positions or INJURY MAY RESULT.
10. Periodically, recheck tightness of all nuts, bolts and screws.
11. USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
12. NEVER EXCEED the recommended weight capacity of 400 lbs. (181.4 kg).
13. SAVE THESE INSTRUCTIONS for future reference and training.

Tools needed:


Phillips-head screwdriver

Two (2) 7/16" wrenches (multiple size wrenches included)

Scissors or box cutter

Cardboard shipping container (stays under table during assembly to protect upholstery)

- If using powered tools always start hardware together by hand first -
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY
1. After checking your product for any shipping damage, table needs to be positioned upside-down on cardboard
or protective surface. Remove all packing material and hardware that was secured for shipping. Cut tape on
corners of box so that cardboard will lay flat while you assemble table.

Arm Frame Assembly

2. Using two (2) 7/16" wrenches; assemble the two Arm Frame Standoffs to the Arm Frame Support using (2)
¼-20 x 1-¾" bolts and locknuts. See picture below.
006045
before attempting to use this product; otherwise injury may occur.
installation, use, or maintenance of these products.
8050 Weight Capacity = 400 lbs. (181.4 kg.)
