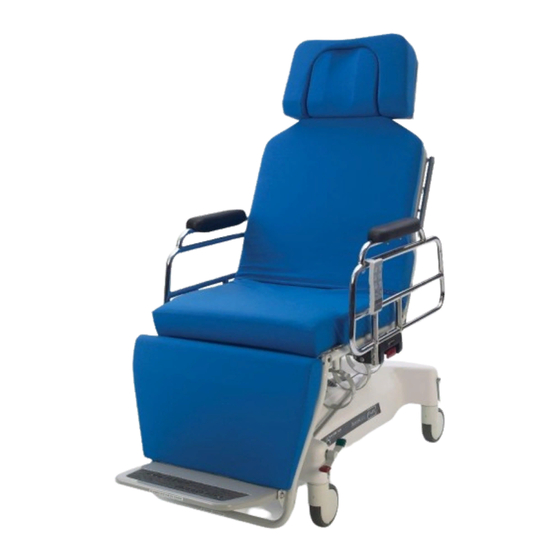

OPERATION MANUAL
Model TMM5 Series
Surgi-Chair Series
Options:
W
Wide
T
Tall
L
Low
F
Folding Footrest
E
Export
B
Battery
A
AC Power
Lane – Ocala, FL 34474-9307
st
5516 S.W. 1
Phone: 1-800-237-3377 - Fax: 1-352-854-9544
www.transmotionmedical.com
Page 1 of 30
Document No.: OM TMM5 SERIES
Revision: V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TransMotion Medical TMM5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winco TransMotion Medical TMM5 Series

Summary of Contents for Winco TransMotion Medical TMM5 Series

  • Page 1 OPERATION MANUAL Model TMM5 Series Surgi-Chair Series Options: Wide Tall Folding Footrest Export Battery AC Power Lane – Ocala, FL 34474-9307 5516 S.W. 1 Phone: 1-800-237-3377 - Fax: 1-352-854-9544 www.transmotionmedical.com Document No.: OM TMM5 SERIES Revision: V Page 1 of 30...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT NOTES ABOUT THIS MANUAL ................3 SPECIAL NOTES - SIGNAL WORDS ..................3 SAFETY PRECAUTIONS ......................4 LABELING DIAGRAMS (TMM5-B shown) ..................8 OPERATING INSTRUCTIONS ....................11 BACK SECTION QUICK RELEASE ........................11 CASTER BRAKE OPERATION ..........................12 SIDE RAIL OPERATION ............................12 ADJUSTING SIDE RAIL ANGLE ...........................

  • Page 3: Important Notes About This Manual

    IMPORTANT NOTES ABOUT THIS MANUAL This Operations Manual is designed to assist you with operating your TransMotion Medical Product. Carefully read this manual before using the equipment or doing service / maintenance on it. If you are unable to understand the WARNINGS and CAUTIONS and instructions, contact TransMotion Medical customer service before attempting to operate or service the equipment.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS WARNINGS: CHAIR OPERATION BY QUALIFIED, TRAINED MEDICAL PERSONNEL ONLY  The chair is intended to be operated only by qualified, trained medical staff. Operation of chair by unauthorized / untrained / lay people must be avoided.  in its lowest position. USE CAUTION ON RAMPS ...
  • Page 5 ACCESSORY WARNINGS:  To prevent serious injury and property damage, review operating manuals of all medical equipment and accessories that may be used with, or attached to, this chair.  Using the supplied accessories in the incorrect manner may cause patient, bystander, or facility harm. ...
  • Page 6 PLUG CHAIR INTO PROPERLY GROUNDED WALL OUTLET MARKED “HOSPITAL ONLY” OR “HOSPITAL GRADE” For “A” Option Only  Chair is equipped with hospital-grade three-prong plug for protection against electric shock, and must be plugged into properly grounded hospital-grade wall outlet. MAX WEIGHT OF BACK SURGICAL BAR ...
  • Page 7 NOTICES: MAXIMUM PATIENT WEIGHT IS 500 lbs (227 kg)  Maximum patient weight capacity of chair is 500 pounds. If exceeded, damage to chair could occur. CHAIR IS INTENDED FOR INDOOR USE ONLY  To ensure proper operation and extend chair life, only use chair in specified environment. USE CDC’s UNIVERSAL PRECAUTIONS ...

  • Page 8: Labeling Diagrams (Tmm5-B Shown)

    LABELING DIAGRAMS (TMM5-B shown) INSPECT LABELS PERIODICALLY Every three months, inspect all labels and ensure that they are legible, and not tattered, torn, or missing. Refer to label locations in figures below. If labels need to be replaced, contact TransMotion Medical Customer Service at 1-800-237-3377.
  • Page 9 Document No.: OM TMM5 SERIES Revision: V Page 9 of 30...
  • Page 10 Document No.: OM TMM5 SERIES Revision: V Page 10 of 30...

  • Page 11: Operating Instructions

    OPERATING INSTRUCTIONS BACK SECTION QUICK RELEASE LOCATE RELEASE LEVER Back section quick release (red) lever is located under seat on patient’s right side. ACTIVATE RELEASE LEVER To activate back section quick release, pull red lever out towards the arm rail. When weight is applied, back section will drop until lever is released.

  • Page 12: Caster Brake Operation

    CASTER BRAKE OPERATION BRAKE MODE Activate braking system by pressing down on red end of either brake pedal located at base of chair. This mode prevents all four casters from swiveling and all wheels from spinning. NEUTRAL MODE Activate neutral mode by placing either brake pedal into a horizontal orientation.

  • Page 13: Adjusting Side Rail Angle

    RAISING SIDE RAIL Lift side rail until it is in “up” position.  Red rail release tab will engage (lock) automatically.  Ensure side rail is secure by pulling on rail after it is raised. ADJUSTING SIDE RAIL ANGLE Remove cushion and seat pan by removing four pan head screws.
  • Page 14 To move outward, rotate bottom jam nut as shown. Once aligned, tighten top jam nut. NOTICE 1) You do not need to hold bottom nut to tighten top. Once aligned, top nut is tightening nut. 2) When adjusting, ensure bottom jam nut is contacting seat frame.

  • Page 15: Pendant (Controller)

    PENDANT (CONTROLLER) PENDANT IS NOT INTENDED FOR PATIENT’S USE To prevent damage, pendant can be stored at various locations on the chair when not in use. ENSURE AREA IS CLEAR OF OBSTRUCTIONS PRIOR TO PENDANT USE To prevent property damage or injury to patient, survey area for possible obstructions prior to pendant use.

  • Page 16: Patient Ingress / Egress

    PATIENT INGRESS / EGRESS PATIENT SHOULD NEVER BE PERMITTED TO ENTER / EXIT FROM ENDS OF STRETCHER- CHAIR WHEN IN AN UPRIGHT, PARTIALLY, OR TOTALLY RECLINED POSITION. EXCESSIVE WEIGHT ON ENDS COULD CAUSE CHAIR TO TILT, RESULTING IN POSSIBLE PATIENT INJURY. ...

  • Page 17: Push Bar Operation

    PUSH BAR OPERATION LOWERING PUSH BAR Grasp push bar handle while pulling out red release knob. Lower push bar into “down” position. RAISING PUSH BAR Lift push bar handle until it is in “up” position. Red release knob will engage (lock) automatically. HEAD EXTENSION REMOVAL / INSTALLATION Do not push chair using head extension.

  • Page 18: Headrest Operation

    HEADREST OPERATION TO ENSURE PATIENT SAFETY WHEN CHAIR IS OCCUPIED, BE PREPARED TO SUPPORT HEADREST DURING ADJUSTMENT. During adjustment, use at least one hand to support headrest while other hand operates one of two red handles. For best control, operate one handle at a time, while supporting headrest with both hands. HEADREST ADJUSTMENT ...

  • Page 19: Options

    OPTIONS “W” OPTION: WIDE WIDTH For “W” option, patient surface width is 28”. Standard width is 24”. “T” OPTION: TALL HEIGHT For “T” option, chair height travel is 16”. Standard travel is 8”. Document No.: OM TMM5 SERIES Revision: V Page 19 of 30...

  • Page 20: L" Option: Low Height

    “L” OPTION: LOW HEIGHT For “L” option, chair height is 23.5” Standard height is 25”. Chair height travel is the same as Standard and “T” Option. To prevent chair damage, ensure ground clearance is at least 1.75” when driving chair up a ramp or over a bump.

  • Page 21: E" Option: Export

    “E” OPTION: EXPORT “E” option designates chair was shipped with power cord specific to receiving country. “A” option power cord is directly attached to chair. “B” option power cord is attached to battery charger (# TMA57-15). Power cords depicted in image may not match power cord shipped with your chair.

  • Page 22: B" Option: Battery Pack

    “B” OPTION: BATTERY PACK REMOVING BATTERY PACK FROM CHAIR Grasp integrated handle on battery pack and lift up until cam locks disengage. Pull battery away from mounting bracket. INSTALLING BATTERY PACK ONTO CHAIR Place two round, cam locks on back of battery into square openings of mounting bracket.

  • Page 23: A" Option: Ac Power (For On-Board Batteries And Charger)

    “A” OPTION: AC POWER (for on-board batteries and charger) AC power cord for charging batteries is attached to chair base, and may be stowed by wrapping around storage bracket. To charge on-board batteries: 1. Insert AC plug into wall outlet. To prevent insufficient power, plug chair in to charge batteries overnight (i.e.

  • Page 24: Support Leg Operation

    SUPPORT LEG OPERATION  Using support leg increases stability of back section and headrest.  To prevent chair damage, the back and tilt motors are disengaged while the support leg is in the locked position. If you need to adjust the back/seat angle return the support leg lever to the “unlocked” position, adjust the back/seat, and then re-lock the support leg lever.
  • Page 25 ADJUST CHAIR POSITION While the support leg is locked the seat height and leg position can be adjusted. UNLOCK SUPPORT LEG Return chair to normal function by moving the locking lever to the “unlocked” position by pulling the lever towards the bottom of the back section and then pushing in.

  • Page 26: Switch Schematic

    SWITCH SCHEMATIC ALL EXCESS WIRE IS PLACED IN FRONT OF CONTROL BOX GROUND WIRE ATTACHES TO GROUND POST (“A” OPTION ONLY) BATTERY CORD PLUGS INTO PORT #13 COLUMN PLUG (TMM5) OR PLUGS (TMM5-T) PLUG INTO PHONO TO DIN ADAPTER PLUGS THEN PLUG INTO PORTS #1 (AND PORT #2 FOR TMM5-T) BACK SECTION ACTUATOR –...

  • Page 27: Cleaning Instructions

    CLEANING INSTRUCTIONS STEAM AND/OR PRESSURE CLEANING CHAIR WILL VOID WARRANTY CLEANING COMPONENT FREQUENCY PROCEDURE COMMENT AGENT Facility approved As required/in Wipe with damp All Rails and Painted detergents, Check for chipped accordance with cloth and allow to Metal disinfectants & paint/chrome facility policies air dry...
  • Page 28 Upholstery Care & Cleaning Instructions Proper care is essential in ensuring the durability and reliability of TransMotion Medical upholstery. In general, all products should be: 1. Cleaned 2. Disinfected (in accordance with facility policy) 3. Rinsed 4. Allowed to air dry It is important to note that the terms “disinfecting”...

  • Page 29: Pad Removal Instructions

    PAD REMOVAL INSTRUCTIONS When removing head pillow, remove from bottom When removing cushions, pull laterally. Do not pull and pull up (as shown above). Do not pull from top to bottom. laterally. PREVENTIVE MAINTENANCE To ensure proper operation and extend the chair’s life, it must be maintained on a regular basis as shown below. COMPONENT FREQUENCY PROCEDURE...

  • Page 30: Service Information

    SERVICE INFORMATION PROPERLY DISPOSE OF BATTERIES BEING REPLACED DURING SERVICING  Battery posts, terminals, and related components contain lead and lead compounds, which are known by the state of California to cause cancer or other reproductive harm. Wash hands thoroughly after handling or servicing.
