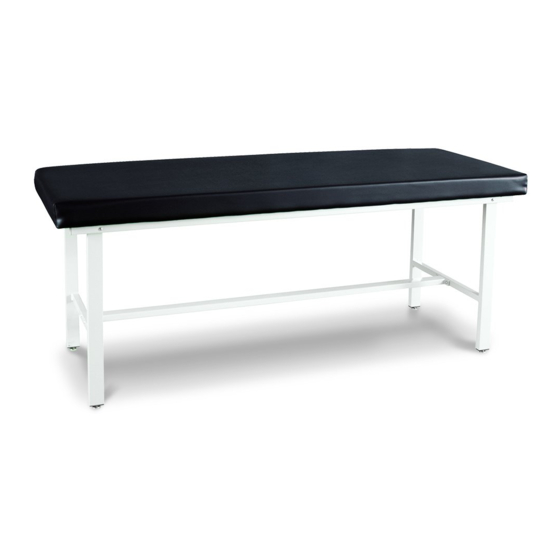

PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions, contact Winco Customer Service at (800) 237-3377
Winco assumes no responsibility for damage or injury caused by improper assembly,
1.
READ AND FOLLOW ALL DIRECTIONS.
2.
NEVER stand on table or INJURY MAY OCCUR.
3.
NEVER allow user to sleep unattended on table or INJURY MAY OCCUR.
4.
NEVER leave an unconscious user unattended on table or INJURY MAY OCCUR.
5.
DO NOT use table for transporting user in or with ANY type of vehicle or trailer. Winco tables have not been tested
or approved for use by an occupant in any type of vehicle or trailer.
6.
NEVER leave an infant or child unattended on table or INJURY MAY OCCUR.
7.
DO NOT put hands, feet or clothing into any openings when changing positions on table. Attendant MUST confirm
that user's hands and feet are safe while changing table positions or INJURY MAY RESULT.
8.
Periodically, recheck tightness of all nuts, bolts, and screws.
9.
USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
10. NEVER EXCEED the recommended weight capacity of 400 lbs. (181.4 kg).
11. SAVE THESE INSTRUCTIONS for future reference and training.
Tools needed:
•
Phillips-head screwdriver
•
7/16" wrench (multiple size wrench included)
Scissors or box cutter
•
•
If using powered tools, always start hardware together by hand first and wear safety goggles
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY
SEE "Parts Reference" (pg.3) for visual reference during assembly.
1.
After checking your product for any shipping damage, table needs to be positioned upside-down on cardboard
or protective surface. Remove all packing material and hardware that was secured for shipping. Cut tape on
corners of box so that cardboard will lay flat while you assemble table.
You will find two Table Legs, in-between and attached to the Table Frame Rails. Pivot up the Table Legs
2.
and install one (1) ¼-20 x 2 ½ machine screw through the outer, empty hole of the Table Frame Rails,
followed by hand threading (1) ¼-20 hex lock nut onto the screw, connecting each Table Leg to the frame.
NOTE: Each Table Leg has an Upper Leg Brace that need to align with two threaded holes in the wood
of the Upholstered Top.
3.
Install (4) ¼-20 x 1-½" screws through (2) holes in each upper brace of the Table Leg, and into (2) threaded
holes (each end) in the wood of the Upholstered Top.
NOTE: Do not fully tighten at this time.
006060 Rev. 02
before attempting to use this product; otherwise injury may occur.
installation, use, or maintenance of these products.
8500-8510 Weight Capacity = 400 lbs. (181.4 kg.)
Date: 03/04/20
CUSTOMER INSTRUCTIONS
Page 1 of 4
NCG
Advertisement
Table of Contents
Related Manuals for Winco 8500
Summary of Contents for Winco 8500
- Page 1 NEVER leave an unconscious user unattended on table or INJURY MAY OCCUR. DO NOT use table for transporting user in or with ANY type of vehicle or trailer. Winco tables have not been tested or approved for use by an occupant in any type of vehicle or trailer.
- Page 2 Carefully position shelf in place on adhesive. Vinyl Strap Adjustment – Should the vinyl strap on your Winco table need to be adjusted, unscrew the screw that currently holds either side of it in place. Pierce another hole in the strap to give desired tension and re-insert screw.
- Page 3 GENERAL CARE AND CLEANING: Periodically inspect tightness of all screws, bolts, and nuts. Winco furnishings are built to provide durable reliable service when properly cared for. In general, all our products should be cleaned, rinsed, and allowed to air dry. It is important to note that disinfecting a product is not the same as cleaning the product.
- Page 4 Page 4 of 4 Design, appearance, parts, & construction are subject to change without notice 006060 Rev. 02 Date: 03/04/20...
