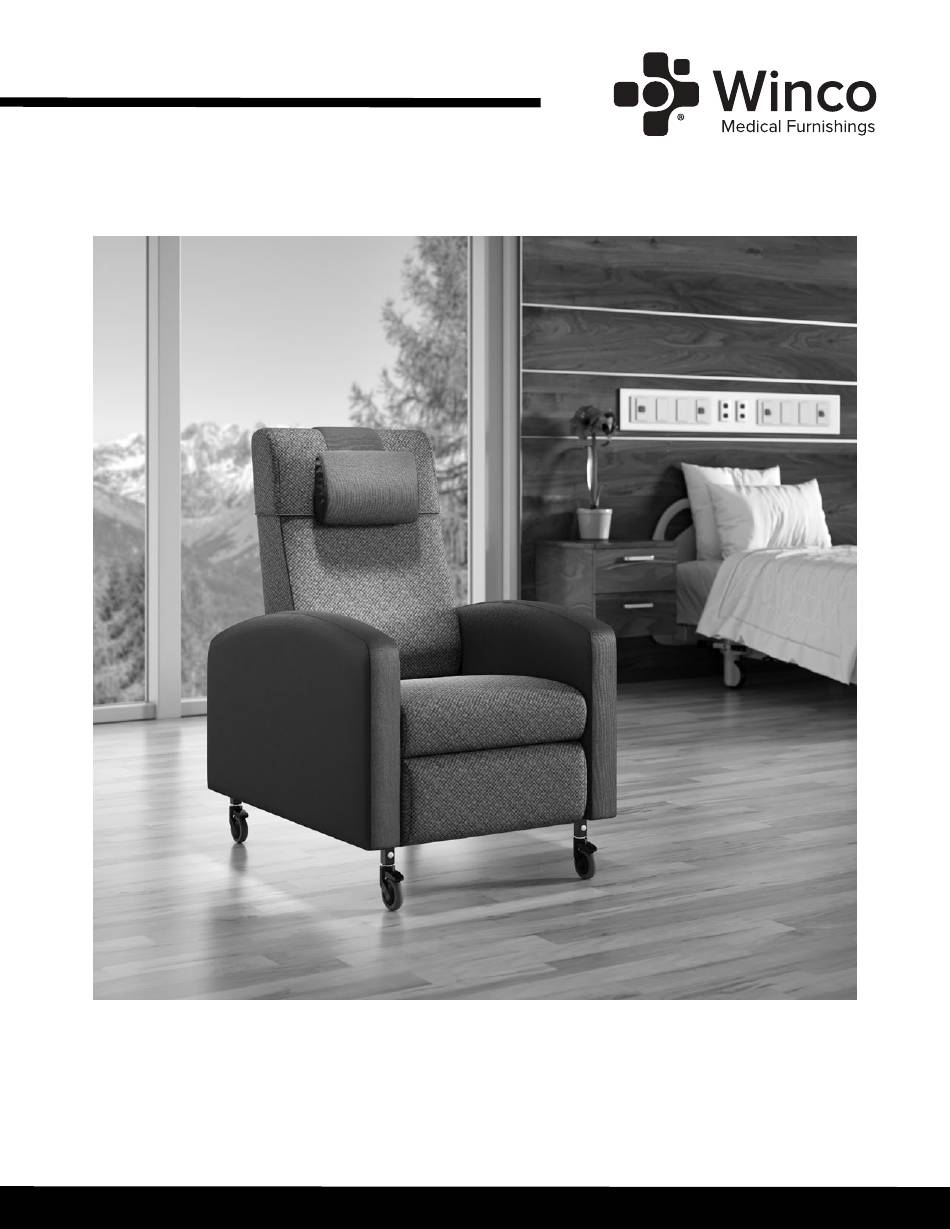

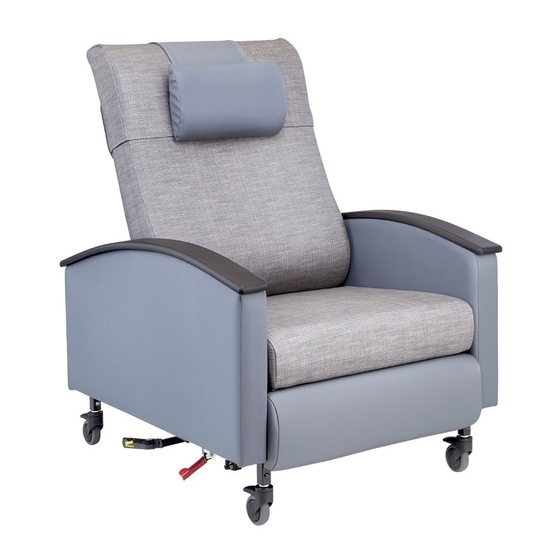

VERŌ CARE CLINER
OWNERS OPERATING AND MAINTENANCE MANUAL
IMPORTANT! DO NOT DISCARD THIS MANUAL!
KEEP THIS MANUAL FOR FUTURE REFERENCE AND TRAINING!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vero Care Cliner and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winco Vero Care Cliner

Summary of Contents for Winco Vero Care Cliner

  • Page 1 VERŌ CARE CLINER OWNERS OPERATING AND MAINTENANCE MANUAL IMPORTANT! DO NOT DISCARD THIS MANUAL! KEEP THIS MANUAL FOR FUTURE REFERENCE AND TRAINING!
  • Page 3 IF YOU HAVE ANY QUESTIONS OR CONCERNS, PLEASE CONTACT WINCO MFG., LLC. Winco assumes no responsibility for damage or injury caused by improper assembly, installation, use, or maintenance of these products. No part of this manual may be duplicated in any form without the prior consent of Winco Mfg., LLC.

  • Page 4: Table Of Contents

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER TABLE OF CONTENTS INTENDED USE STATEMENT ................................5 TRANSPORTATION, STORAGE, HANDLING & DISPOSAL ......................5 PREPARATION: BEFORE YOU BEGIN ..............................5 IMPORTANT SAFETY INFORMATION ..............................6 FOR PRODUCTS WITH POWERED OPTIONS (HEAT, MASSAGE, ETC.) ......................... 6 FOR ALL CONFIGURATIONS (WITH OR WITHOUT HEAT, MASSAGE, ETC.).........................

  • Page 5: Intended Use Statement

    • The product should be stored in an environment that will inhibit rust/mold formation. • Winco Mfg., LLC recommends not leaving the product in the factory packing in excess of three (3) months. • The product should always be handled in a manner consistent with the user instructions and in a manner to prevent contamination after each use.

  • Page 6: Important Safety Information

    DO NOT MODIFY THE PLUG IN ANY WAY. No adapter should be used with this product. 14. For an added level of safety; Winco recommends the use of a 120 volt GFCI (ground fault circuit interrupter) outlet.
  • Page 7 OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER IMPORTANT: PLEASE READ For Heat & Heat and Massage Chairs: This equipment is marked with the industry recognized symbol indicating it is a “Class II Double-Insulated” device as defined by IEC 60601-1. As such, it does NOT require a three conductor power cord (i.e.

  • Page 8: For All Configurations (With Or Without Heat, Massage, Etc.)

    ONLY when moving the chair. 13. DO NOT use recliner for transporting in or with ANY type of vehicle or trailer. Winco recliners have not been tested or approved for use by an occupant in any type of vehicle or trailer.

  • Page 9: Assembly Instructions

    (B). Keep hands clear of connection points or injury may occur. • Winco recommends two (2) people be used to complete Step 3 A and B. • Be careful not to tear or puncture vinyl. REAR VIEW OF CHAIR Page 9 of 32 Document No.: 006344...
  • Page 10 OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER BACK ASSEMBLY - CONTINUED 4. Slide the back onto the recline mechanism until the middle hole of the mounting bracket (A) is aligned with the middle hole of the recline mechanism (B). It is recommended that two people be used for this step.

  • Page 11: Armrest Cover Installation (Optional Accessory)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER ARMREST COVER INSTALLATION (OPTIONAL ACCESSORY) NOTE: Cover designs vary based on chair options (i.e. tables, heat/massage, etc.) CHAIRS WITH SIDE TABLES Raise the side table by grasping the center of the table and gently lift into place. 2.
  • Page 12 OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER ARMREST COVER INSTALLATION - CONTINUED CHAIRS WITH PIVOT TABLES Remove the adjustment knob and the pivot table completely. You MUST remove the knob. 2. Pull the arm rest cover down over the chair arm. Ensure the pivot table bracket is inserted through the hole in the arm rest cover.

  • Page 13: Operating Instructions: Attendant

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER OPERATING INSTRUCTIONS: ATTENDANT CASTER OPERATION: LOCK / UNLOCK Multiple caster / foot types are available for this recliner: 5" Casters (rigid, total-lock), 3" Casters (wheel- lock) and Pedestal Feet. 5" CASTERS: RIGID, TOTAL-LOCK The front two casters are rigid casters.

  • Page 14: Foot Plate Operation (Optional Feature)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER CASTER OPERATION - CONTINUED PEDESTAL FEET Pedestal feet are designed for chairs that are intended to remain in a stationary position. FOOT PLATE OPERATION (OPTIONAL FEATURE) • Foot plate MUST be used with staff assistance. •...

  • Page 15: Recline Chair (Attendant Position)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER RECLINE CHAIR (ATTENDANT POSITION) Attendant should be positioned on the RIGHT or LEFT side of chair. MANUAL ADJUSTMENT CHAIRS While occupant is seated in the chair, place one hand on the arm for support and push back on the back to recline.

  • Page 16: Return Chair To Upright Position (Attendant Position)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER RETURN CHAIR TO UPRIGHT POSITION (ATTENDANT POSITION) Attendant should be positioned on the RIGHT or LEFT side of chair. MANUAL ADJUSTMENT CHAIRS Pull up on the back to return to upright position. 2.

  • Page 17: Placing Chair In Trendelenburg (Attendant Only)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER Trendelenburg is a medical patient positioning treatment. It should ONLY be used by trained personnel AND where indicated by patient condition. IMPORTANT PLACING CHAIR IN TRENDELENBURG (ATTENDANT ONLY) Attendant should be positioned on the RIGHT or LEFT side of chair. While occupant is in the chair, place the chair into the fully reclined position.

  • Page 18: Swing-Arm Operation (Attendant Only)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER SWING-ARM OPERATION (ATTENDANT ONLY) Attendant should be positioned on the RIGHT or LEFT side of chair. TO OPEN: Press down on red latch handle to unlock Swing-Arm. • DO NOT leave occupant unattended with either or both swing- arms unlatched.

  • Page 19: Transferring Patient To Chair (Swing-Arm Only)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER TRANSFERRING PATIENT TO CHAIR (SWING-ARM ONLY) Attendant should be positioned on the RIGHT or LEFT side of chair. Always lock the casters when the patient enters or exits the chair! Lock all four casters. 2.

  • Page 20: Side Table Operation (Optional Feature)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER SIDE TABLE OPERATION (OPTIONAL FEATURE) STANDARD SIDE TABLES TO RAISE TABLE: Grasp center of table and gently raise into place. Table will automatically lock into place when released. 2. TO LOWER TABLE: Grasp table at the center or on both sides, raise and pivot down in a single movement.

  • Page 21: Pivot Table Operation (Optional Feature)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER PIVOT TABLE OPERATION (OPTIONAL FEATURE) POSITION TABLE Loosen the adjustment knob (A) and swing away or place in the "lap" position. 2. Tighten adjustment knob (A) to secure position. REMOVE TABLE 3. Loosen the adjustment knob (A) two full turns and lift up on pivot- table.

  • Page 22: Operating Instructions: Occupant

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER OPERATING INSTRUCTIONS: OCCUPANT RECLINE WHILE IN THE SEATED POSITION MANUAL ADJUSTMENT CHAIRS While seated in the chair, place hands on each chair arm and push back while applying pressure to the back with shoulders to activate the mechanism into the desired position. INFINITE GAS SPRING ADJUSTMENT To operate the infinite back positioning, pull back on the recline lever and adjust the upholstered back angle by pushing back with your body until desired angle has been reached.

  • Page 23: Returning To Seated Position

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER RETURNING TO SEATED POSITION MANUAL ADJUSTMENT CHAIRS To return the back (B) to the full upright position, grasp chair arms (A) with both hands and pull body forward. 2. Press down on the leg rest (C) with legs/feet until it is stored. Make sure all objects, hands and feet are clear of all mechanisms before lowering leg rest.

  • Page 24: Heat / Heat & Massage Operation (Optional Feature)

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER HEAT / HEAT & MASSAGE OPERATION (OPTIONAL FEATURE) Control is located on the inside of right arm of chair. (Right is determined - as if sitting in the chair) HEAT *Heating elements are located in the seat & the seat-back of chair To operate, push HEAT button - See indicator light on switch 3 Lights = High Heat / Bright Light 2 Lights = Medium Heat / Medium Light...

  • Page 25: Troubleshooting

    If switch displays a flashing light, disconnect from wall, check all accessible wire connectors under chair for possible loose connections, then re-plug into wall and test again. • If system still does not work contact Winco customer service: 1-800-237-3377. CORD STORAGE: For models with Heat (HT) or Heat & Massage (HM)

  • Page 26: General Maintenance

    (If equipped) Periodically position the chair back into full recline position to keep the gas cylinder lubricated. Winco Mfg., LLC’s full-line of products are built to provide durability and reliability when properly cared for. In general all of our products should be: Cleaned 2.
  • Page 27 Please refer to any instruction labels or tags that may have been included with your product for complete care and cleaning instructions. Retain information on the label or tag for future use. Additional information for cleaning products with Winco’s selection of vinyls can be found on our suppliers website at: https://spradlingvinyl.com/resource-library.

  • Page 28: Specifications

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER ALWAYS REFER TO THE WEIGHT CAPACITY LABEL ON YOUR CHAIR. IN ALL CASES THE LABELING ON THE CHAIR AT THE TIME OF DELIVERY INDICATES THE CORRECT RATING FOR YOUR CHAIR - WEIGHT RATING SHOULD NOT BE EXCEEDED! SPECIFICATIONS 5X / 5Y / 6X / 6Y: Verō...

  • Page 29: Verō Care Cliner Options

    OWNERS OPERATING & MAINTENANCE MANUAL VERŌ CARE CLINER VERŌ CARE CLINER OPTIONS Heat / Heat & Massage Premium Side Table Standard Side Table HM ....... Heat & Massage Available on Left, Right or Both Available on Left, Right or HT ........Heat ONLY Sides Both Sides Factory Installed Only...

  • Page 30: Warranty Information

    Limited One Year Complete Product Warranty: Winco Mfg., LLC warrants the complete product for one (1) year. At Winco Mfg., LLC’s sole discretion, it may repair or replace any components that are found to be defective during the first year after shipment from the Winco facilities. Winco Mfg., LLC, shall not be liable for any labor, or any other costs incurred as a result of or in conjunction with a warranty claim.
  • Page 31 We reserve the right to add or delete products at any time and without prior notice. Always provide your product's specific serial number when ordering any replacement parts. When in doubt, contact a Winco representative (352-854-2929 or 1-800-237-3377) for further information.
  • Page 32 Document No.: 006344 Owners Operating and Maintenance Manual Revision: I Copyright © 2019 Winco Mfg., LLC CONTACT US To arrange a demonstration or to speak with one of our associates, please feel free to contact us at: 800-237-3377 | WincoMfg.com | 5516 SW 1st Lane, Ocala, FL 34474 | Info@WincoMfg.com...
