Winco 8550 Customer Instructions

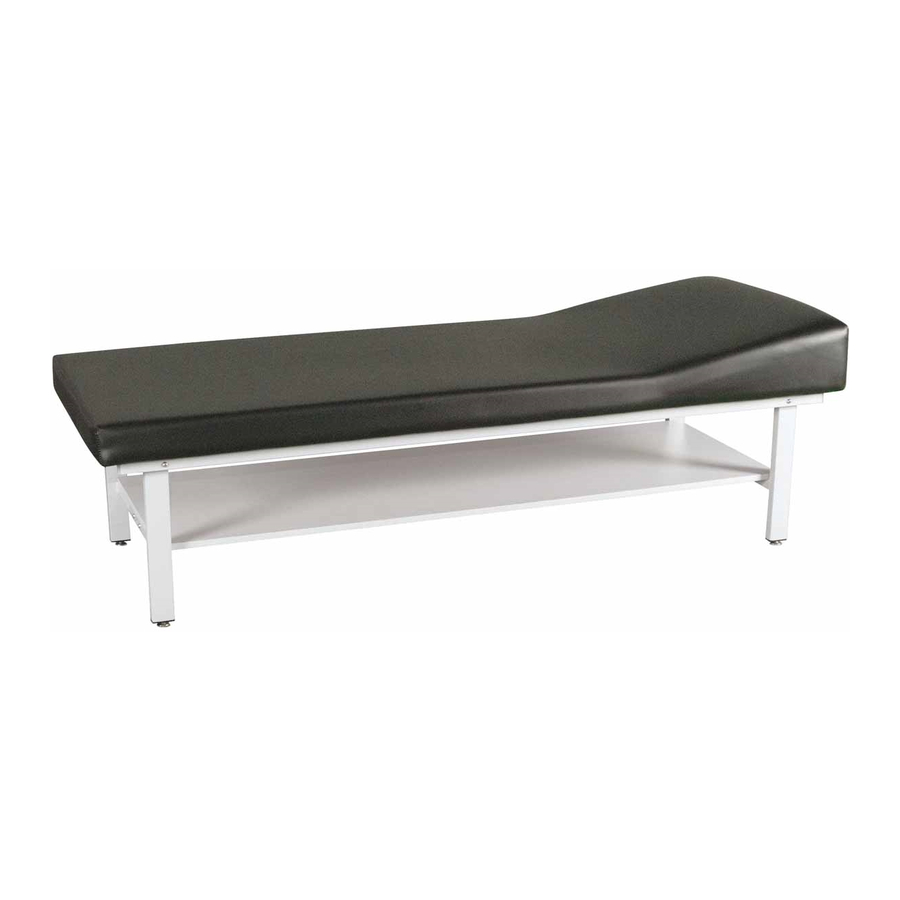

Recovery Couch
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions contact Winco Customer Service at (800) 237-3377
Winco assumes no responsibility for damage or injury caused by improper assembly,
1.

READ AND FOLLOW ALL DIRECTIONS.

2. NEVER stand on table or INJURY MAY OCCUR.
3. NEVER allow user to sleep unattended on table or INJURY MAY OCCUR.
4. NEVER leave an unconscious user unattended on table or INJURY MAY OCCUR.
5. DO NOT use table for transporting user in or with ANY type of vehicle or trailer. Winco tables have not been tested
or approved for use by an occupant in any type of vehicle or trailer.
6. NEVER leave an infant or child unattended on table or INJURY MAY OCCUR.
7. Periodically recheck tightness of all nuts, bolts, and screws.
8. DO NOT put hands, feet or clothing into any openings when changing positions on table. Attendant MUST confirm
that user's hands and feet are safe while changing table positions or INJURY MAY RESULT.
9. USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
10. NEVER EXCEED the recommended weight capacity of 400 lbs. (181.4 kg).
11. SAVE THESE INSTRUCTIONS for future reference and training.

Tools needed:

• Phillips-head screwdriver
• 7/16" wrench (multiple size wrench included)
Scissors or box cutter
•
Cardboard shipping container (stays under table during assembly to protect upholstery)
•
If using powered tools, always start hardware together by hand first and wear safety goggles.
•
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY
1. After checking your product for any shipping damage, table needs to be positioned upside-down on cardboard or
protective surface. Remove all packing material and hardware that was secured for shipping. Cut tape on corners of
box so that cardboard will lay flat while you assemble table.
2. You will find two Table Legs, in-between and attached to the Table Frame Rails. Pivot up the Table Legs and install
one (1) ¼-20 x 2 ½ machine screw through the outer, empty hole of the Table Frame Rails, followed by hand
threading (1) ¼-20 hex lock nut onto the screw, connecting each Table Leg to the frame.
NOTE: The table legs have braces that need to align with two threaded holes in the wood
of the Upholstered Top.
3. Install (4) ¼-20 x 1-½" screws through (2) holes in each Upper Leg Brace of the Table Legs, and into (2) threaded
holes (each end) in the wood of the Upholstered Top.
NOTE: Do not fully tighten at this time.
4. Place (4) ¼-20 x 1-½" carriage bolts into the (4) holes through the Lower Leg Brace of the Table Legs.
Heads of screws should face the ends of table, for better appearance.
006070 Rev. V
8550
before attempting to use this product; otherwise injury may occur.
installation, use, or maintenance of these products.
8550 Weight Capacity = 400 lbs. (181.4 kg.)
SEE "Parts Reference" (pg.3) for visual reference during assembly.
CUSTOMER INSTRUCTIONS
Date 04/06/20
Page 1 of 4
NCG
