4220

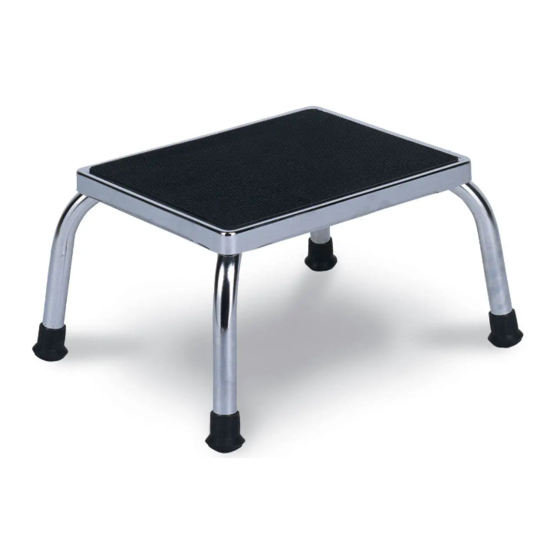

Chrome Steel Footstool
4230
Chrome Steel Footstool w/Handle
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions contact your dealer or Winco customer support, (800) 237-3377
Winco assumes no responsibility for damage or injury caused by improper assembly,
1.
READ AND FOLLOW ALL DIRECTIONS.
2.
NEVER place stool on a cart, table, stand or other objects; Stool could fall and INJURY MAY OCCUR.
3.
DO NOT allow children to play with stool; INJURY MAY OCCUR.
4.
Periodically, recheck tightness of all nuts, bolts and screws.
5.
Stool must ALWAYS be positioned on level surface.
6.
DO NOT use stool in or with ANY type of vehicle or trailer. Winco stools have not been tested or approved for use
by an occupant in any type of vehicle or trailer.
7.
Immediately remove from service; Any stool with broken or missing parts, or other visible damage.
8.
USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
9.
NEVER EXCEED the recommended weight capacity of 300 lbs. (136 kg).
10. SAVE THESE INSTRUCTIONS for future reference and training.
Tools needed:
•
Scissors or box cutter
•
Box-wrench (provided)
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY
After checking your product for any shipping damage, remove all packing material and hardware that was
secured for shipping. Cut tape and/or plastic with scissors, being careful not to damage product.
HANDLE INSTALLATION – Model 4230 ONLY
1. Line up the holes in the handle with holes in the 4230 stool legs and insert
the (4) phillips-head screws.
2. Place (1) nylon lock-nut onto the end of each screw.
3. Tighten all (4) nylon lock-nuts to a snug fit using a phillips-head
screwdriver and a box wrench (provided).
4. The footstool is now ready for use. Please keep safety first, and follow the
guidelines below, during use.
CARE & MAINTENANCE OF YOUR FOOTSTOOL
1. Periodically check all fasteners for tightness.
2. Do not use on uneven, soft surfaces.
3. Do not use in a wet environment
4. Replace worn or cracked crutch tips.
006285
before attempting to use this product; otherwise injury may occur.
installation, use, or maintenance of these products.
4220-4230 Weight Capacity = 300 lbs. (136 kg.)
(FIG.1)
Rev H Date 01-07-14
CUSTOMER INSTRUCTIONS
Page 1 of 4
Screws
&
Lock-nuts
FIG.1
JWC
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winco 4220
Summary of Contents for Winco 4220
- Page 1 Stool must ALWAYS be positioned on level surface. DO NOT use stool in or with ANY type of vehicle or trailer. Winco stools have not been tested or approved for use by an occupant in any type of vehicle or trailer.
- Page 2 Page 2 of 4 Model 4230 Model 4220 Parts List: Qty. Part Number (1) Handrail 480030 (4230 ONLY) (2) Footstool w/ Handrail holes 210423 (4230 ONLY) (3) Crutch Tip (replacements are gray) 701700 (4) ¼-20 Nylon Lock-Nut 566204 (4230 ONLY) (5) ¼-20 x 2”...
- Page 3 Page 3 of 4 Other Quality Winco Medical Furnishings You May Be Interested In: Visit us online at www.wincomfg.com 006285 Rev H Date 01-07-14...
- Page 4 Page 4 of 4 Design, appearance, parts, & construction are subject to change without notice 006285 Rev H Date 01-07-14...
