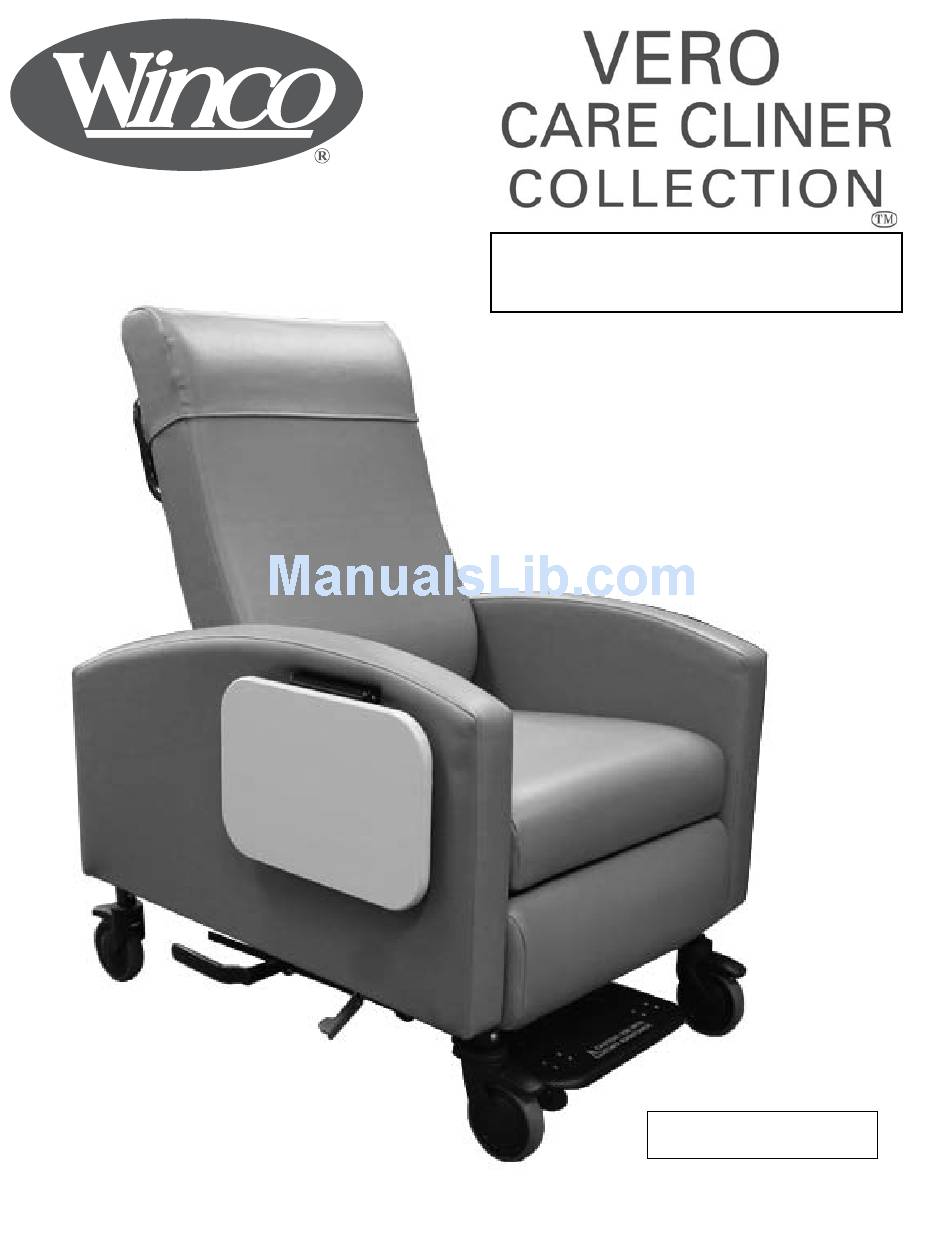

OWNER'S OPERATING &
MAINTENANCE MANUAL

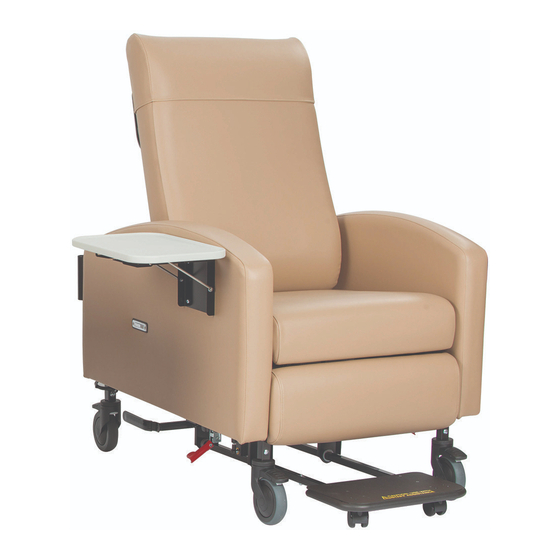

Model 6Y48-39-00-00-00-D6
Shown
PLEASE DO NOT DISCARD THIS MANUAL! KEEP FOR FUTURE REFERENCE AND TRAINING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vero and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Winco vero

  • Page 1 OWNER’S OPERATING & MAINTENANCE MANUAL Model 6Y48-39-00-00-00-D6 Shown PLEASE DO NOT DISCARD THIS MANUAL! KEEP FOR FUTURE REFERENCE AND TRAINING...
  • Page 2: Table Of Contents

    INTENDED USE STATEMENT......................3 TRANSPORTATION, STORAGE, HANDLING AND DISPOSAL INSTRUCTIONS....3 IMPORTANT SAFETY INFORMATION..................3-6 ASSEMBLY INSTRUCTIONS............…..........7-8 ATTENDANT OPERATING INSTRUCTIONS............…....9-14 OCCUPANT OPERATING INSTRUCTIONS................15-16 GENERAL MAINTENANCE..........……..........17 SPECIFICATIONS........................18 VERO CARE CLINER OPTIONS....................19-20 CONTACT & WARRANTY INFORMATION............…..BACK COVER Copyright 2016, WINCO MFG., LLC...
  • Page 3: Intended Use Statement

    Intended Use: Vero is a recliner for use in medical settings. It is designed to provide comfort for patients seated up to 8 hours at a time while receiving treatments such as Dialysis, Infusion or recovery from surgical procedures where positional adjustments are beneficial.
  • Page 4 DO NOT MODIFY THE PLUG OR USE AN ADAPTER WITH THIS PRODUCT. 14. For an added level of safety; Winco recommends the use of a 120 volt GFCI (ground fault circuit interrupter) out- let.
  • Page 5 “Class II Double-Insulated” devices. ISOLATION DIAGRAM FOR HEAT & MASSAGE SYSTEM Area Insulation Type Basic Operational Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Double Insulated/Reinforced Inlet FE pin only connects to inlet & pad Copyright 2016, WINCO MFG., LLC...
  • Page 6 7. DO NOT use the recliner if the Trendelenburg Damper/Gas Spring is removed or damaged. 8. DO NOT use recliner for transporting in or with ANY type of vehicle or trailer. Winco recliners have not been tested or approved for use by an occupant in any type of vehicle or trailer.
  • Page 7: Assembly Instructions

    PREPARATION: 1. Carefully examine your product for any damage. Inspect all components. IF DAMAGE IS EVIDENT, REFUSE SHIPMENT, & CONTACT FREIGHT CARRIER OR WINCO IMMEDIATELY. 2. Remove all packaging material that was used for shipping. 3. Carefully remove the carton from the product.
  • Page 8 6. Install knobs (tethered to back) and fully tighten to a secure fit. IMPORTANT: • Test to ensure the back has been properly installed by pulling up on the back. The back should remain securely in place. Copyright 2016, WINCO MFG., LLC...
  • Page 9: Attendant Operating Instructions

    WHEN TRANSPORTING CHAIR!! Pedestal Feet: • Pedestal feet are designed for chairs that are intended to remain in a stationary position. Note: The Foot Plate option is not available with Pedestal Feet or 3" Black Casters. Copyright 2016, WINCO MFG., LLC...
  • Page 10 NOTE: The recline lever is NOT required to return legrest to its stored position. WARNING: • Attendant should NOT use their foot to return the legrest to it's stored position. Damage to mechanism may occur. Copyright 2016, WINCO MFG., LLC...
  • Page 11 Attendant should be positioned on the RIGHT or LEFT side of chair 1. To return chair to the recline position, push down on seat (recommend- ed) or lift up on chair back. NOTE: Pushing down on the seat or legrest (B) is recommended for maximum leverage. Copyright 2016, WINCO MFG., LLC...
  • Page 12 Do NOT recline chair with either/both swing-arms in the 180° position. • Ensure that both swing-arms are in the closed (latched) posi- tion at all times, unless the patient is being transferred or directly supervised. Copyright 2016, WINCO MFG., LLC...
  • Page 13 IMPORTANT: • Footplate MUST be used with staff assistance. • The footplate for the VERO model is rated for a MAXIMUM weight capacity of 350 lbs. (158.8 kg.) • The footplate for the VERO XL model is rated for a MAXIMUM weight capacity of 500 lbs (226.8 kg.)
  • Page 14: Attendant Operating Instructions

    3. Loosen the adjustment knob (A) 2 full turns and lift up on pivot-table. WARNING: • DO NOT lean or sit on any Vero tables. • DO NOT use table for support or assistance when exiting or entering the chair.
  • Page 15: Occupant Operating Instructions

    2. Press down on the legrest (A) with legs/feet until it is stored. NOTE: Use of the recline lever is NOT required to return the legrest to its stored position. (WARNING: Make sure all objects, hands and feet are clear mechanims before lowering legrest!) Copyright 2016, WINCO MFG., LLC...
  • Page 16 If switch displays a flashing light; Disconnect from wall, check all accessible wire connectors under chair for possible loose connections, then re-plug into wall and test again. • If system still does not work contact Winco customer service: 1-800-237-3377. CORD STORAGE: (Models with Heat-HT or Heat & Massage-HM) To prevent tripping on cord, damage to cord, damage to recliner, power cord should be coiled and stored in the "Hook &...
  • Page 17: General Maintenance

    GAS CYLINDER OPERATION: DO NOT ATTEMPT TO ADJUST CYLINDER! The Gas Cylinder is preset during manufacturing and should not be adjusted without contacting Winco Customer Service. • Adjusting the cylinder will not make the mechanism operate easier or more smoothly.
  • Page 18: Specifications

    VERO CARE CLINER SPECIFICATIONS Model 6Y48-39-00-00-00-D6 Shown VERO CARE CLINER - Specifications VERO XL CARE CLINER - Specifications Seat Height ......21" Seat Height ......21" to Foot Plate....18" to Foot Plate....18" Seat Width (arm to arm)..22.5" Seat Width (arm to arm)..26.5"...
  • Page 19: Vero Care Cliner Options

    (NOT available with Wood Finish) (Available on Left, Right or Both Sides) Headrest Cover Push Handle Foot Plate Option on Non-Trendelenburg Models Available for Vero and Vero XL Models Available with 5" Casters Models Only Copyright 2016, WINCO MFG., LLC...
  • Page 20: Vero Care Cliner Options

    VERO CARE CLINER OPTIONS Pedestal Feet 3" Caster Urethane Arm Not Compatible with the Foot Plate Option Not Compatible with the Foot Plate Option Arm Rest Covers Left and right available for all table and option confi gurations. Copyright 2016, WINCO MFG., LLC...
  • Page 21 VERO CARE CLINER ARMREST COVER INSTRUCTION Installing Armrest Covers With Side Tables: 1. Raise the side table by grasping the center of the table and gently lift into place. 2. Locate large square opening in cover and position over the side table. Stretch the opening over the side table and slide over side table.
  • Page 22: Limited Warranty

    TERMS Winco Mfg., LLC. warrants this product to be free of manufacturer’s defects in material and workmanship, provided that the product is used ac- cording to normal operating conditions and proper maintenance intended by manufacturer. This warranty is available only to the original retail purchaser, is non-transferable and commences on the date of retail sale;...
