Winco 557 Series Instructions Manual

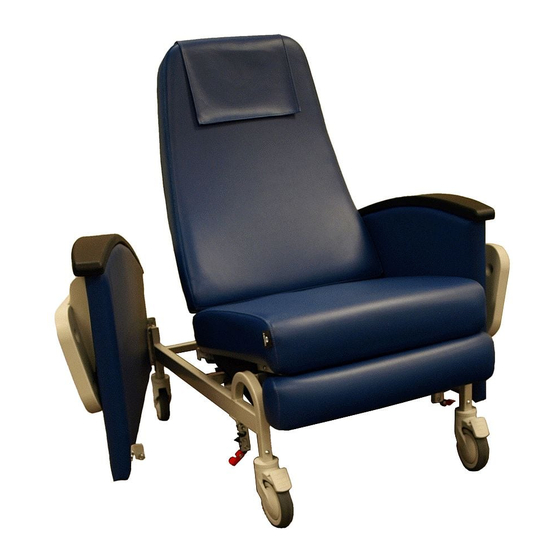

Comfort Care & Cozy Comfort, Premier Recliner
XL Cozy Comfort & XL Cozy Comfort Swing-Arm, Premier Recliner
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions contact your dealer or Winco customer support, (800) 237-3377
Winco assumes no responsibility for damage or injury caused by the improper assembly, installation
or use of these products; or during assembly or maintenance of these products.
1.

READ AND FOLLOW ALL DIRECTIONS.

2. DO NOT put hands, feet or clothing into any openings when changing positions on recliner. Attendant MUST
confirm that users hands and feet are safe while changing recliner positions or INJURY MAY RESULT.
3. Stay clear of the recline mechanisms.
4. Remove or move chair accessories out of the way of patients legs (ie. over-lap table & pivot table) when
reclining/changing position of patient.
5. Periodically, recheck tightness of all nuts, bolts and screws.
6. NEVER use the side-tables or chair arms or backrest or legrest as a seat; SERIOUS INJURY MAY OCCUR.
7. Chair MUST be in full upright position with casters locked when a patient enters or exits chair.
8. 5570 ONLY - NEVER allow a patient to exit a reclined chair with position-lock engaged or SERIOUS INJURY MAY
OCCUR
9. LOCK casters at all times when chair is stationary. UNLOCK casters when moving/transporting chair.
10. Chair must ALWAYS be positioned on a level surface.
11. DO NOT use recliner for Transporting in or with ANY type of vehicle or trailer. Winco recliners have not been
tested or approved for use by an occupant in any type of vehicle or trailer.
12. Immediately remove from service; Any recliner with broken recline mechanisms, torn upholstery, or other
mechanical or visible damage.
13. USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
14. NEVER EXCEED the recommended weight capacity of 350 lbs. (159 kg.)
15. SAVE THESE INSTRUCTIONS for future reference and training.
In all cases the labeling on the chair at the time of delivery is the correct rating for your chair and that weight rating should not be exceeded.
NO TOOLS REQUIRED FOR ASSEMBLY!
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE PROCEEDING WITH ASSEMBLY

Install the Back:

1. After checking your product for any shipping damage, chair needs to be positioned upright on level surface.
Remove all packing material and hardware that was secured for shipping. Remove tape and plastic. If using
scissors or knife, please be careful not to damage upholstery.
2. Make sure footrest is in closed position & LOCK ALL CASTERS before installing chair back.
3. Remove the (2) Bow Tie Cotter Pins and the (2) Clevis Pins from the lower Back Frame Forks. DO NOT
LOSE THESE PARTS, YOU WILL NEED THEM AGAIN!
4. Using a second person to help; Position the Back Frame Forks over the Seat Frame and align holes.
HINT: If you do not have a helper; Rest the bottom of the Upholstered Back on the rear portion of the Upholstered Seat and
push the Back Assembly slightly forward to help steady the chair back.
006325
557X-558X
567X-5680
before attempting to use this product; otherwise injury may occur.
557X-558X Weight Capacity = 350 lbs. (159 kg)
567X Weight Capacity = 450lbs. (204 kg)
ALWAYS REFER TO THE WEIGHT CAPACITY LABEL ON YOUR CHAIR.
Failure to correctly install clevis pins connecting Back Frame fork holes and Seat Frame
Rail holes, will cause back to operate poorly and may cause injury to the user or damage
the chair and void warranty.
Rev. O Date 02-14-17
CUSTOMER INSTRUCTIONS
Page 1 of 8
SLC
