4300-4350-4400-4450

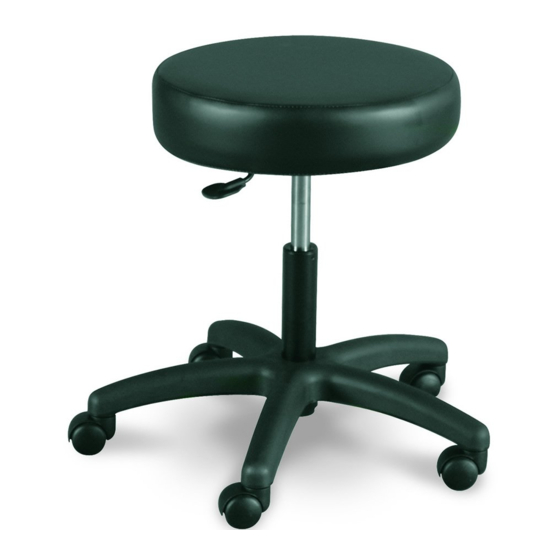

Gas Lift Stools
PLEASE READ AND FAMILIARIZE YOURSELF WITH ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
If you have trouble understanding these instructions contact your dealer or Winco customer support, (800) 237-3377
Winco assumes no responsibility for damage or injury caused by improper assembly,
1.
READ AND FOLLOW ALL DIRECTIONS.
2.
NEVER place stool on a cart, table, stand or other objects; Stool could fall and INJURY MAY OCCUR.
3.
DO NOT allow children to play with stool; Stool has moving parts and INJURY MAY OCCUR.
4.
Periodically, recheck tightness of all nuts, bolts and screws.
5.
Stool must ALWAYS be positioned on level surface.
6.
NEVER stand or ride on stool; Stool not to be used for user transport; INJURY MAY OCCUR.
7.
DO NOT use stool in or with ANY type of vehicle or trailer. Winco stools have not been tested or approved for use
by an occupant in any type of vehicle or trailer.
8.
Immediately remove from service; Any stool with broken or missing parts, torn vinyl, or other visible damage.
9.
USE ONLY WINCO AUTHORIZED REPLACEMENT PARTS.
10. NEVER EXCEED the recommended weight capacity of 250 lbs. (113.4 kg).
11. SAVE THESE INSTRUCTIONS for future reference and training.
4300-4350-4400-4450 Weight Capacity = 250 lbs. (113.4 kg.)
Base Assembly
1. Place the Upholstered Seat on a clean, flat surface, cushion side down.
2. Push the stem of the Gas Cylinder into the Stool Swivel Plate (pre-attached to the Upholstered Seat).
3. Slide the Foot Ring (optional) over the Gas Cylinder, so that the Foot Ring faces the bottom of the
Upholstered Seat.
4. Place the Stool Base over the end of the Gas Cylinder and gently tap it down.
5. Install all (5) Casters into the Stool Base. (The stem of the caster should snap into place)
6. Turn the entire assembly upright on the floor
7. If you have the optional Foot Ring, tighten the Foot Ring Adjusting Knob now.
Back Assembly (models 4350 & 4450 only)
8. Slide the steel Slotted Back Strap into the Stool Swivel Plate.
9. Insert the Back (depth) Adjusting Knob to lock the Slotted Back Strap into place.
0006010
before attempting to use this product; otherwise injury may occur.
installation, use, or maintenance of these products.
Rev R Date 06-26-13
CUSTOMER INSTRUCTIONS
